Amaoe Mi11 Stencil-Original
Enhance Your Repair Efficiency
Designed for professionals and DIY enthusiasts, the Amaoe Mi11 Stencil-Original offers unparalleled precision for screen repair. Whether you’re working on delicate electronic components or handling complex repairs, this stencil ensures accuracy at every step. Amaoe Mi11 Stencil-Original
Original Build for Reliable Results
The Amaoe Mi11 Stencil is crafted from high-quality materials to guarantee longevity and dependable performance. Its original design ensures perfect compatibility with your Mi11, providing seamless application during repair tasks. Amaoe Mi11 Stencil-Original
Perfect for Professionals and Hobbyists
Whether you’re an experienced technician or just starting out, the Amaoe Mi11 Stencil is your reliable partner. Lightweight, durable, and easy to use, it makes screen repair tasks simpler and more efficient, delivering exceptional results every time. Amaoe Mi11 Stencil-Original

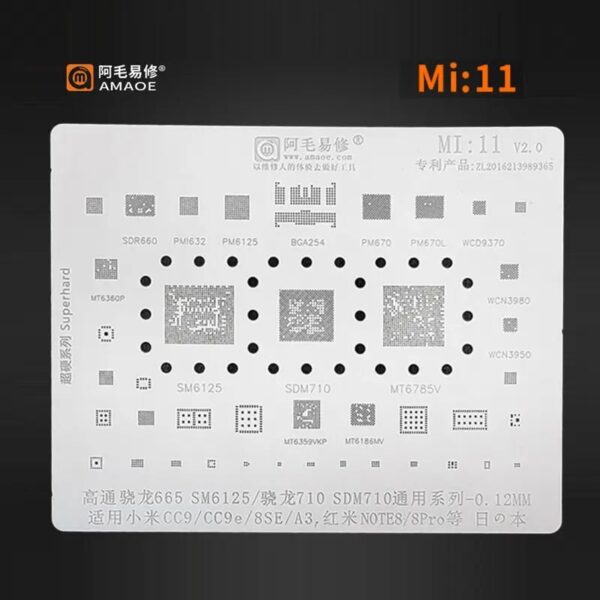

The Amaoe Mi11 BGA Reballing Stencil is a professional-grade repair tool specifically engineered for high-precision soldering and reballing of Xiaomi devices. Known for its “Japanese Steel” construction, it is a staple in the mobile repair industry due to its durability and resistance to high-temperature deformation. Amaoe Mi11 Stencil-Original
Below are the detailed specifications and technical details for the original Amaoe Mi11 stencil.
Amaoe Mi11 Technical Specifications
| Feature | Detailed Specification |
| Brand | Amaoe (Original) |
| Model Number | Mi11 (Mi-11) |
| Product Type | BGA Reballing Stencil / Tin Planting Net |
| Material | High-Quality Japanese Stainless Steel |
| Thickness | $0.12\text{ mm}$ |
| Manufacturing Process | Precision Laser Cutting (CNC) |
| Hole Type | Square Aperture (prevents solder ball sticking) |
| Color | Silver / Grey |
| Heat Resistance | High-temperature resistant (Anti-warping) |
| Dimensions (Approx.) | $100\text{ mm} \times 80\text{ mm}$ (Sheet size) |
| Weight | ~0.02 kg (Net), 0.10 kg (Gross with packaging) |
| Re-usability | Fully Reusable (Professional Grade) |
Supported ICs & Chipsets
The Mi11 stencil is a multi-functional sheet. Instead of being limited to one chip, it features a layout that covers several critical components found in the Xiaomi/Redmi series motherboard:
-
CPUs: Snapdragon 665 (SM6125), SDM710.
-
Power ICs: PMI632, PM6125, PM670, PM670L.
-
Audio & Connectivity: WCD9370 (Audio), WCN3980/WCN3950 (WiFi/BT).
-
Specialized ICs: MT6360P, MT6359VKP, MT6186MV, BGA254 RAM/Storage.
Compatible Device Models
While named “Mi11,” this specific stencil variant is widely compatible with the following Xiaomi and Redmi models:
-
Xiaomi Series: Xiaomi CC9, CC9e, Xiaomi A3, Xiaomi 8SE.
-
Redmi Series: Redmi Note 8, Redmi Note 8 Pro.
Note on Model Variants: > * The Mi11 stencil (as detailed above) focuses on the SM6125/SDM710 ecosystem.
For the flagship Xiaomi Mi 11 / 11 Ultra (Snapdragon 888), you typically require the Amaoe Mi:14 (for CPU/RAM) or the 11U-012 (specifically for Middle Layer reballing).
Core Features & Performance
-
Square Hole Design: Unlike cheaper round-hole stencils, Amaoe uses square apertures. This design allows the solder paste to release more easily and ensures that the solder balls are uniform in size and placement, significantly reducing the risk of “bridging” (shorts). Amaoe Mi11 Stencil-Original
-
Anti-Drumming Technology: The steel is tempered to remain flat under the heat of a hot air gun. Cheaper stencils often “drum” or pop up when heated, which ruins the reballing process. Amaoe Mi11 Stencil-Original
-
High Success Rate: Due to the $0.12\text{ mm}$ precision thickness, the amount of solder paste deposited is exactly calibrated for the BGA pad height of these specific Xiaomi chipsets. Amaoe Mi11 Stencil-Original
Usage Tips for Technicians
-
Cleaning: Use 99% Isopropyl Alcohol (IPA) and a soft brush to clean the stencil after every use to prevent dried solder paste from clogging the $0.12\text{ mm}$ apertures.
-
Heating: When using a hot air station, set your temperature between 320°C and 350°C with low airflow to avoid blowing the solder balls out of alignment before they melt.
-
Original Build for Reliable Results
The Amaoe Mi11 Stencil is crafted from high-quality materials to guarantee longevity and dependable performance. Its original design ensures perfect compatibility with your Mi11, providing seamless application during repair tasks. Amaoe Mi11 Stencil-Original
Perfect for Professionals and Hobbyists
Whether you’re an experienced technician or just starting out, the Amaoe Mi11 Stencil is your reliable partner. Lightweight, durable, and easy to use, it makes screen repair tasks simpler and more efficient, delivering exceptional results every time. Amaoe Mi11 Stencil-Original
The Amaoe Mi11 BGA Reballing Stencil is a professional-grade repair tool specifically engineered for high-precision soldering and reballing of Xiaomi devices. Known for its “Japanese Steel” construction, it is a staple in the mobile repair industry due to its durability and resistance to high-temperature deformation. Amaoe Mi11 Stencil-Original
