Amaoe Mi14 Stencil-Original
Accurate and Reliable Design
The Amaoe Mi14 Stencil-Original is designed to deliver accuracy and reliability for all your electronic repair needs. Whether working on smartphones, tablets, or other devices, this stencil ensures precise alignment for seamless soldering and chip placement. Amaoe Mi14 Stencil-Original
Durable and High-Quality Materials
Crafted from high-quality materials, the Amaoe Mi14 Stencil is resistant to wear and tear, ensuring long-lasting performance. Its robust design supports consistent results, making it a trustworthy tool for hobbyists and professionals alike. Amaoe Mi14 Stencil-Original
Versatile and Easy to Use
Suitable for various repair applications, this stencil simplifies complex tasks with its user-friendly design. Experience versatility, convenience, and efficiency as you tackle intricate electronics repair projects effortlessly. Amaoe Mi14 Stencil-Original

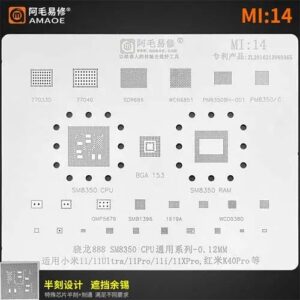

The Amaoe MI14 Stencil is a high-precision BGA reballing tool specifically engineered for professional mobile technicians. It is a critical component for repairing high-end Xiaomi and Redmi devices, particularly those utilizing the Qualcomm Snapdragon 888 (SM8350) chipset. Amaoe Mi14 Stencil-Original
Unlike generic stencils, the MI14 is designed to match the exact micron-level layout of the MI:14 architecture, preventing common repair failures like solder bridging or poor pin alignment. Amaoe Mi14 Stencil-Original
Amaoe MI14 Stencil: Full Specifications
| Specification | Details |
| Brand | Amaoe (Authentic Original) |
| Model Number | MI-14 (MI:14) |
| Primary Material | High-Grade Japanese Stainless Steel |
| Thickness | 0.12 mm |
| Hole Design | Square (Precision Laser-Cut) |
| Hardness | Super Hard / Anti-Deformation |
| Compatibility | Xiaomi 11 Series, Redmi K40 Pro Series |
| Main CPU Supported | Qualcomm Snapdragon 888 (SM8350) |
| RAM Support | LPDDR5 / SM8350 RAM (BGA153) |
| Secondary ICs | PM8350, PM8350C, PM8350BH, SMB1396, WCD9380, QMP5679 |
| Operating Temperature | High-temperature resistant (Compatible with hot air rework) |
| Weight | ~0.01 kg to 0.10 kg (packaged) |
| Dimensions | ~10.0 cm x 8.0 cm |
| Reusability | Yes (Engineered for multiple reballing cycles) |
Detailed Compatibility List
The MI14 stencil is versatile, covering a wide range of integrated circuits found in the 2021–2022 flagship Xiaomi ecosystem.
Supported Device Models
-
Xiaomi Mi 11 Series: Mi 11, Mi 11 Ultra, Mi 11i, Mi 11 Pro, Mi 11X Pro.
-
Redmi Series: Redmi K40 Pro, Redmi K40 Pro+.
Integrated Chipsets (IC) Covered
The stencil contains specific layouts for the following chips:
-
CPU: SM8350 (Snapdragon 888)
-
RAM: BGA153 (Specifically for the SM8350 architecture)
-
Power Management (PMIC): PM8350, PM8350C, PM8350BH-001
-
Audio/RF: WCD9380 (Audio Codec), SDR686 (RF Transceiver)
-
Charging/Misc: SMB1396 (Charging IC), QMP5679, 1619A, 77033D77040
Key Features & Professional Advantages
1. High-Precision Laser Cutting
The MI14 features ultra-fine square apertures. Square holes are preferred by technicians because they allow for easier release of the solder paste compared to round holes, ensuring that each solder ball is uniform in height and volume.
2. Thermal Stability
Fabricated from Japanese steel, the stencil is designed to resist “warping” or “doming” when exposed to the high temperatures of a hot air gun. This allows for direct heating on the stencil, which speeds up the reballing process.
3. Comprehensive IC Integration
Instead of requiring multiple stencils for one repair, the MI14 integrates the CPU, RAM, Power ICs, and Audio ICs into a single plate. This “All-in-One” approach is optimized for the motherboard layout of the Xiaomi 11 series.
4. Optimal Thickness (0.12mm)
The 0.12mm thickness is the industry standard for modern BGA chips. It provides the perfect balance: thick enough to provide structural integrity, yet thin enough to ensure the solder paste reaches the pads without excess buildup that causes shorts.
Usage Tips for Technicians
-
Cleaning: Use specialized PCB cleaner or 99% Isopropyl Alcohol to clean the stencil after every use. Dried solder paste in the apertures is the most common cause of reballing failure.
-
Paste Selection: Use a high-quality 183°C or 138°C solder paste depending on the thermal sensitivity of the surrounding components.
-
Alignment: Ensure the IC is perfectly centered within the stencil markers before applying paste. Even a 0.01mm offset can lead to a failed boot.
