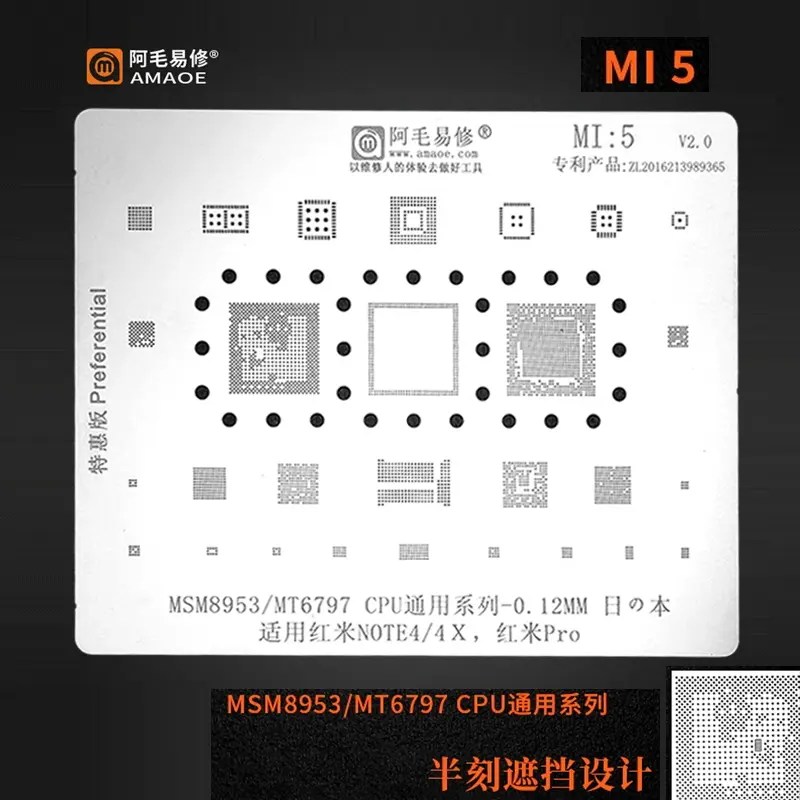

Amaoe MI5 BGA Stencil-Original
Unmatched Accuracy for Your Repairs
The Amaoe MI5 BGA Stencil-Original is your ultimate companion for detailed soldering and reballing tasks. Meticulously crafted to deliver precision, this stencil ensures seamless alignment, making it an indispensable tool for professionals and enthusiasts alike. Amaoe MI5 BGA Stencil-Original
High-Quality Material Built to Last
Manufactured using high-grade metal alloys, the Amaoe MI5 BGA Stencil offers exceptional durability and reliability, even during rigorous usage. Its resistance to heat and wear ensures consistent results, helping you tackle even the most intricate BGA rework projects with ease. Amaoe MI5 BGA Stencil-Original
Effortless Compatibility and Convenience
The perfectly designed stencil accommodates a wide array of BGA sizes, optimizing your workflow and saving valuable time. Whether you’re repairing motherboards or electronic chips, its versatility makes it an essential addition to your toolkit. Amaoe MI5 BGA Stencil-Original
The Amaoe MI5 BGA Stencil is a professional-grade repair tool engineered for precision reballing of Integrated Circuits (ICs) found in Xiaomi (Mi) series smartphones and other high-end mobile devices. Known for its “square hole” design, this stencil ensures that solder balls are formed uniformly, reducing the risk of bridging or cold joints during the rework process. Amaoe MI5 BGA Stencil-Original
Crafted from high-quality imported stainless steel, the MI5 is specifically tailored for Xiaomi devices like the Redmi Note 4, Note 4X, and Hongmi Pro, supporting critical components such as the MSM8953 (Snapdragon 625) and MT6797 (Helio X20) CPUs. Amaoe MI5 BGA Stencil-Original
Technical Specifications
The following table outlines the comprehensive specifications of the original Amaoe MI5 stencil.
| Feature | Specification Details |
| Brand | Amaoe (Original) |
| Model Series | MI Series (Dedicated for Xiaomi) |
| Model Number | MI5 |
| Material | High-Quality Imported 304 Stainless Steel |
| Thickness | 0.12 mm (Ultra-thin for precision reballing) |
| Hole Design | Precision Laser-Cut Square Round Holes |
| Dimensions | Approx. 80 mm x 100 mm (Sheet size) |
| Compatible CPUs | Qualcomm MSM8953, MediaTek MT6797 |
| Supported Devices | Redmi Note 4, Redmi Note 4X, Hongmi Pro |
| IC Modules Supported | CPU, RAM, Power IC (PMIC), Audio, WiFi Modules |
| Heat Resistance | High-temperature resistant (Anti-warping/Anti-deformation) |
| Color/Finish | Silver / Grey (Anti-glare treated) |
| Weight | ~0.01 kg |
| Reusable | Yes (High durability for multiple rework cycles) |
Key Features & Advantages
1. Precision Square-Hole Technology
Unlike traditional circular-hole stencils, the Amaoe MI5 utilizes square holes with rounded corners. This design facilitates easier release of the solder paste after printing and prevents the solder balls from sticking to the stencil. It results in a “brick” of solder paste that melts into a perfect sphere upon heating.
2. High-Grade Material Construction
The stencil is manufactured using high-quality stainless steel that offers excellent elasticity. This allows it to withstand the thermal expansion and contraction cycles of a hot air gun without permanent warping (deforming). The surface is often treated to be anti-glare, reducing eye strain for technicians working under microscopes.
3. Accurate IC Alignment
The MI5 is an “Original Full” specification stencil, meaning it contains dedicated partitions for specific ICs. Rather than a universal grid, the holes are mapped precisely to the pinouts of the MSM8953 and MT6797 platforms, ensuring 1:1 alignment with the chip’s pads.
4. Optimized Thickness
At 0.12 mm, the stencil provides the ideal volume of solder paste. If a stencil is too thick, it creates oversized solder balls that cause shorts; if too thin, the balls are too small to make a reliable connection. The MI5 hits the “sweet spot” for modern smartphone PCB density.
Application & Compatibility
While primarily marketed for the Xiaomi Mi/Redmi lineup, this stencil is essential for any device utilizing the following chipsets:
-
Qualcomm Snapdragon 625 (MSM8953): A widely used processor in mid-range phones from 2017-2020.
-
MediaTek Helio X20 (MT6797): Found in various high-performance budget devices.
-
Secondary ICs: The stencil also includes patterns for accompanying Power Management ICs (PMICs) and RF modules typically paired with these CPUs.
Maintenance Tips
To ensure the longevity of your Amaoe MI5 Stencil, follow these professional maintenance steps:
-
Cleaning: Use 99% Isopropyl Alcohol (IPA) and a soft-bristled brush to remove flux and solder residue immediately after use.
-
Storage: Keep the stencil flat in a protective sleeve to prevent accidental bending or creasing.
-
Paste Application: Use a high-quality solder paste (e.g., 183°C or 138°C) and a flat scraper to ensure even distribution across the square apertures.
