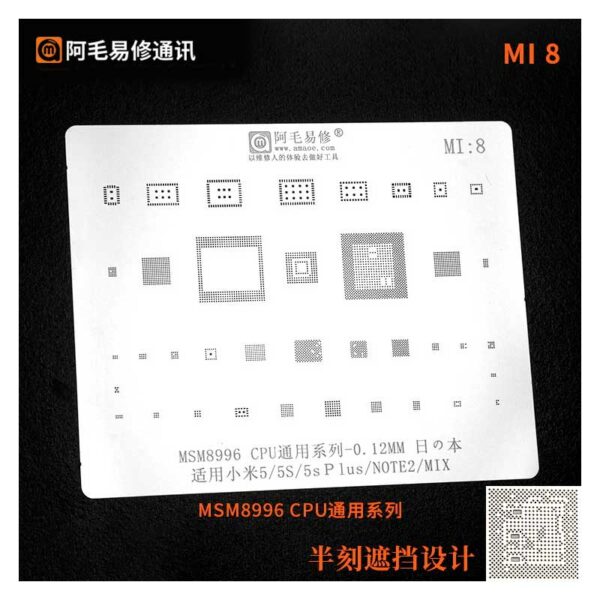

AMAOE MI8 Stencil-Original XIAOMI
Effortless Precision in Smartphone Repairs
The AMAOE MI8 Stencil-Original XIAOMI, designed exclusively for XIAOMI MI8, takes the hassle out of repair work. Engineered to deliver pinpoint accuracy, this stencil ensures seamless alignment for intricate soldering tasks, making it an indispensable tool for repair professionals and DIY enthusiasts alike. AMAOE MI8 Stencil-Original XIAOMI
Original Quality for Reliable Results
Crafted with high-quality materials, this original XIAOMI stencil guarantees exceptional durability and performance. Whether you’re replacing a worn-out component or fixing delicate parts, the AMAOE MI8 Stencil provides you with the support you need to achieve long-lasting and reliable results. AMAOE MI8 Stencil-Original XIAOMI
Easy to Use and Time-Saving
With its user-friendly design, the AMAOE MI8 Stencil minimizes the chances of errors and speeds up the repair process. It’s an essential addition to any toolkit, optimizing efficiency while maintaining the high standards your repairs deserve. AMAOE MI8 Stencil-Original XIAOMI
The AMAOE MI8 Stencil is a professional-grade BGA reballing tool engineered specifically for high-precision repairs on Xiaomi smartphones. Known for its durability and exact alignment, this stencil is a staple in the kits of micro-soldering technicians working on the Xiaomi Mi 8 series and related Qualcomm-based chipsets. AMAOE MI8 Stencil-Original XIAOMI
Below is the comprehensive technical breakdown and specification guide for the original AMAOE MI8 Stencil.
Technical Specifications Table
| Feature | Specification Details |
| Product Name | AMAOE MI8 BGA Reballing Stencil |
| Model Number | MI-8 (Xiaomi Series) |
| Brand | AMAOE (Original) |
| Material | High-Quality Japanese Imported Stainless Steel |
| Thickness | $0.12\text{mm}$ (Precision standard for mobile ICs) |
| Manufacturing Process | High-precision Laser Cutting |
| Hole Design | Square holes with rounded corners (Anti-stick design) |
| Main CPU Support | Qualcomm Snapdragon 821 (MSM8996) / MSM8956 / MSM8976 |
| Supported RAM/Flash | LPDDR4 / BGA153 / UFS Storage ICs |
| Compatible Models | Xiaomi Mi 8, Mi 8 SE, Mi Mix 3, Mi 5, Mi 5S, Mi 5S Plus, Note 2, Mi Mix |
| Weight | Approximately $0.02\text{kg}$ |
| Dimensions | Standardized for handheld or magnetic platform use |
| Heat Resistance | Up to $450^{\circ}\text{C}$ (Maintains structural integrity under heat gun) |
| Anti-Warping | High-tensile strength to prevent “doming” during heating |
Comprehensive Overview of Features
1. Material and Build Quality
The stencil is crafted from high-grade stainless steel that undergoes a specialized hardening process. This ensures that even under the intense heat of a hot air station—which typically reaches $350^{\circ}\text{C}$ to $400^{\circ}\text{C}$ during the reballing process—the steel does not warp or expand unevenly. AMAOE MI8 Stencil-Original XIAOMI
2. Precision Laser-Cut Apertures
Unlike cheaper etched stencils, the AMAOE MI8 uses CNC laser cutting. The apertures are designed as square holes with rounded corners. This specific geometry is critical because:
-
It allows for easier release of the solder paste. AMAOE MI8 Stencil-Original XIAOMI
-
It prevents “solder bridges” between closely packed pins. AMAOE MI8 Stencil-Original XIAOMI
-
It ensures uniform height for every solder ball, which is vital for the proper seating of the IC on the logic board.
3. $0.12\text{mm}$ Thickness Optimization
AMAOE has standardized the $0.12\text{mm}$ thickness for the MI8 model. This is the “Goldilocks” thickness for modern Xiaomi repairs:
-
Thicker stencils often lead to oversized solder balls that can cause shorts. AMAOE MI8 Stencil-Original XIAOMI
-
Thinner stencils (like $0.10\text{mm}$) can be too fragile or provide insufficient solder volume for larger power ICs. AMAOE MI8 Stencil-Original XIAOMI
4. Broad Compatibility (Qualcomm Focus)
While named the “MI8,” this stencil is versatile. It contains patterns for several critical integrated circuits (ICs) found in the Xiaomi ecosystem during the Snapdragon 821 and 845 eras. It covers the CPU, RAM, Power Management ICs (PMIC), and EMMC/UFS storage chips for the following devices: AMAOE MI8 Stencil-Original XIAOMI
-
Xiaomi Mi 8 / Mi 8 SE / Mi 8 Lite
-
Xiaomi Mi Mix / Mi Mix 3
-
Xiaomi Mi 5 / 5S / 5S Plus
-
Xiaomi Mi Note 2
Usage and Maintenance Guide
To maximize the lifespan of your AMAOE stencil, follow these industry-standard practices:
-
Cleaning: After every reballing session, clean the stencil immediately using 99% Isopropyl Alcohol (IPA) and a soft-bristled ESD brush. If solder paste hardens in the holes, use an ultrasonic cleaner rather than sharp tools to avoid scratching the surface.
-
Alignment: Use a specialized reballing station or a magnetic base to keep the IC perfectly aligned with the stencil. Even a $0.05\text{mm}$ misalignment can cause a failed repair.
-
Heating Technique: Apply heat in a circular motion. Avoid holding the heat gun in one spot for too long, as this can cause localized thermal expansion, potentially “popping” the stencil away from the chip.
-
Storage: Store the stencil flat in its original sleeve. Avoid stacking heavy tools on top of it, as any minor bend in the steel will render it useless for high-precision CPU work.
Pro Tip: When applying solder paste, use a high-quality “no-clean” paste with a $217^{\circ}\text{C}$ melting point (for lead-free) or $183^{\circ}\text{C}$ (for leaded) to ensure smooth ball formation through the $0.12\text{mm}$ apertures.
