Amaoe MI9 Stencil-Original Xiaomi
Enhance Repair Efficiency with Amaoe MI9 Stencil
The Amaoe MI9 Stencil-Original Xiaomi is a meticulous tool crafted for precise and efficient repairs. Designed specifically for Xiaomi devices, it ensures compatibility while offering unparalleled accuracy. Whether you’re a professional technician or an enthusiast, this stencil simplifies intricate repair tasks. Amaoe MI9 Stencil-Original Xiaomi
High-Quality Material for Durability
Made from robust and durable materials, the Amaoe MI9 Stencil is built to last. Its high-temperature resistance ensures it withstands the rigors of frequent soldering work, making it a dependable tool in your repair kit. Feel the difference as you execute delicate tasks effortlessly. Amaoe MI9 Stencil-Original Xiaomi
Why Choose the Amaoe MI9 Stencil?
This stencil is tailored to the fine details necessary for Xiaomi MI9 motherboards. With its exceptional design, it minimizes errors and improves accuracy during repair processes. Make your repair setups seamless and achieve ultimate satisfaction with this essential tool. Amaoe MI9 Stencil-Original Xiaomi

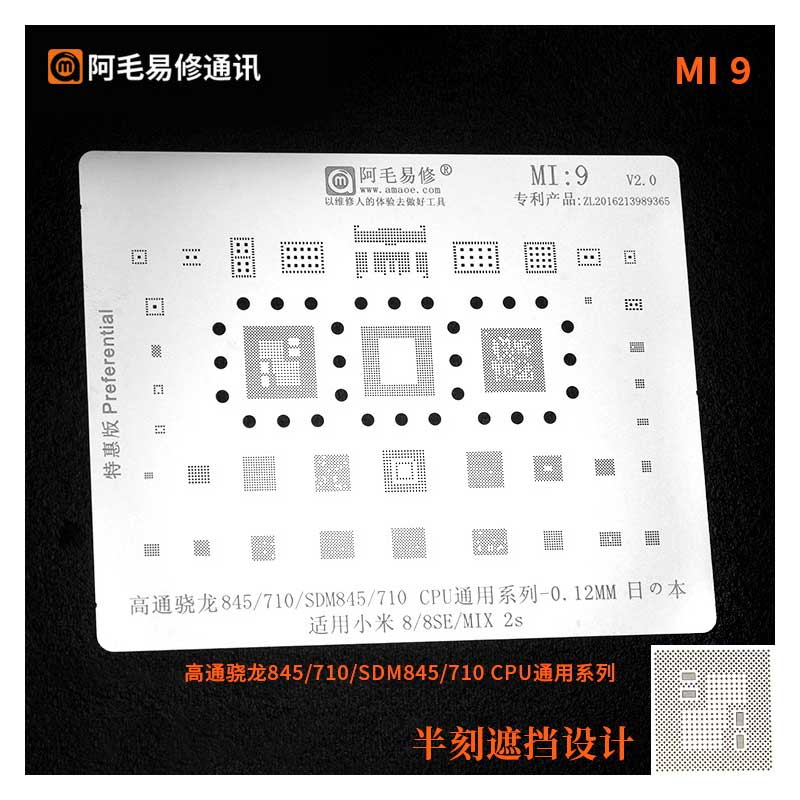

The Amaoe MI9 Stencil is a staple in the toolkit of mobile motherboard technicians. Specifically engineered for the high-precision reballing of Xiaomi and Redmi devices, this stencil bridges the gap between manual soldering and factory-level IC placement.
Below is a comprehensive breakdown of its technical specifications, compatibility, and professional usage. Amaoe MI9 Stencil-Original Xiaomi
Technical Specifications: Amaoe MI9 Stencil
| Feature | Specification Details |
| Brand | Amaoe (Original) |
| Model | MI-9 (Specifically for Xiaomi/Redmi Series) |
| Material | High-grade Magnetic Stainless Steel |
| Stencil Thickness | 0.12mm (Standard precision) |
| Manufacturing Process | High-precision Laser Cutting |
| Supported Chipsets | Qualcomm Snapdragon 845, SDM710 |
| Main CPU Support | SM8450, SM8150 (depending on variant), SDM845, SDM710 |
| Weight | ~0.02 kg (Ultra-lightweight) |
| Hole Design | Square hole / Rounded corner precision apertures |
| Heat Resistance | High (Resists warping under direct heat gun use) |
| Surface Finish | Anti-static and Anti-adhesion coating |
| Reusability | Fully reusable with proper cleaning |
Device and IC Compatibility
The MI9 stencil is not just for the Xiaomi Mi 9; it is designed for a specific generation of Qualcomm-based Xiaomi hardware. This makes it a versatile tool for several flagship and mid-range devices released between 2018 and 2020.
1. Supported Smartphone Models
-
Xiaomi Mi 8 / Mi 8SE
-
Xiaomi Mi Mix 2S
-
Xiaomi Mi Mix 3 (Early Snapdragon 845 variants)
-
Redmi 8 / 8A
-
Redmi Note 8 (Select IC footprints)
2. Supported Integrated Circuits (ICs)
-
CPUs: Snapdragon 845 (SDM845), Snapdragon 710 (SDM710)
-
Power ICs (PMIC): PM845, PM8005 (Standard for SD845 platforms)
-
Audio ICs: WCD9340/WCD9341 Codecs
-
WiFi/Bluetooth: WCN3990
-
RAM/Storage: LPDDR4X and UFS memory chip patterns compatible with the SD845 architecture.
Key Features & Professional Benefits
Precision Laser-Cut Apertures
Unlike cheaper, chemically etched stencils, the Amaoe MI9 uses laser-cutting technology. This results in tapered openings that allow solder paste to release cleanly from the stencil, preventing “bridging” or uneven solder balls. Amaoe MI9 Stencil-Original Xiaomi
0.12mm Optimized Thickness
Technicians often debate between 0.1mm and 0.15mm stencils. The 0.12mm thickness is widely considered the “sweet spot.” It is thick enough to provide structural integrity under heat but thin enough to ensure the resulting solder balls aren’t so large that they short-circuit the IC pads. Amaoe MI9 Stencil-Original Xiaomi
Thermal Stability
One of the biggest issues in BGA (Ball Grid Array) repair is stencil “bulging.” The Amaoe MI9 is made from a specific alloy that expands minimally when exposed to temperatures required for lead-free solder (typically $220°C$ to $260°C$). This keeps the stencil flat against the chip, ensuring a uniform reball. Amaoe MI9 Stencil-Original Xiaomi
Maintenance and Best Practices
To ensure the longevity and accuracy of your Amaoe MI9 stencil, follow these industry-standard procedures:
-
Cleaning: After every use, clean the stencil with 99% Isopropyl Alcohol (IPA) and a soft-bristled brush. Solder paste residue in the holes will harden and ruin the next job. Amaoe MI9 Stencil-Original Xiaomi
-
Heat Management: When reballing, avoid focusing the heat gun on a single spot for too long. Use a circular motion at approximately 300°C – 330°C (depending on your station’s calibration) to melt the paste evenly. Amaoe MI9 Stencil-Original Xiaomi
-
Storage: Keep the stencil in its original sleeve or a flat organizer. Bending or kinking the metal will make it impossible to achieve a flush seal against the IC.
Pro-Tip: For the best results with the MI9 stencil, use a medium-viscosity solder paste (e.g., $183°C$ tin-lead or $138°C$ low-temp bismuth-based paste for sensitive components).
Comparison: MI9 vs. MI10 Stencils
| Feature | MI9 Stencil | MI10 Stencil |
| Primary CPU | Snapdragon 845 / 710 | Snapdragon 855 / 865 |
| Xiaomi Devices | Mi 8, Mix 2S | Mi 9, K20 Pro, Mi 10 |
| Era | 2018-2019 | 2019-2020 |
