Amaoe Middle Layer Stencil-Original For MI 9 Pro

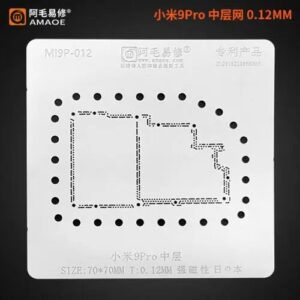

The Amaoe Middle Layer Stencil-Original For MI 9 Pro is a precision-engineered tool designed specifically for the Xiaomi Mi 9 Pro. This stencil is an essential asset for advanced mobile technicians performing “sandwich” motherboard repairs, which require rejoining the two layers of the PCB after a separation. Amaoe Middle Layer Stencil-Original For MI 9 Pro
Below are the comprehensive specifications and features in a detailed format. Amaoe Middle Layer Stencil-Original For MI 9 Pro
Technical Specifications Table
| Feature | Specification Details |
| Brand | Amaoe (Authentic Original) |
| Model Number | MI9P-012 (Mi 9 Pro Dedicated) |
| Compatibility | Xiaomi Mi 9 Pro (5G) |
| Application | Motherboard Middle Frame / Middle Layer Reballing |
| Material | High-Grade Japanese Stainless Steel |
| Thickness | $0.12\text{ mm}$ (Standard High-Precision) |
| Hole Type | Square-Round (Laser-Cut) |
| Heat Resistance | Up to $450\text{°C}$ (without deformation) |
| Weight | Approximately $0.01\text{ kg}$ (7g – 10g) |
| Dimensions | Roughly $10\text{ cm} \times 8\text{ cm}$ |
| Surface Finish | Anti-static / Non-magnetic (for easier paste release) |
Product Overview & Key Features
1. High-Precision Laser Cutting
The Amaoe MI9P-012 utilizes advanced laser-cutting technology to ensure that every aperture aligns perfectly with the Xiaomi Mi 9 Pro’s motherboard pads. Unlike budget stencils, the “Square-Round” hole design allows solder paste to form uniform balls, preventing “bridging” (short circuits) or “cold joints” (weak connections). Amaoe Middle Layer Stencil-Original For MI 9 Pro
2. $0.12\text{ mm}$ Optimal Thickness
The thickness of a stencil is critical for a successful middle-layer bond. At 0.12 mm, this stencil provides the exact volume of solder paste required to bridge the gap between the upper and lower logic boards. This thickness is considered the “sweet spot” in the industry, offering enough structural integrity to resist warping while remaining flexible enough for perfect contact. Amaoe Middle Layer Stencil-Original For MI 9 Pro
3. Material Durability
Constructed from super-hard Japanese steel, the stencil is designed to withstand multiple heating cycles. Even when exposed to the high temperatures of a hot air rework station (typically $330\text{°C}$ to $380\text{°C}$ for reballing), the Amaoe original material maintains its flatness, ensuring the reballing process remains consistent across the entire surface. Amaoe Middle Layer Stencil-Original For MI 9 Pro
4. Specialized “Middle Layer” Functionality
Modern high-end smartphones like the Mi 9 Pro use a stacked PCB design to save space. When these devices suffer from drop damage or thermal stress, the connection between these layers can break. This stencil is specifically mapped to the perimeter pads (the middle frame) of the Mi 9 Pro motherboard, allowing a technician to re-apply the solder balls necessary to “re-sandwich” the boards together. Amaoe Middle Layer Stencil-Original For MI 9 Pro
Professional Usage Guidelines
To maximize the lifespan of your Amaoe stencil and ensure the highest repair success rate, follow these industry best practices:
-
Cleaning: After every use, clean the stencil immediately using 99% Isopropyl Alcohol (IPA) and a soft-bristled brush. Dried solder paste can clog the micro-apertures and ruin future alignments.
-
Paste Application: Use a high-quality 183°C Lead-Tin solder paste for middle-layer repairs. Apply the paste with a scraper at a $45\text{°}$ angle to ensure even filling of the holes.
-
Heat Management: When heating the stencil, move the nozzle in a circular motion. Avoid focusing high heat on a single spot for too long to prevent “popping” or minor temporary bowing.
-
Storage: Always store the stencil flat. Placing heavy objects on it or bending it can cause permanent deformation, making it unusable for high-precision reballing.
Unparalleled Precision for Your MI 9 Pro
The Amaoe Middle Layer Stencil is expertly crafted to meet your MI 9 Pro repair and refurbishment needs. Its original design ensures compatibility and precise alignment, helping you handle delicate repair tasks with confidence and ease.
Durable and Reliable for Long-Term Use
This stencil features high-quality materials that deliver long-lasting durability. Its robust structure is ideal for handling heat-based processes and intricate repair steps, making it an indispensable tool for professionals and hobbyists alike.
Optimized for Efficiency
Designed to streamline your repair workflow, the Amaoe Middle Layer Stencil minimizes errors and maximizes efficiency during rework tasks. Its original specifications ensure the perfect fit for the MI 9 Pro, reducing downtime and improving repair accuracy.
