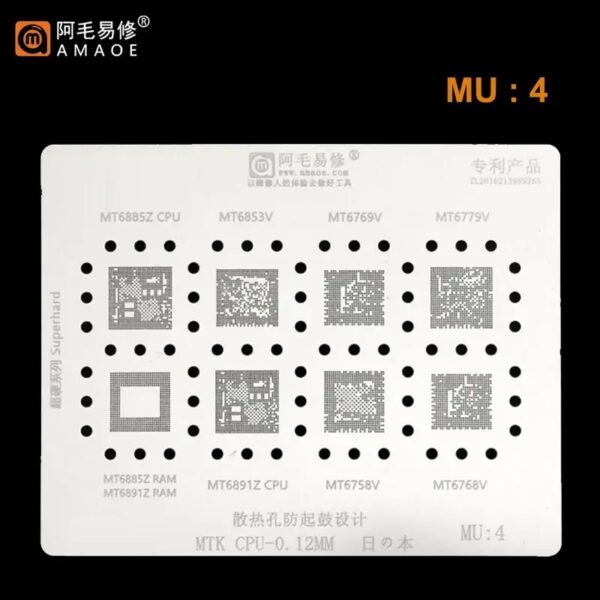

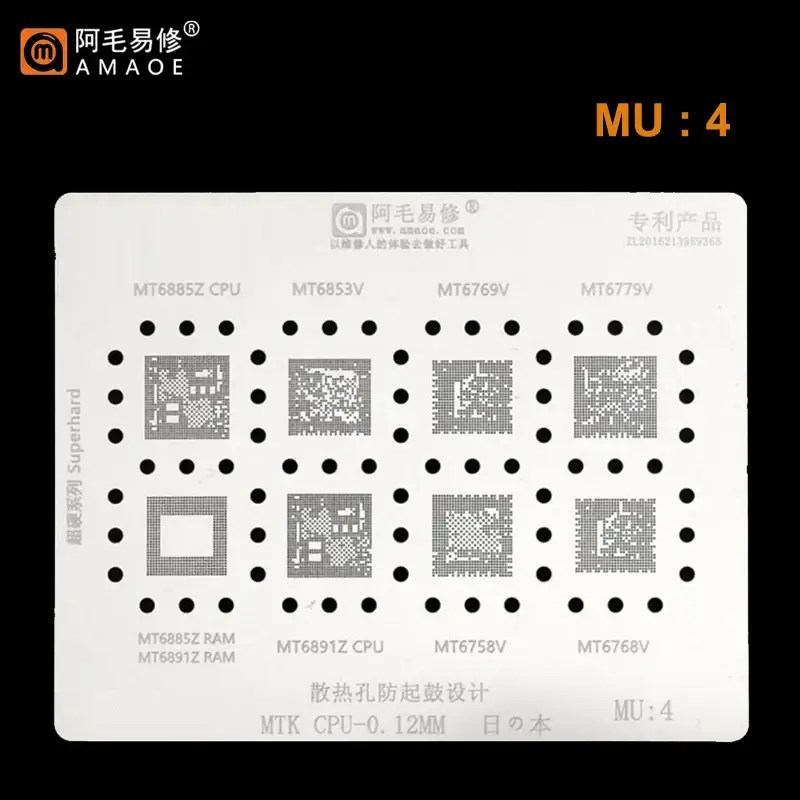

Amaoe MU4 BGA Reballing Stencil-Original
Achieve Precision in Every Repair
The Amaoe MU4 BGA Reballing Stencil-Original is designed to provide unmatched accuracy for your repair projects. Built for both professionals and tech enthusiasts, it ensures precise stencil alignment for seamless chip and motherboard integration. Amaoe MU4 BGA Reballing Stencil-Original
Durable, Reliable, and Easy to Use
Crafted from high-quality materials, the stencil delivers long-lasting performance. Its ergonomic design ensures efficient handling, making your repair process smoother and more reliable. Whether you’re reballing for professional board repairs or personal projects, the Amaoe MU4 gets the job done effectively. Amaoe MU4 BGA Reballing Stencil-Original
Streamlined Repairs for Better Results
This stencil caters to a variety of chip sizes, making it versatile for most repair tasks. Transform challenging electronic repairs into hassle-free tasks while maintaining high industry standards. Upgrade your repair toolkit with the Amaoe MU4 BGA Reballing Stencil for flawless results every time! Amaoe MU4 BGA Reballing Stencil-Original
The Amaoe MU4 BGA Reballing Stencil is a staple in the toolkit of any serious micro-solderer or mobile technician. Known for its precision and heat resistance, the MU4 is specifically designed to service a variety of MTK (MediaTek) power management ICs and processors commonly found in Android devices. Amaoe MU4 BGA Reballing Stencil-Original
Below is a comprehensive breakdown of the MU4 specifications, features, and technical details. Amaoe MU4 BGA Reballing Stencil-Original
Technical Specifications: Amaoe MU4
| Feature | Specification |
| Model Number | MU4 (MTK Series) |
| Material | High-Grade Japanese Steel (Imported) |
| Stencil Thickness | 0.12mm (Ultra-Thin Precision) |
| Hole Shape | Square Holes with Rounded Corners (Anti-Stuck Design) |
| Supported IC Types | MT6357V, MT6357CRV, MT6358W, MT6359P, MT6359VK, MT6360P, etc. |
| Heat Resistance | Up to 450°C-500°C (Direct Heat Compatible) |
| Application | BGA Reballing, Solder Paste Application, IC Repair |
| Surface Finish | Specialized Polished Coating for Easy Paste Release |
| Dimensions | Standardized 100mm x 80mm (approximate sheet size) |
Key Features & Design Philosophy
1. Square Hole Geometry
Unlike cheaper stencils that use simple circular drills, the Amaoe MU4 utilizes a square hole with rounded internal corners. This is a deliberate engineering choice:
-
Solder Release: It prevents the solder paste from sticking to the corners of the stencil when you lift it.
-
Ball Uniformity: It ensures that each solder ball is perfectly centered on the IC pad, reducing the risk of bridges.
2. High-Grade Japanese Steel
The MU4 is manufactured using imported high-quality steel. This matters because lower-quality metals tend to warp or “drum” when hit with the high heat of a hot air station. The MU4 remains flat, ensuring that the solder paste doesn’t seep underneath the stencil during the heating process. Amaoe MU4 BGA Reballing Stencil-Original
3. Precision 0.12mm Thickness
In BGA reballing, the height of the solder ball is determined by the thickness of the stencil. At 0.12mm, the MU4 provides the ideal volume of paste for MediaTek power ICs. This thickness strikes a balance between durability and the delicate pitch requirements of modern mobile chips. Amaoe MU4 BGA Reballing Stencil-Original
Supported IC List (Common Compatibility)
The MU4 is a multi-purpose stencil. While it is marketed as a MediaTek (MTK) stencil, its utility covers several specific high-failure components often seen in repair shops:
-
MT6357V / MT6357CRV: Common Power Management ICs (PMIC) in mid-range smartphones.
-
MT6358W: High-performance PMIC found in many 2020-2023 handsets.
-
MT6359P / VK: Advanced power management chips used in 5G-enabled devices.
-
MT6360P: Often used as a secondary PMIC or charging logic controller.
Recommended Reballing Parameters
To get the most out of an Amaoe MU4 stencil, technicians usually follow these environmental and tool settings:
Pro Tip: Always clean the stencil with 99% Isopropyl Alcohol (IPA) before and after use to ensure no dried flux or old solder paste clogs the 0.12mm apertures.
-
Solder Paste: Use 183°C (Sn63/Pb37) leaded paste for general repairs, or 138°C (Low Melt) for temperature-sensitive boards.
-
Air Station Temperature: $320^{\circ}C$ to $350^{\circ}C$ (depending on your station’s calibration).
-
Air Flow: Low (usually 20-30%) to prevent the stencil from lifting or the paste from blowing out of the holes.
Why Choose Amaoe over Generic?
While generic stencils are available at a lower price point, the Amaoe MU4 is preferred for longevity. The laser-cutting process used by Amaoe leaves the walls of the holes smoother than chemical etching. This means: Amaoe MU4 BGA Reballing Stencil-Original
-
Less cleaning time: Paste doesn’t get trapped in microscopic burrs.
-
No Bulging: The stencil resists the “popcorn effect” (warping) during direct heating.
-
Accuracy: The alignment of the holes matches the original chip manufacturer’s datasheet perfectly, ensuring $0\%$ misalignment.
