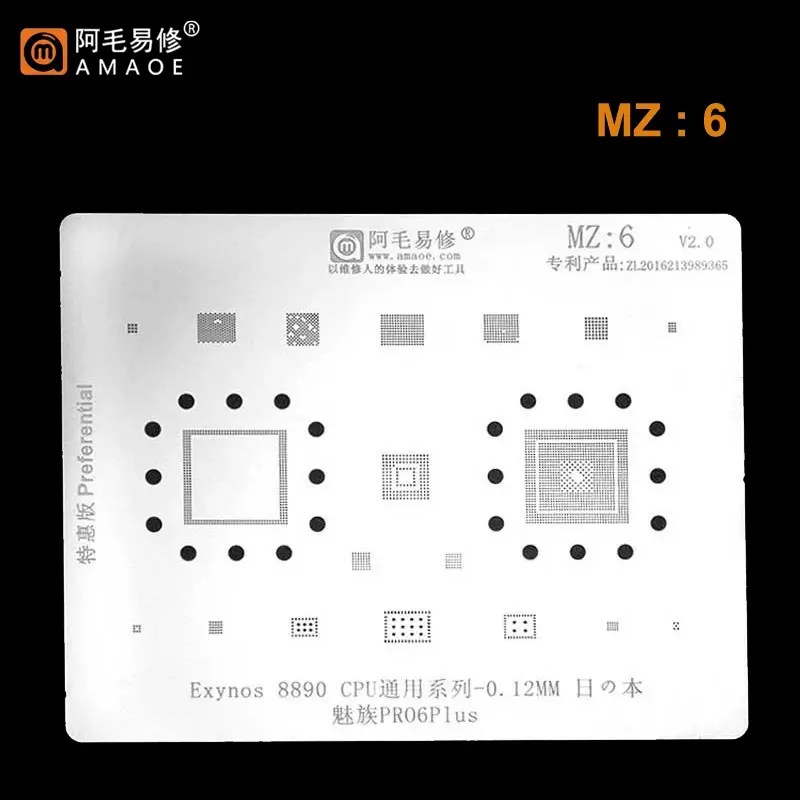

Amaoe MZ6 BGA Reballing Stencil-Original
Exceptional Precision for Professional Reballing
The Amaoe MZ6 BGA Reballing Stencil-Original is expertly crafted for technicians seeking unparalleled precision in chip repair and reballing tasks. Made from high-quality materials, this tool ensures accuracy and reliability, speeding up your workflow with ease and efficiency. Amaoe MZ6 BGA Reballing Stencil-Original
Durable Design for Long-Term Usage
Built to withstand rigorous use, the Amaoe MZ6 stencil features a robust construction ensuring durability. Whether you’re working on intricate soldering or demanding chip alignment processes, this product stands up to the challenge while maintaining consistent results over time. Amaoe MZ6 BGA Reballing Stencil-Original
Convenience for Every Professional
Compact yet comprehensive, the Amaoe MZ6 BGA Reballing Stencil is designed for user-friendly handling. Its compatibility across diverse chip models makes it a versatile addition to any technician’s toolkit, enabling seamless repairs every time. Amaoe MZ6 BGA Reballing Stencil-Original
The Amaoe MZ6 BGA Reballing Stencil is a professional-grade precision tool engineered specifically for the repair and maintenance of high-end mobile chipsets. Part of the specialized Amaoe “MZ” series, this stencil is renowned among micro-soldering technicians for its heat resistance and alignment accuracy. Amaoe MZ6 BGA Reballing Stencil-Original
Product Overview
The MZ6 is primarily designed for Exynos 8890 chipsets and associated Power Management ICs (PMICs) and RAM modules. Unlike generic stencils, the MZ6 features laser-cut square holes that prevent solder paste from sticking, ensuring a “one-pass” successful ball formation. Its construction from high-quality Japanese steel allows it to undergo direct heating without warping or “drumming” (the phenomenon where a stencil pops up under heat). Amaoe MZ6 BGA Reballing Stencil-Original
Technical Specifications: Amaoe MZ6
| Feature | Specification Details |
| Model Number | Amaoe MZ6 |
| Material | High-Grade Japanese Stainless Steel |
| Thickness | 0.12mm (Ultra-thin for precise paste volume) |
| Hole Type | Square Aperture (Beveled edges for easy release) |
| Process | High-Precision Laser Cutting |
| Hardness | Super Hard / High Elasticity |
| Direct Heat Support | Yes (Anti-deformation technology) |
| Compatible Chipsets | Exynos 8890 CPU / Power ICs / RAM |
| Typical Use Case | Samsung S7 / S7 Edge Series / Note 7 Rework |
| Magnetic Support | Compatible with Magnetic Reballing Bases |
Key Features and Advantages
1. High-Precision Square Apertures
The MZ6 utilizes a unique square-hole design. In the world of BGA reballing, square holes offer a better release mechanism for solder paste compared to traditional round holes. This reduces the risk of “bridging” (solder balls merging) and ensures that each ball is uniform in size. Amaoe MZ6 BGA Reballing Stencil-Original
2. Thermal Stability (Direct Heating)
One of the biggest challenges in reballing is the stencil bending when exposed to the 300°C+ heat of a hot air gun. The Amaoe MZ6 is crafted from Japanese steel that has been tempered to withstand these temperatures. Technicians can apply heat directly to the stencil while it is positioned over the IC, which significantly speeds up the reballing process. Amaoe MZ6 BGA Reballing Stencil-Original
3. 0.12mm Optimized Thickness
At 0.12mm, the stencil provides the perfect volume of solder paste. A stencil that is too thick results in oversized balls that can cause shorts; one that is too thin leads to weak connections. The MZ6 is tuned to the specific pitch requirements of the Exynos 8890 architecture. Amaoe MZ6 BGA Reballing Stencil-Original
Supported Components
The MZ6 is a multi-purpose template for specific device generations. While primarily known for the CPU, it often contains cutouts for the accompanying logic chips found on the motherboard:
-
CPU: Samsung Exynos 8890 (Octa-core)
-
RAM: LPDDR4 PoP (Package on Package) configurations
-
Power ICs: Specific PMICs associated with the 8890 platform
-
Secondary ICs: Small logic and audio chips frequently repaired in Samsung S7-era devices.
Usage Guide for Professional Results
To maximize the lifespan of your Amaoe MZ6 and ensure a 100% success rate, follow these industry-standard steps:
-
Preparation: Clean the IC thoroughly using a soldering iron and wick to ensure the pads are flat. Use PCB cleaner to remove any remaining flux.
-
Alignment: Place the IC under the MZ6. The precision-cut holes should align perfectly with the silver pads on the chip. Use a microscope for verification.
-
Paste Application: Apply a high-quality solder paste (typically 183°C leaded paste for ease of use). Use a scraper at a 45° angle to fill the holes evenly.
-
Cleaning Excess: Wipe the surface of the stencil with a lint-free cloth to ensure no stray paste is left on the steel.
-
Heating: Use a hot air station set to approximately 320°C – 350°C with low airflow. Hold the stencil down with tweezers and heat in a circular motion until the balls glisten and solidify.
-
Release: Allow the stencil to cool for 5 seconds before gently pushing the IC out from the back.
Maintenance Tip: Always clean your stencil with ultrasonic cleaner or high-purity IPA (Iso-Propyl Alcohol) immediately after use. Dried solder paste in the apertures is the leading cause of stencil failure.
