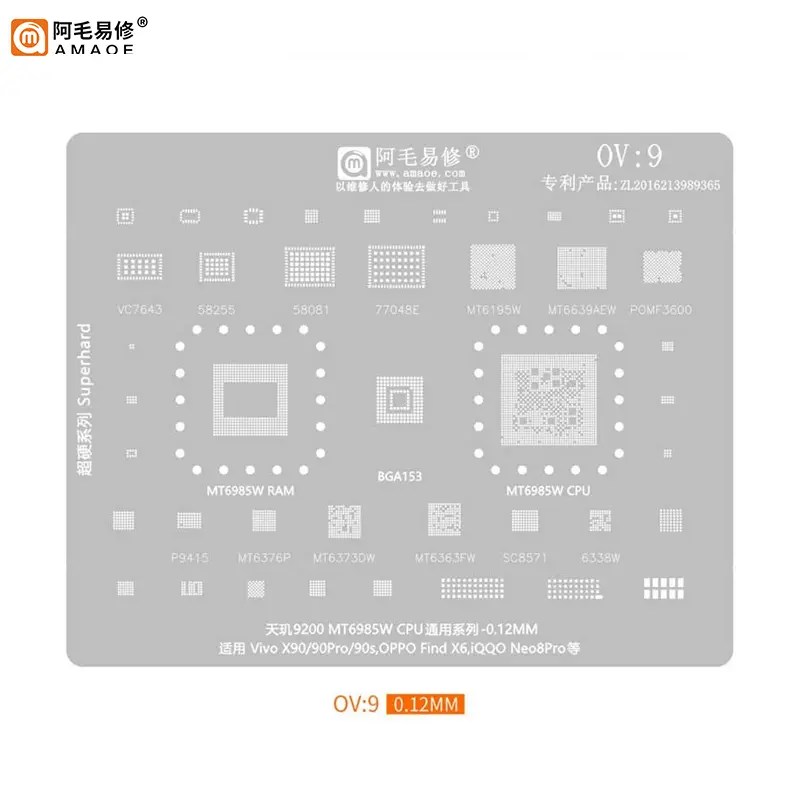

Amaoe OV9 BGA Reballing Stencil-Original
Ultimate Precision for BGA Repairing
The Amaoe OV9 BGA Reballing Stencil-Original is designed for meticulous and hassle-free BGA chip reballing. Engineered with precision, this durable stencil ensures accurate alignment, making it an ideal choice for professionals in electronic repair and motherboard restoration. Amaoe OV9 BGA Reballing Stencil-Original
Robust Build for Long-Lasting Use
Crafted from high-quality metal material, this stencil can withstand repeated use over time without deformation or damage. Its sturdy construction ensures reliability while maintaining ease of use for complex repair tasks. Amaoe OV9 BGA Reballing Stencil-Original
Ease of Use and Versatility
Compatible with a wide range of BGA chip sizes, the Amaoe OV9 helps you tackle intricate soldering and reballing jobs seamlessly. Whether you’re working on smartphones, laptops, or intricate circuit boards, this tool provides unmatched performance and precision. Amaoe OV9 BGA Reballing Stencil-Original
The Amaoe OV9 BGA Reballing Stencil is a precision-engineered tool designed specifically for high-level mobile repair, focusing on the specialized chipsets found in the OPPO and Vivo ecosystems. Amaoe has built a reputation for creating stencils that don’t just “fit,” but actively assist the technician in achieving a perfect solder ball alignment on the first try. Amaoe OV9 BGA Reballing Stencil-Original
Below is the comprehensive breakdown of the OV9 model, formatted for clarity and technical depth. Amaoe OV9 BGA Reballing Stencil-Original
Technical Specifications: Amaoe OV9 Stencil
| Feature | Specification Details |
| Model Number | OV:9 (OPPO/Vivo Series #9) |
| Material | High-Grade Imported Japanese AAA Steel |
| Thickness | 0.12mm (Ultra-thin for precise solder paste volume) |
| Hole Design | Square-holed with Rounded Corners (Anti-drum/Anti-bulge) |
| Heat Resistance | Up to 450°C (High thermal stability) |
| Supported Brands | OPPO, Vivo, Realme (Shared platforms) |
| Compatibility | MTK (MediaTek) & Qualcomm Snapdragon CPUs / Power ICs |
| Surface Finish | Laser-cut, CNC-polished edges |
Targeted Chipset Support
The OV9 is not a “universal” stencil in the generic sense; it is a multi-purpose targeted stencil. This means it hosts a cluster of specific patterns designed for a particular generation of hardware. For the OV9, the focus is largely on mid-to-high-range chipsets commonly found in devices from 2021 through 2024. Amaoe OV9 BGA Reballing Stencil-Original
1. Central Processing Units (CPUs)
The OV9 typically includes patterns for popular MediaTek Dimensity and Qualcomm Snapdragon series chips. Because OPPO and Vivo often share motherboard architectures (due to their BBK Electronics heritage), the OV9 covers a wide swath of their mid-range lineup. Amaoe OV9 BGA Reballing Stencil-Original
2. Power Management ICs (PMICs)
One of the strengths of the OV9 is the inclusion of secondary chips. Often, when a phone has a “no power” issue, it’s not the CPU, but the PMIC. The OV9 features the specific grid arrays for these smaller, heat-sensitive components. Amaoe OV9 BGA Reballing Stencil-Original
3. RAM/Storage (EMMC/UFS)
The stencil includes BGA patterns for modern storage chips, allowing for “sandwich” reballing where the RAM sits atop the CPU in a Package-on-Package (PoP) configuration. Amaoe OV9 BGA Reballing Stencil-Original
Key Design Innovations
The “Anti-Drum” Square Hole
Standard round holes often cause the solder paste to “dome” or stick to the walls of the stencil. Amaoe uses square holes with chamfered (rounded) corners.
-
The Benefit: This design allows for better release of the solder paste. When you lift the stencil after applying the paste, the “bricks” of solder stay on the chip rather than being pulled up by the stencil.
0.12mm Precision Thickness
While 0.15mm is common for older chips, modern mobile CPUs have extremely tight “pitch” (the distance between the center of one solder ball and the next).
-
The Benefit: A 0.12mm thickness ensures that the solder balls aren’t too large, which prevents “bridging” (where two balls melt together and cause a short circuit).
High-Temperature Memory Steel
Amaoe uses a specific grade of stainless steel that has “shape memory.“
-
The Benefit: If the stencil warps slightly under the heat of your hot air gun, it is designed to return to its original flat state once cooled. This prevents the “potato chip” effect that ruins cheaper, generic stencils.
Best Practices for Using Amaoe OV9
To get the most out of a professional-grade stencil like this, the process is as vital as the tool:
-
Preparation: Clean the IC thoroughly using a soldering iron and wick until the pads are flat. Use 99% Isopropyl Alcohol to remove all flux residue.
-
Alignment: The Amaoe OV9 features high-transparency steel finishes. Align the pins of the chip with the holes of the stencil under a microscope.
-
Solder Paste Application: Use a “high-silver” content solder paste (e.g., 183°C or 138°C depending on the component sensitivity). Apply the paste firmly with a scraper, ensuring all holes are packed.
-
Heat Management: Hold the stencil down with tweezers. Set your hot air station to approximately 300°C–330°C with low airflow. Heat in a circular motion to ensure even expansion of the metal.
Why Choose OV9 Over Generic Stencils?
Using a generic “3D” or “Universal” stencil often results in uneven ball heights. The OV9 is CNC-machined to match the specific thermal expansion coefficient of the chips it supports. This means when the heat is applied, the stencil expands at a rate similar to the chip, reducing the risk of misalignment during the critical melting phase.
