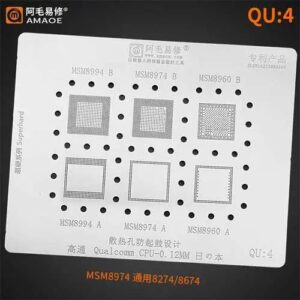

Amaoe QU4 Stencil-Original
Crafted for Maximum Accuracy
The Amaoe QU4 Stencil-Original is designed to deliver unmatched precision in your projects, making it the ideal tool for professionals who demand perfection. Every detail is meticulously crafted to provide an exceptional user experience. Amaoe QU4 Stencil-Original
Durable and Reliable Build
Built to last, the Amaoe QU4 Stencil features a high-quality construction that withstands repeated use without compromising its performance. Whether you’re working on intricate designs or requiring precise measurements, this stencil ensures consistency every time. Amaoe QU4 Stencil-Original
Your Go-To Tool for Versatile Applications
From technical drawings to creative projects, the Amaoe QU4 Stencil adapts to a wide variety of applications. Its versatile design makes it suitable for professionals and enthusiasts who seek excellence in every stroke. Amaoe QU4 Stencil-Original
The Amaoe QU4 Stencil is a high-precision BGA reballing tool specifically designed for the Qualcomm (QU) series of chipsets. Known for its “Original” series quality, Amaoe utilizes high-grade Japanese steel and specialized square-hole technology to ensure that solder paste application is uniform and that heat dissipation during the reballing process doesn’t warp the stencil. Amaoe QU4 Stencil-Original
Below is a detailed breakdown of the QU4’s specifications, supported chipsets, and technical features. Amaoe QU4 Stencil-Original
Core Specifications Table: Amaoe QU4
| Feature | Specification Details |
| Model Name | Amaoe QU4 (Qualcomm Series) |
| Material | High-Quality Imported Japanese Stainless Steel |
| Thickness | 0.12mm (Standard High-Precision) |
| Hole Type | Square Hole (with rounded inner corners to prevent sticking) |
| Heat Resistance | High-temperature resistance up to 450°C-500°C without deformation |
| Anti-Bulging Tech | Integrated cooling vents/slots to prevent thermal expansion |
| Compatible Brands | Xiaomi, Huawei, Samsung, Vivo, Oppo, and OnePlus |
| Application | BGA Reballing, CPU/IC Chip Repair, Motherboard Maintenance |
Supported Chipsets & IC Models
The QU4 is a “multi-purpose” stencil, meaning it contains several precision-cut grids tailored to specific Qualcomm Snapdragon processors and power management ICs.
-
Processors (CPU): Specifically optimized for the Snapdragon 845 (SDM845). This includes the CPU and the layered RAM (PoP – Package on Package) configurations commonly found in flagship devices from 2018–2020.
-
Power Management (PMIC): Features dedicated grids for PM845 and PM805.
-
Audio/Codec: Support for WCD9340 and WCD9341 audio ICs.
-
Wi-Fi/Bluetooth: Layouts for WCN3990 modules.
-
Charging/Other: Support for SMB1355 and other auxiliary Qualcomm chips.
Key Technical Features
1. Square Hole Design
Unlike traditional round-hole stencils, the QU4 uses square holes. This is critical for solder paste release. When you lift the stencil after applying the paste, the square geometry provides less surface tension, ensuring the “brick” of solder stays on the chip pad rather than sticking to the stencil.
2. Thermal Expansion Grooves
If you look closely at an original Amaoe QU4, you will see small etched lines or “slots” between the IC grids. These are anti-drum/anti-bulge grooves. When you apply heat with a hot air gun, metal naturally expands. These grooves allow the steel to expand inward/sideways rather than “doming” upward, which would otherwise cause solder bridges (shorts).
3. 0.12mm Precision Thickness
The 0.12mm thickness is the “Goldilocks” zone for Qualcomm chips. It is thick enough to provide a sturdy structure that won’t easily bend, yet thin enough to ensure the solder balls are the exact height required for the motherboard’s footprint.
Usage Tips for Professional Technicians
To get the most out of the Amaoe QU4, follow these maintenance and application guidelines:
-
Alignment: Because the QU4 is transparent-etched, use a microscope to align the chip pads perfectly. Even a 0.01mm offset can result in a failed reball.
-
Solder Paste Choice: It is recommended to use 183°C leaded solder paste or 138°C low-temperature paste depending on the sensitivity of the IC.
-
Cleaning: After every use, clean the stencil with PCB cleaner or 99% Isopropyl Alcohol. If solder gets stuck in the holes, do not use a needle; use an ultrasonic cleaner or a soft-bristled brush to avoid scratching the steel.
-
Heat Management: Use a nozzle size that covers the entire chip area and keep the hot air gun moving in a circular motion to ensure even melting of the solder spheres.
Comparison: Why Choose “Original” Amaoe?
There are many “A-grade” or “OEM” stencils on the market, but the Original QU4 stands out because of its chemical etching process. Cheaper stencils are often laser-cut, which can leave burrs (tiny metal shards) inside the holes. Amaoe’s chemical etching results in smooth, tapered walls that make the reballing process much more forgiving for beginners and faster for pros. Amaoe QU4 Stencil-Original
Note: Always verify the “Amaoe” logo and the specific “QU4” engraving on the bottom right of the plate to ensure it is not a counterfeit, as fake plates often use lower-grade steel that warps after only two or three uses. Amaoe QU4 Stencil-Original
