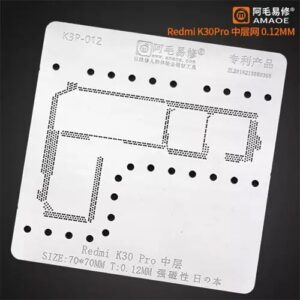

Amaoe Redmi K30 Pro Middle Layer Stencil-Original
Unlock Precision with Amaoe Redmi K30 Pro Stencil
Streamline your electronic repair tasks with the Amaoe Redmi K30 Pro Middle Layer Stencil-Original. Designed specifically for the Redmi K30 Pro, this stencil ensures precise alignment and optimum accuracy for delicate soldering processes. Whether you’re a professional technician or an enthusiast, this tool empowers you to achieve flawless results every time. Amaoe Redmi K30 Pro Middle Layer Stencil-Original
Engineered for Durability and Efficiency
Made from high-quality materials, this original stencil offers exceptional durability, standing up to repeated use without compromising on performance. Its middle-layer design facilitates seamless application, reducing errors and maximizing efficiency in your device repair projects. Simplify your workflow and save time with this purpose-built stencil. Amaoe Redmi K30 Pro Middle Layer Stencil-Original
Why Choose the Original Amaoe Stencil?
The Amaoe Redmi K30 Pro Stencil is a must-have for anyone seeking a reliable and efficient solution for intricate repairs. Its precision engineering translates to better results, maintaining the integrity of your device while delivering consistent outcomes. Don’t settle for subpar alternatives—opt for quality you can trust. Amaoe Redmi K30 Pro Middle Layer Stencil-Original
The Amaoe Redmi K30 Pro Middle Layer Stencil (often identified by model numbers K3P-012 or MI-12) is a precision-engineered repair tool specifically designed for dual-layer (sandwich) motherboard reballing. This stencil is essential for technicians performing board-level repairs, such as fixing “no power” issues, WiFi failures, or performing CPU swaps on the Xiaomi Redmi K30 Pro.
Below are the detailed original specifications and technical characteristics of the Amaoe Redmi K30 Pro Middle Layer Stencil.
Technical Specifications Table
| Feature | Specification |
| Brand | Amaoe (Authentic) |
| Model Number | K3P-012 / MI-12 |
| Compatible Device | Xiaomi Redmi K30 Pro / K30 Pro Zoom |
| Compatible Platform | Snapdragon 865 (SM8250) Infrastructure |
| Stencil Type | Middle Layer / Interposer / Motherboard Planting |
| Material | High-Grade Japanese Imported 304 Stainless Steel |
| Thickness | $0.12\text{ mm}$ (Standardized for middle layer paste) |
| Hole Design | Square-Round / CNC Laser Cut |
| Heat Resistance | Up to $450^\circ\text{C}$ (Anti-deformation) |
| Aperture Alignment | $1:1$ Original Factory Mapping |
| Weight | Approx. $15\text{g} – 20\text{g}$ |
| Corrosion Resistance | Oxidation-proof metallic finish |
Key Feature Breakdown
1. High-Precision Laser Cutting
Amaoe utilizes advanced CNC laser technology to create “square-round” apertures. Unlike cheaper stencils with jagged edges, these holes are tapered and polished. This ensures that the solder paste releases cleanly without sticking to the walls of the stencil, resulting in uniform solder balls across the entire interposer. Amaoe Redmi K30 Pro Middle Layer Stencil-Original
2. Thermal Stability (Anti-Deformation)
The Redmi K30 Pro motherboard requires significant heat for desoldering and reballing. This stencil is crafted from specialized steel that resists “warping” or “doming” when subjected to hot air. This stability is critical for middle-layer work, as even a $0.01\text{ mm}$ lift can cause solder bridging between the two board halves. Amaoe Redmi K30 Pro Middle Layer Stencil-Original
3. $0.12\text{ mm}$ Thickness Optimization
The thickness of $0.12\text{ mm}$ is the industry standard for the Snapdragon 865 series. It provides the exact volume of solder paste required to bridge the gap between the logic board and the signal board, ensuring a robust connection that survives the mechanical stress of daily phone use. Amaoe Redmi K30 Pro Middle Layer Stencil-Original
4. Cooling & Alignment Vents
The stencil includes peripheral holes and markings that assist in aligning the stencil perfectly with the motherboard’s alignment pins and ground pads. This reduces the setup time and increases the success rate of the “first-time” reball. Amaoe Redmi K30 Pro Middle Layer Stencil-Original
Application and Usage
The middle layer of the Redmi K30 Pro is a complex grid of pads that connects the upper and lower PCB layers. This stencil is used during the “Planting” phase:
-
Cleaning: After separating the layers, all old solder is removed from the interposer pads.
-
Alignment: The Amaoe stencil is placed over the bottom board.
-
Paste Application: Low-melt or medium-melt solder paste (typically $183^\circ\text{C}$ or $158^\circ\text{C}$) is scraped across the stencil.
-
Reflow: Hot air is applied to form the balls, and the stencil is removed.
-
Joining: The top board is then aligned and heated until the two layers fuse.
[!TIP]
Pro Tip: When using the Amaoe Middle Layer stencil, ensure you use a high-quality “no-clean” solder paste. Given the $0.12\text{ mm}$ precision, any impurities in the paste can cause “solder beads” which may short out the middle frame.
