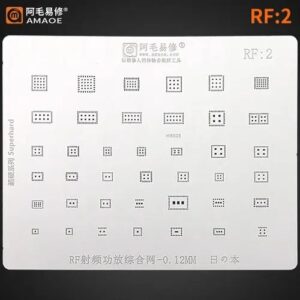

Amaoe RF2 BGA Reballing Stencil-Original
Enhance Your Reballing Efficiency
Amaoe RF2 BGA Reballing Stencil-Original is expertly designed to provide precision and reliability for reballing tasks. Whether you are working on small-scale repair jobs or large project assemblies, this stencil ensures consistent and accurate results every time. Amaoe RF2 BGA Reballing Stencil-Original
Built for Durability
Crafted from high-quality materials, the Amaoe RF2 BGA Reballing Stencil offers long-lasting performance, resisting wear and guaranteeing reliable use over time. Its robust structure meets the demanding needs of professionals handling delicate rework processes. Amaoe RF2 BGA Reballing Stencil-Original
Professional Compatibility
This stencil is perfectly suited for reballing a wide range of BGA chips with outstanding compatibility for diverse chip sizes. Simplify your workflow and achieve professional-grade results with this essential tool for technicians and hobbyists alike. Amaoe RF2 BGA Reballing Stencil-Original
The Amaoe RF2 BGA Reballing Stencil is a staple in the toolkit of professional micro-solderers and mobile technicians. Known for its high precision and “square hole” design, the RF2 is specifically engineered to handle a wide range of RF (Radio Frequency) chips, power ICs, and baseband processors found in modern smartphones. Amaoe RF2 BGA Reballing Stencil-Original
Below is the comprehensive breakdown of its specifications, design philosophy, and technical applications. Amaoe RF2 BGA Reballing Stencil-Original
Technical Specifications Table
| Feature | Specification Details |
| Model Number | Amaoe RF2 (Radio Frequency Series 2) |
| Material | High-Grade Japanese Imported Steel |
| Stencil Thickness | 0.12mm (Ultra-thin precision) |
| Hole Type | Square-holed (Anti-bulge design) |
| Heat Resistance | Up to 450°C (High thermal stability) |
| Chip Compatibility | RF ICs, WiFi Modules, Power Management (PMIC), Baseband |
| Supported Brands | Qualcomm, MTK (MediaTek), HiSilicon, Samsung, Apple |
| Alignment Technology | CNC Laser Cutting with polished edges |
| Coating | Anti-static, Non-stick surface treatment |
Core Design Philosophy
The Amaoe RF2 is not just a sheet of metal; it is an engineered solution to the common frustrations of BGA (Ball Grid Array) reballing.
1. The Square Hole Advantage
Unlike traditional round-hole stencils, the RF2 utilizes square holes. This is a critical design choice. Square holes allow the solder paste to release more cleanly from the stencil after heating. They provide small “air gaps” in the corners that prevent the vacuum effect, which often causes solder balls to stick to the stencil rather than the chip. Amaoe RF2 BGA Reballing Stencil-Original
2. High-Temperature Durability
One of the biggest enemies of reballing is stencil warping. When a technician applies heat from a hot air station, inferior steel expands unevenly, causing the stencil to “bow” or “bulge.” The RF2 is manufactured from premium imported steel that maintains its flat profile even under sustained temperatures required for lead-free soldering (roughly 220°C to 260°C). Amaoe RF2 BGA Reballing Stencil-Original
3. Precise Thickness (0.12mm)
The 0.12mm thickness is the “Goldilocks” zone for modern mobile repair. It ensures that the resulting solder balls are not too tall (which causes bridging) and not too flat (which causes poor connectivity). Amaoe RF2 BGA Reballing Stencil-Original
Comprehensive Chip Coverage
The RF2 is a “Multi-purpose” stencil, meaning it doesn’t just fit one phone model, but rather a specific class of components. It is particularly effective for:
-
RF Transceivers: Essential for fixing signal issues (No Service, Searching…).
-
WiFi/Bluetooth Modules: Common in iPhone and high-end Android repairs.
-
Power Management ICs (PMICs): The heart of the device’s charging and power distribution.
-
Intermediate Baseband Processors: Often used in Qualcomm-based architectures.
Operational Best Practices
To get the most out of the Amaoe RF2, technicians should follow a standardized workflow:
-
Cleaning: Ensure the IC is completely free of old solder and flux. Use a wick and isopropyl alcohol.
-
Alignment: Place the IC under the stencil. The RF2’s high transparency (under a microscope) makes aligning the pads to the square holes straightforward.
-
Paste Application: Use a high-quality solder paste (usually 183°C or 138°C depending on the component sensitivity). Apply firmly with a scraper.
-
Heat Control: Hold the stencil down with tweezers at the edges. Apply heat in a circular motion. The square holes will facilitate a “leap” where the solder spheres form and drop perfectly onto the pads.
Why Choose the RF2 over Generic Stencils?
Generic stencils often suffer from burrs—tiny jagged edges inside the holes left by cheap laser cutting. These burrs snag the solder balls. Amaoe uses high-end CNC laser polishing to ensure every hole is smooth. Furthermore, the RF2 is chemically etched to be “non-stick,” reducing the amount of cleaning required between jobs.
Note: Always ensure you are purchasing the Original Amaoe product. Counterfeit versions use lower-grade steel that warps after only a few uses, potentially damaging sensitive RF chips through uneven heat distribution.
