Amaoe RF3 BGA Reballing Stencil-Original
Accurate and Reliable Reballing
The Amaoe RF3 BGA Reballing Stencil-Original is a game-changer for technicians and hobbyists working with BGA reballing. Crafted with precision engineering, it ensures accurate alignment and hassle-free reballing, making intricate repairs seamless and efficient. Amaoe RF3 BGA Reballing Stencil-Original
Premium-Quality Construction
This stencil is designed using high-quality materials, guaranteeing durability and consistent performance. Whether you’re tackling large-scale projects or routine repairs, the Amaoe RF3 delivers exceptional results every time. Amaoe RF3 BGA Reballing Stencil-Original
Optimize Your Workflow
Boost productivity with this tool tailored for effortless handling and superior accuracy. Its innovative design minimizes errors, streamlining your repair process like never before. Perfect for professionals and enthusiasts alike, the Amaoe RF3 BGA Reballing Stencil is your reliable companion in intricate operations.Amaoe RF3 BGA Reballing Stencil-Original
The Amaoe RF3 BGA Reballing Stencil is a staple tool for professional micro-soldering technicians, specifically those focusing on high-end smartphone repairs (predominantly iPhones). Amaoe has built a reputation for high-precision stencils that resist warping under heat, making them a preferred choice over generic alternatives. Amaoe RF3 BGA Reballing Stencil-Original
Below is a detailed breakdown of the specifications, design philosophy, and technical applications for the RF3 series. Amaoe RF3 BGA Reballing Stencil-Original
Technical Specifications Table
| Feature | Specification Details |
| Model Series | Amaoe RF3 (Radio Frequency/Baseband Focus) |
| Material | High-grade Japanese Imported Stainless Steel |
| Stencil Thickness | 0.12mm (Standardized for optimal solder paste volume) |
| Hole Shape | Square Holes with Rounded Corners (Anti-clumping design) |
| Heat Resistance | Up to 450°C – 500°C without significant deformation |
| Manufacturing Process | High-precision Laser Cutting |
| Alignment Method | High-transparency / High-precision CNC laser positioning |
| Supported Devices | Primarily iPhone 12, 13, 14, and 15 series (RF/Baseband) |
| Typical ICs Covered | Baseband CPU, RF Transceivers, WiFi/Bluetooth, NFC, Power ICs |
Detailed Feature Analysis
1. Material Integrity and “Anti-Drum” Design
One of the biggest headaches in reballing is the “drumming” or warping of a stencil when heat is applied. The Amaoe RF3 uses a specific alloy of stainless steel that maintains a low coefficient of thermal expansion. This ensures that as you apply heat with your hot air station, the stencil stays flat against the chip, preventing solder bridges or uneven ball sizes.
2. The 0.12mm Thickness Standard
The thickness of a stencil determines the height and volume of the solder balls.
-
Why 0.12mm? It provides the “Goldilocks” zone for modern BGA chips.
-
If the stencil is too thin ($<0.10mm$), the solder balls won’t be robust enough to create a reliable connection.
-
If it’s too thick ($>0.15mm$), the balls may bridge together during the reflow process because the pitch (the distance between pads) on RF chips is incredibly tight.
3. Square Holes with Rounded Corners
Amaoe utilizes a specialized laser-cutting technique. While the holes appear square to the naked eye, the corners are slightly rounded.
-
The Benefit: This geometry allows the solder paste to release from the stencil much more cleanly. In purely square holes, paste often gets stuck in the 90-degree corners, leading to “missing balls” after you lift the stencil.

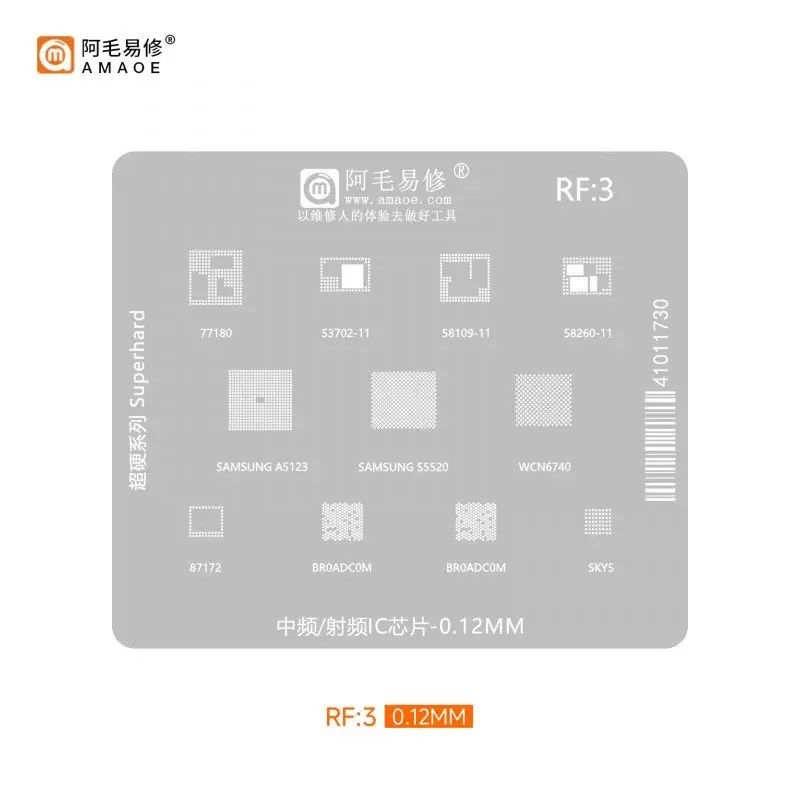

RF3 Content Breakdown: What’s on the Plate?
The “RF” in RF3 stands for Radio Frequency. This stencil is specifically curated to include the peripheral chips that control a phone’s connectivity. Unlike a “CPU Stencil,” which has one massive grid, the RF3 is a multi-utility plate containing:
-
Baseband Processor (Modem): The brain of the cellular connection. Amaoe RF3 BGA Reballing Stencil-Original
-
RF Transceivers: Responsible for converting signals between the antenna and the modem. Amaoe RF3 BGA Reballing Stencil-Original
-
WiFi / Bluetooth Modules: Specialized layouts for Broadcom or Apple-proprietary modules. Amaoe RF3 BGA Reballing Stencil-Original
-
NFC Controllers: Small-footprint ICs for contactless payments. Amaoe RF3 BGA Reballing Stencil-Original
-
UWB (Ultra-Wideband): Layouts for the chips used in spatial awareness and AirTag tracking. Amaoe RF3 BGA Reballing Stencil-Original
Usage Best Practices for RF3 Stencils
To get the most out of these high-precision specifications, technicians should follow a specific workflow:
-
Cleaning: Use 99% Isopropyl Alcohol to ensure no old flux or carbonized paste remains in the laser-cut holes.
-
Paste Preparation: Use a high-quality solder paste (usually Sn63/Pb37 or a lead-free equivalent like SAC305). “Dry” the paste slightly on a lint-free tissue to reduce excess flux, which prevents “popping” during heating.
-
Heat Management: Set your hot air station to approximately 330°C with low airflow (around 20-30%). High airflow can blow the solder balls out of their sockets before they melt.
-
The “Lift”: Wait 2-3 seconds after the solder has liquified and turned shiny before removing the stencil.
Why Choose RF3 Over Generic Stencils?
While generic stencils are cheaper, they often use inferior steel that warps after 2-3 uses. The Amaoe RF3 is designed for repetitive professional use. The precision of the laser cutting ensures that even on the 100th reball, the alignment remains perfect. This is critical for 5G components where the pad pitch is so small that a deviation of even 0.01mm can result in a failed repair.
