Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original
Unmatched Accuracy for Device Repairs
The Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original stands out as a reliable solution for intricate electronic repair tasks. Designed specifically for SM-S711B/BE models, this original stencil ensures exceptional alignment and precision during BGA reballing processes, saving you time and effort while delivering professional results. Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original
Durable Construction for Long-Term Use
Manufactured from high-quality materials, the stencil is crafted to endure repetitive use without compromising on performance. Its durable build guarantees consistent reballing outcomes, making it an indispensable tool for technicians and repair enthusiasts alike. Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original
Tailored Compatibility for SM-S711B/BE
The Amaoe S23FE-012 stencil is meticulously engineered to meet the specifications of SM-S711B/BE devices. Its exact compatibility minimizes errors and optimizes efficiency, facilitating seamless repair work for this particular device model. Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original

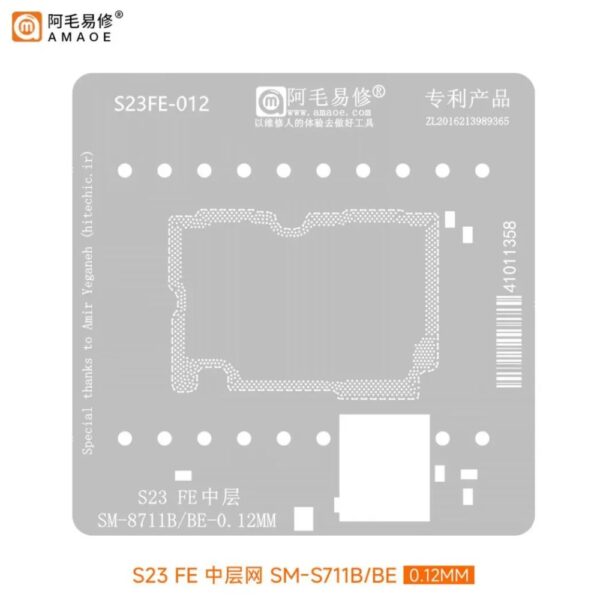

The Amaoe S23FE-012 is a professional-grade, high-precision BGA reballing stencil specifically engineered for the Samsung Galaxy S23 FE (Fan Edition). In the world of microsoldering and chip-level repair, Amaoe is widely regarded as the “gold standard” due to their use of high-quality materials and precise CNC laser-cutting technology. Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original
This particular stencil is designed for the SM-S711B and SM-S711BE variants, focusing on the critical “middle layer” or interposer repair, as well as the primary ICs found on the logic board.
Technical Specifications: Amaoe S23FE-012
| Feature | Specification Details |
| Manufacturer | Amaoe (Authentic/Original) |
| Model Number | S23FE-012 |
| Compatibility | Samsung Galaxy S23 FE (SM-S711B, SM-S711BE) |
| Material | High-Grade 304 Stainless Steel |
| Thickness | 0.12mm (Ultra-thin for precision) |
| Process | High-precision Laser Cutting |
| Hole Shape | Square Holes with Rounded Corners (Anti-drum/Anti-stick) |
| Heat Resistance | High Thermal Stability (Prevents warping during heating) |
| Application | CPU, RAM, Power IC, and Middle Layer Reballing |
Key Features and Design Advantages
1. 0.12mm Precision Thickness
The thickness of a stencil is the most critical factor in successful reballing. At 0.12mm, the S23FE-012 provides the perfect volume of solder paste. If a stencil is too thick, the solder balls become too large and cause shorts; if it’s too thin, the connection is weak. This specific thickness is optimized for the tight pitch of modern Samsung Exynos or Snapdragon chipsets. Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original
2. Specialized “Square Hole” Technology
Unlike cheaper stencils that use simple circular holes, Amaoe utilizes square holes with micro-rounded corners.
-
Easier Demolding: This design prevents the solder paste from sticking to the stencil when you lift it.
-
Uniformity: It ensures that every single solder ball is the exact same height and diameter, which is vital for the “sandwich” board design of the S23 series.
3. Thermal Deformation Resistance
Reballing requires high heat, often exceeding 300°C depending on the solder paste used. The S23FE-012 is manufactured from chemically etched and laser-finished stainless steel that resists “bloating” or warping under heat. This keeps the stencil flat against the chip, preventing solder from leaking between the pads.
Supported Components & Layout
The S23FE-012 is not just for a single chip; it is a multi-functional template that covers the core architecture of the SM-S711B motherboard:
-
The Main CPU/RAM Stack: Precise alignment for the primary processor and the overlaid RAM chip.
-
Power Management ICs (PMIC): Dedicated sections for the secondary chips that regulate voltage.
-
Middle Layer / Interposer: The S23 FE uses a stacked PCB design. This stencil includes the perimeter “border” holes required to reconnect the top and bottom logic boards.
-
Network/RF ICs: Support for the communication chips specific to the S711B global models.
Professional Usage Tips
To get the most out of the Amaoe S23FE-012, professional technicians generally follow these protocols:
-
Alignment: Use a microscope to ensure every pad is perfectly centered in the stencil hole. Even a 0.01mm offset can lead to a failed boot. Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original
-
Paste Preparation: Use high-quality “No-Clean” solder paste (usually 183°C leaded for repair or 217°C lead-free for OEM spec). Always pat the paste with a lint-free cloth to remove excess flux before applying. Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original
-
Heat Control: Use a direct-heat method with a hot air station. Set the airflow to a low setting (around 2 or 3) to prevent the solder balls from jumping out of their sockets before they melt. Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original
-
Cleaning: After use, clean the stencil immediately with PCB cleaner or ultrasonic fluid. Solder residue left in the 0.12mm holes will harden and ruin future precision. Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original
Why “Original” Matters
There are many “3rd party” versions of the S23FE stencil, but the Amaoe Original is preferred because of the burr-free finish. In cheaper stencils, the laser cutting leaves microscopic jagged edges inside the holes. These edges “grab” the solder ball, causing it to pull away from the chip when the stencil is removed. The S23FE-012 undergoes a secondary polishing process to ensure the inner walls of the holes are glass-smooth. Amaoe S23FE-012 Middle Layer BGA Reballing Stencil-Original For SM-S711B/BE Stencil-Original
