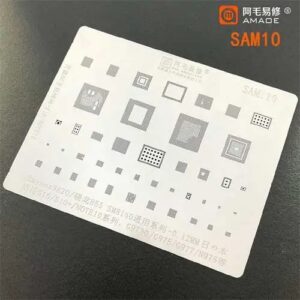

Amaoe SAM10 BGA Reballing Stencil-Original
The Amaoe SAM10 BGA Reballing Stencil-Original is a staple in the toolkit of professional micro-soldering technicians, specifically those specializing in Samsung device repairs. Amaoe has built a reputation for high-precision, heat-resistant stencils that mitigate the common “warping” issues found in cheaper alternatives. Amaoe SAM10 BGA Reballing Stencil-Original
Below is a comprehensive breakdown of the SAM10 specifications, followed by a detailed look at its design and application. Amaoe SAM10 BGA Reballing Stencil-Original
Technical Specifications: Amaoe SAM10
| Feature | Specification |
| Model Number | Amaoe SAM10 (Samsung Series) |
| Material | High-Grade Japanese Imported 304 Stainless Steel |
| Stencil Thickness | 0.12mm (Ultra-thin precision) |
| Manufacturing Process | High-precision Laser Cutting & Square Hole Design |
| Supported Devices | Samsung Galaxy S10, S10+, S10E, Note 10 Series |
| Supported Chipsets | Exynos 9820, Snapdragon 855 (Region dependent) |
| Key Components | CPU, RAM, Power IC (PMIC), WiFi/BT, Audio IC, Storage (UFS) |
| Heat Resistance | Up to 450°C (Stable thermal expansion) |
| Alignment Method | High-accuracy CNC positioning holes |
| Surface Finish | Matte/Anti-glare (Reduces eye strain under microscope) |
Key Features & Design Philosophy
1. Square Hole Technology
Unlike older stencils that utilized round apertures, the SAM10 employs square holes with rounded corners. This design is critical for reballing because:
-
Paste Release: It allows the solder paste to release more cleanly from the stencil after printing.
-
Solder Ball Formation: During the heating phase, the square shape helps center the solder ball on the pad more effectively, reducing the risk of bridges.
2. Thickness and Durability
At 0.12mm, the SAM10 hits the “sweet spot” for modern BGA (Ball Grid Array) work. If a stencil is too thin, it warps under the heat of a hot air station; if it is too thick, it deposits too much solder, leading to shorts under high-density chips like the CPU or RAM. The Japanese 304 steel provides excellent “spring-back” memory, maintaining its flatness over hundreds of uses.
3. Comprehensive Chip Coverage
The “SAM” series by Amaoe is organized by device generation. The SAM10 is specifically curated for the 2019 Samsung flagship era. It isn’t just a CPU stencil; it is a “multi-stencil” that typically includes layouts for: Amaoe SAM10 BGA Reballing Stencil-Original
-
The Sandwich (CPU/RAM): The most complex part of the board, requiring perfect alignment.
-
Power Management (PMIC): Multiple small BGA chips that often fail due to water damage.
-
Baseband/RF: Critical for signal issues.
Application and Best Practices
To get the most out of the Amaoe SAM10, technicians should follow a precise workflow. Using a high-quality stencil is only half the battle; the technique defines the result.
Proper Reballing Workflow:
-
Cleaning: Ensure the IC (Integrated Circuit) is completely flat. Use a soldering iron and wick to remove old solder until the pads are flush with the chip surface. Clean with 99.9% Isopropyl Alcohol (IPA). Amaoe SAM10 BGA Reballing Stencil-Original
-
Alignment: Place the IC under the SAM10. Amaoe’s laser-cut precision allows you to see the pads clearly through the holes. Amaoe SAM10 BGA Reballing Stencil-Original
-
Paste Application: Use a high-quality “no-clean” solder paste (usually 183°C leaded for easier repair, or 217°C lead-free if OEM specs are required). Apply with a firm spatula. Amaoe SAM10 BGA Reballing Stencil-Original
-
Heating: Use a hot air station set to approximately 300°C–330°C with low airflow. Hold the stencil down with tweezers to prevent thermal expansion from lifting the stencil away from the chip. Amaoe SAM10 BGA Reballing Stencil-Original
Note: The SAM10 is designed to resist bulging, but uneven heating can still cause “popcorn” effects where solder balls merge. Always heat the stencil evenly from a slight distance before zooming in on the chip. Amaoe SAM10 BGA Reballing Stencil-Original
Why Choose Amaoe SAM10 over Generic Stencils?
| Comparison Factor | Amaoe SAM10 | Generic “Blue” Stencils |
| Precision | Laser-cut (No burrs) | Chemically etched (Rough edges) |
| Warping | Minimal due to 304 Steel | High (Often deforms after 2-3 uses) |
| Cleaning | Easy (Solder doesn’t stick to walls) | Difficult (Pits in metal trap solder) |
| Cost | Moderate ($5 – $10) | Low ($1 – $3) |
The SAM10 is an investment in first-time success. For a repair technician, the time lost to a failed reball (which requires cleaning the chip all over again) is far more expensive than the cost of a premium stencil.
Maintenance Tips
To extend the life of your SAM10:
-
Never scrape with sharp steel tools that can scratch the aperture walls.
-
Clean immediately after use using IPA and a soft-bristled ESD brush.
-
Store it in a flat folder or the original packaging to prevent accidental bending.
Achieve Flawless BGA Repairs
The Amaoe SAM10 BGA Reballing Stencil is crafted with precision for professionals who demand accuracy. Designed with high-grade materials, it ensures consistent results when reballing chipsets, making it an indispensable tool in advanced electronics repair. Amaoe SAM10 BGA Reballing Stencil-Original
Durable and Reliable Construction
Made from original, durable materials, this reballing stencil is built to withstand intense usage. Its robust design ensures excellent alignment, reducing errors and maximizing efficiency during the repair process. Perfect for technicians seeking reliable performance. Amaoe SAM10 BGA Reballing Stencil-Original
Compatible and Easy to Use
Whether you’re repairing smartphones, laptops, or other devices, the Amaoe SAM10 BGA Reballing Stencil delivers versatility and ease of use. Its user-friendly design helps accelerate workflows without compromising quality, ensuring productive sessions in both professional and hobbyist settings. Amaoe SAM10 BGA Reballing Stencil-Original
