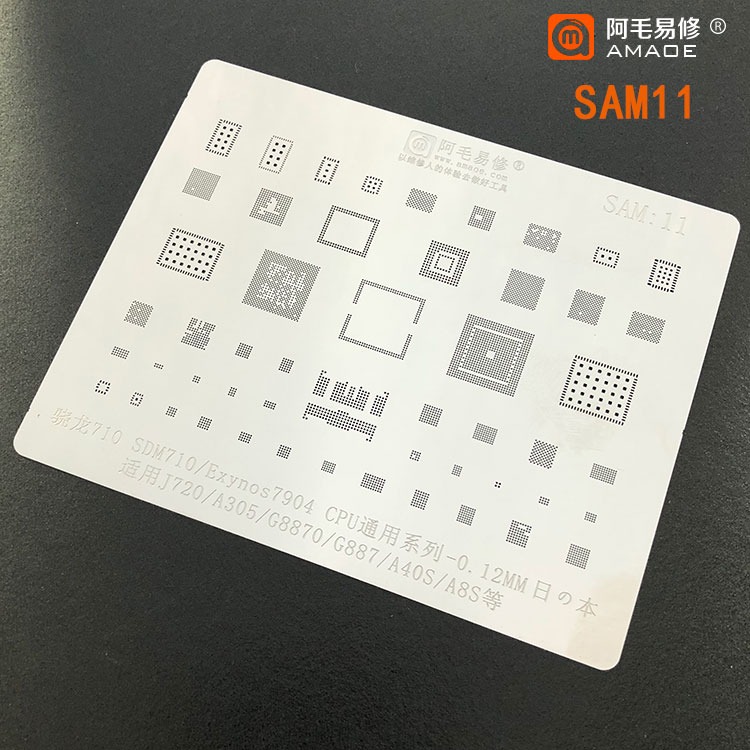

Amaoe SAM11 BGA Reballing Stencil
Accurate and Reliable Reballing Solution
The Amaoe SAM11 BGA Reballing Stencil is expertly designed for professionals seeking precision in PCB repair and reballing tasks. Crafted from high-quality materials, it ensures a consistent and reliable application, making it an indispensable tool for delicate electronic repairs. Amaoe SAM11 BGA Reballing Stencil
High-Quality and Durable Material
Built with durability in mind, this stencil is manufactured to resist wear and tear. Its robust construction guarantees longevity, providing a dependable solution for technicians and hobbyists alike. Whether you’re working on laptops, TVs, or mobile devices, the Amaoe SAM11 stands out for its superior quality and performance. Amaoe SAM11 BGA Reballing Stencil
Easy-to-Use Design
Featuring a user-friendly design, the Amaoe SAM11 simplifies the reballing process, reducing effort and improving efficiency. Its precise alignment ensures flawless results, helping you save time while maintaining accuracy in every project. Amaoe SAM11 BGA Reballing Stencil
The Amaoe SAM11 BGA Reballing Stencil is a precision-engineered tool specifically designed for the micro-soldering and repair industry. Known for its high quality and reliability, it is a staple in the toolkit of technicians specializing in Samsung smartphone repairs. Amaoe SAM11 BGA Reballing Stencil
Below is a detailed breakdown of the SAM11 specifications, design philosophy, and technical applications. Amaoe SAM11 BGA Reballing Stencil
Technical Specifications Table
| Feature | Specification Details |
| Model Number | SAM11 (Samsung Series 11) |
| Manufacturer | Amaoe (Huayi Precision) |
| Material | High-Grade 304 Stainless Steel |
| Thickness | 0.12mm to 0.15mm (Optimized for solder paste consistency) |
| Aperture Type | Square Hole (Round-cornered for better paste release) |
| Manufacturing Process | High-Precision Laser Cutting / Chemical Etching |
| Compatibility | Samsung Galaxy S9, S9+, Note 9 (Exynos/Snapdragon variants) |
| Supported ICs | CPU (Exynos 9810), RAM (LPDDR4X), Power ICs (PMIC), Audio Codecs |
| Thermal Properties | High heat resistance; anti-warping technology |
| Finish | Polished surface to prevent solder paste adhesion |
Key Features & Design Philosophy
1. The “Square Hole” Advantage
Amaoe is famous for its square-hole design with rounded corners. Traditional round holes often trap solder paste due to surface tension. The SAM11 design ensures that when you lift the stencil after applying the paste, the “bricks” of solder remain perfectly formed on the IC pads, reducing the risk of bridging or “ghosting.”
2. Precise Thickness (0.12mm)
The thickness of a stencil is a delicate balance. If it’s too thick, you get oversized solder balls that short-circuit; too thin, and the joint is weak. At 0.12mm, the SAM11 provides the exact volume of solder required for the tight pitches found in the Samsung S9/Note 9 generation logic boards. Amaoe SAM11 BGA Reballing Stencil
3. Material Durability
Constructed from imported Japanese steel, these stencils are designed to withstand the rapid thermal expansion that occurs when using a hot air station. This prevents the “bulging” effect that can ruin a reballing attempt mid-way through the process. Amaoe SAM11 BGA Reballing Stencil
Supported Components (IC List)
The SAM11 is a “Multi-IC” stencil, meaning it isn’t just for one chip. It covers the primary “heavy hitters” on the motherboard:
-
Main Processor (CPU): Specifically tailored for the Exynos 9810 or Snapdragon 845 layouts.
-
Memory (RAM): The PoP (Package on Package) RAM that sits directly on top of the CPU.
-
Power Management (PMIC): Multiple smaller grids for the secondary power chips.
-
Storage (UFS): Flash memory chips.
Best Practices for Using the SAM11
To get the most out of this professional-grade tool, follow these industry-standard steps: Amaoe SAM11 BGA Reballing Stencil
-
Cleaning: Ensure the IC and the stencil are 100% free of old flux and debris. Use 99.9% Isopropyl Alcohol (IPA). Amaoe SAM11 BGA Reballing Stencil
-
Alignment: Align the IC under the stencil. The SAM11 features high-transparency steel that makes visual alignment easier under a microscope. Amaoe SAM11 BGA Reballing Stencil
-
Paste Application: Use a high-quality solder paste (e.g., $Sn63/Pb37$ or lead-free $Sn96.5/Ag3.0/Cu0.5$ depending on your preference). Apply with a firm squeegee. Amaoe SAM11 BGA Reballing Stencil
-
Heat Management: Set your hot air station to approximately 330°C – 350°C with low airflow. Hold the stencil down with tweezers to ensure it remains flat during the “reflow” phase. Amaoe SAM11 BGA Reballing Stencil
Pro Tip: If the stencil warps slightly during heating, you are likely applying too much heat too quickly. Use a pre-heater or a lower air-flow setting to allow the metal to expand gradually. Amaoe SAM11 BGA Reballing Stencil
Comparison: Amaoe vs. Standard Stencils
-
Standard Stencils: Often made of cheaper alloys that warp after 5-10 uses. Holes may have burrs that trap solder.
-
Amaoe SAM11: Laser-polished apertures. The “3D” feel of the stencil allows it to “lock” onto the IC, providing a more stable platform for reballing.
