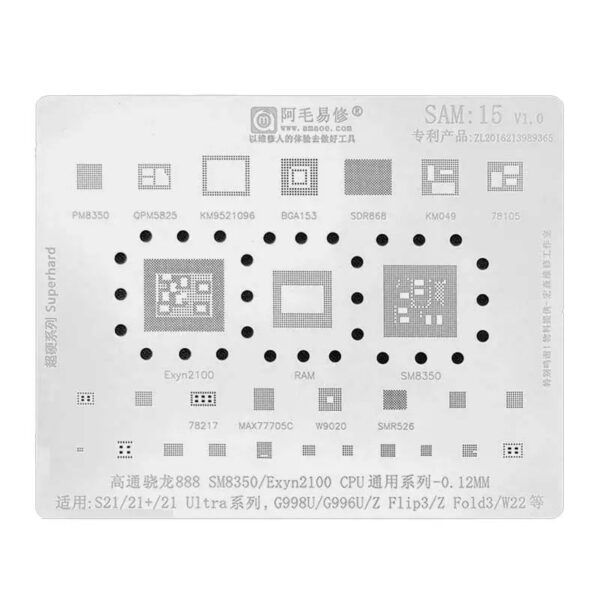

Amaoe SAM15 BGA Reballing Stencil-Original
The Amaoe SAM15 BGA Reballing Stencil-Original is a precision-engineered tool that has become a staple in the kits of professional micro-solderers and mobile repair technicians. Specifically designed for Samsung devices, this stencil is part of Amaoe’s “Original” series, known for its high-heat resistance and exact alignment. Amaoe SAM15 BGA Reballing Stencil-Original
Reballing is the delicate process of replacing the solder spheres on a Ball Grid Array (BGA) chip, usually after a chip has been desoldered from a motherboard for repair or replacement. The SAM15 is a “multi-purpose” or “integrated” stencil, meaning it covers a specific set of ICs (Integrated Circuits) rather than just one. Amaoe SAM15 BGA Reballing Stencil-Original
Technical Specifications Table
| Feature | Details |
| Manufacturer | Amaoe (Authentic/Original Line) |
| Model Number | SAM15 (Samsung Series) |
| Material | High-Quality Japanese 304 Stainless Steel |
| Thickness | 0.12mm to 0.15mm (Optimized for precision) |
| Hole Shape | Square Holes with Rounded Corners (Anti-clumping) |
| Process | High-precision Laser Cutting |
| Supported Models | Samsung S20, S20+, S20 Ultra (and related variants) |
| Supported ICs | CPU (Exynos/Snapdragon), RAM, Power IC (PMIC), Audio, WiFi |
| Heat Resistance | Up to 450°C (Distortion Resistant) |
| Dimensions | Approx. 100mm x 80mm (Standard Amaoe Format) |
Key Features & Design Philosophy
1. The “Rounded Square” Hole Design
Traditional reballing stencils often use circular holes. However, Amaoe pioneered the use of square holes with slightly rounded internal corners. This design serves a vital purpose: it prevents the solder paste from getting “stuck” in the corners of the stencil. When you lift the stencil after heating, the solder balls release cleanly, maintaining their shape and height. Amaoe SAM15 BGA Reballing Stencil-Original
2. High-Grade Japanese Steel
The SAM15 is crafted from 304 stainless steel. This isn’t just for durability; it’s for thermal stability. Cheaper stencils tend to “warp” or “pop” when hit with a heat gun at $350°C$. Amaoe stencils are designed to remain flat under high temperatures, ensuring that the solder balls don’t bridge (connect to each other) during the melting process. Amaoe SAM15 BGA Reballing Stencil-Original
3. Precision Laser Etching
The alignment is the most critical factor in BGA work. The SAM15 features laser-etched markings that allow the technician to align the IC perfectly with the stencil holes. Each hole is positioned with a tolerance of less than $0.01mm$. Amaoe SAM15 BGA Reballing Stencil-Original
Supported Components (IC Breakdown)
The SAM15 is highly sought after because it covers the “Holy Trinity” of Samsung S20 series repairs:
-
The CPU: Whether it’s the Exynos 990 or the Snapdragon 865 (depending on the region), the SAM15 provides the exact grid layout for the primary processor.
-
The RAM: Modern smartphones use a “Package on Package” (PoP) design where the RAM sits on top of the CPU. The SAM15 includes the patterns for reballing the RAM separately.
-
Power Management (PMIC): Often the culprit in “dead” phones, the power ICs on the S20 series have very tight pitches (the distance between balls), which the SAM15 handles with ease.
Best Practices for Using the SAM15
To get the most out of this professional-grade tool, follow these industry-standard steps:
-
Preparation: Clean the IC thoroughly using a soldering iron and wick to ensure the surface is perfectly flat.
-
Alignment: Place the IC under the SAM15. Use a microscope to ensure every pad on the chip is centered in the stencil holes.
-
Paste Application: Apply a high-quality solder paste (usually 183°C or 138°C Lead-free/Leaded depending on the repair type). Use a firm spatula to press the paste into the holes.
-
Heating: Use a hot air station at a low airflow setting. Direct the heat evenly across the stencil. You will see the dull gray paste turn into shiny, silver spheres.
-
Cooling & Release: Allow the stencil to cool for 5–10 seconds before gently lifting. If any balls stick, a small amount of flux and a quick “re-flow” will usually fix the issue.
Why Choose SAM15 Over Generic Stencils?
Using a generic stencil often leads to “bridging” or “incomplete balls,” which can permanently damage a $1,000 smartphone. The Amaoe SAM15 is widely considered the gold standard because of its stencil thickness. At roughly 0.12mm, it provides just enough solder volume to create a strong connection without being so thick that it causes shorts between the incredibly small pads of the S20’s motherboard. Amaoe SAM15 BGA Reballing Stencil-Original
High-Quality Design for Precision Repair
Introducing the Amaoe SAM15 BGA Reballing Stencil, a meticulously crafted tool designed to meet the demands of professional device repair. With superior durability and an expert focus on precision, this stencil ensures smooth and accurate reballing processes for BGA chips, making it an essential addition to your toolkit. Amaoe SAM15 BGA Reballing Stencil-Original
Durable Material for Long-Term Use
Made with high-grade stainless steel, the Amaoe SAM15 BGA Reballing Stencil offers unmatched resilience against wear and tear. This material ensures consistent performance, enabling you to carry out multiple repair sessions without compromise on quality. Amaoe SAM15 BGA Reballing Stencil-Original
Perfect Fit for Various Applications
Whether you’re repairing smartphones, laptops, or other electronic devices, the Amaoe SAM15 stencil adapts seamlessly to your needs. Its carefully engineered design meets industry standards, guaranteeing compatibility and ease of use for both beginners and advanced technicians. Amaoe SAM15 BGA Reballing Stencil-Original
