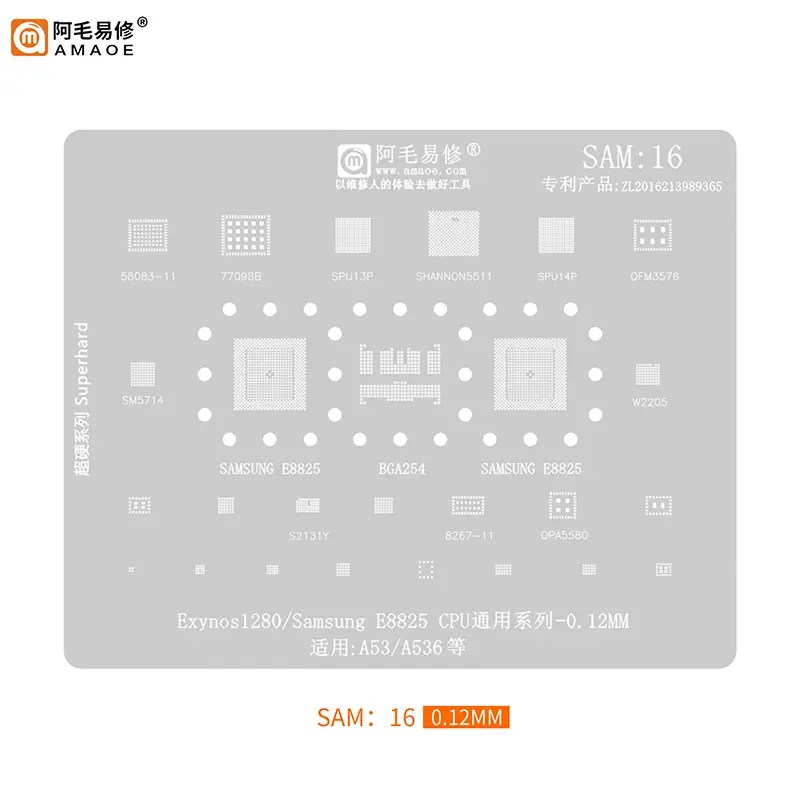

Amaoe SAM16 BGA Reballing Stencil-Original
High-Quality Performance for BGA Reballing
The Amaoe SAM16 BGA Reballing Stencil-Original is a reliable solution designed specifically for BGA chip reballing. Crafted with precision, this stencil ensures accurate alignment and quick application, making it a go-to tool for professionals and DIY enthusiasts. Amaoe SAM16 BGA Reballing Stencil-Original
Durable and Easy to Use
Manufactured using high-grade materials, the SAM16 stencil offers exceptional durability and resistance to wear. Its user-friendly design simplifies the reballing process, helping you achieve consistent results with minimal effort. Amaoe SAM16 BGA Reballing Stencil-Original
Designed for Efficiency
Whether you’re working on delicate electronics or robust system repairs, the Amaoe SAM16 stencil streamlines your workflow. Save time and enhance productivity by choosing a tool trusted by technicians for quality performance and reliability. Amaoe SAM16 BGA Reballing Stencil-Original
The Amaoe SAM16 BGA Reballing Stencil is a precision-engineered tool that has become a staple in the kits of professional micro-solderers and mobile repair technicians. Specifically designed for the Samsung ecosystem, the SAM16 series targets high-performance chipsets, including CPUs, RAM, and power management ICs (PMICs). Amaoe SAM16 BGA Reballing Stencil-Original
Below is a detailed breakdown of its specifications, design philosophy, and technical applications. Amaoe SAM16 BGA Reballing Stencil-Original
Technical Specifications Table
| Feature | Specification Details |
| Model Name | Amaoe SAM16 (Samsung Series) |
| Material | High-Grade Imported 304 Stainless Steel |
| Manufacturing Process | High-Precision Laser Cutting & CNC Etching |
| Stencil Thickness | 0.12mm (Standardized for Samsung BGA) |
| Hole Design | Square Holes with Rounded Corners (Anti-Bulge) |
| Heat Resistance | Up to 450°C (Optimized for 183°C – 217°C Solder Pastes) |
| Supported Chipsets | Exynos CPUs, Snapdragon (Samsung variants), LPDDR RAM |
| Specific Device Compatibility | Samsung Galaxy S20, S21, Note 20 Series (and related variants) |
| Grid Alignment | High-Density Pitch (0.2mm to 0.5mm depending on IC) |
| Surface Finish | Matte Anti-Glare (Reduces eye strain under microscope) |
Key Features & Design Innovations
1. The “Anti-Bulge” Square Hole Design
One of the most frustrating aspects of reballing is the “stencil pop”—where heat causes the metal to expand and warp, ruining the alignment of the solder balls. Amaoe utilizes a specialized square-hole design with slightly rounded internal corners.
-
Why it matters: This shape allows the solder paste to release more cleanly than traditional circular holes. It also provides “expansion joints” within the grid to absorb thermal stress, keeping the stencil flat against the chip during the heating process.
2. Precision 0.12mm Thickness
In the world of BGA (Ball Grid Array) repair, thickness is everything. Amaoe SAM16 BGA Reballing Stencil-Original
-
If the stencil is too thick, the solder balls become too large and bridge together. Amaoe SAM16 BGA Reballing Stencil-Original
-
If it’s too thin, the balls won’t make a solid connection to the PCB. The 0.12mm thickness of the SAM16 is the “Goldilocks” zone for Samsung’s high-density chips, ensuring uniform ball height across the entire $30 \times 30$ or larger grids. Amaoe SAM16 BGA Reballing Stencil-Original
3. Material Durability
Constructed from 304 Stainless Steel, the SAM16 is resistant to corrosion and chemical cleaners like Isopropyl Alcohol (IPA) or flux removers. The steel is tempered to provide enough flexibility to “pop” the chip out after reballing without permanently deforming the stencil. Amaoe SAM16 BGA Reballing Stencil-Original
Compatible ICs and Models
The SAM16 is not a “universal” stencil in the sense that it fits everything, but it is a “comprehensive” stencil for specific generations of Samsung hardware. It typically includes patterns for:
-
CPU/GPU Stacks: For the Exynos and Snapdragon processors found in flagship devices.
-
LPDDR RAM: The top layer of the “PoP” (Package on Package) sandwich.
-
Storage (UFS): High-speed flash memory chips.
-
Power Management (PMIC): The chips responsible for battery charging and voltage regulation.
Best Practices for Using SAM16
To achieve a 100% success rate with this specific stencil, technicians should follow these parameters:
-
Solder Paste Selection: Use a high-quality “No-Clean” solder paste with a particle size of Type 4 or Type 5. Type 4 ($20-38 \mu m$) works well, but Type 5 is preferred for the ultra-fine pitch found on the SAM16.
-
Temperature Control: Set your hot air station to approximately 330°C to 350°C with low airflow. The goal is to melt the paste ($183^{\circ}C$ for leaded) without blowing the stencil off the chip.
-
Alignment: Because the SAM16 uses laser-cut precision, even a $0.05mm$ offset can cause a failure. Always align under a microscope.
Why Choose Amaoe?
Amaoe has carved out a reputation for being the “technician’s choice” over cheaper, generic alternatives. While generic stencils often use inferior alloys that warp after two uses, the SAM16 is designed for high-volume repair environments. The matte finish is a subtle but vital touch; it prevents the harsh LED ring lights of microscopes from reflecting back into the user’s eyes, allowing for longer, more accurate work sessions.
