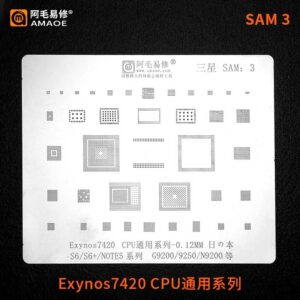

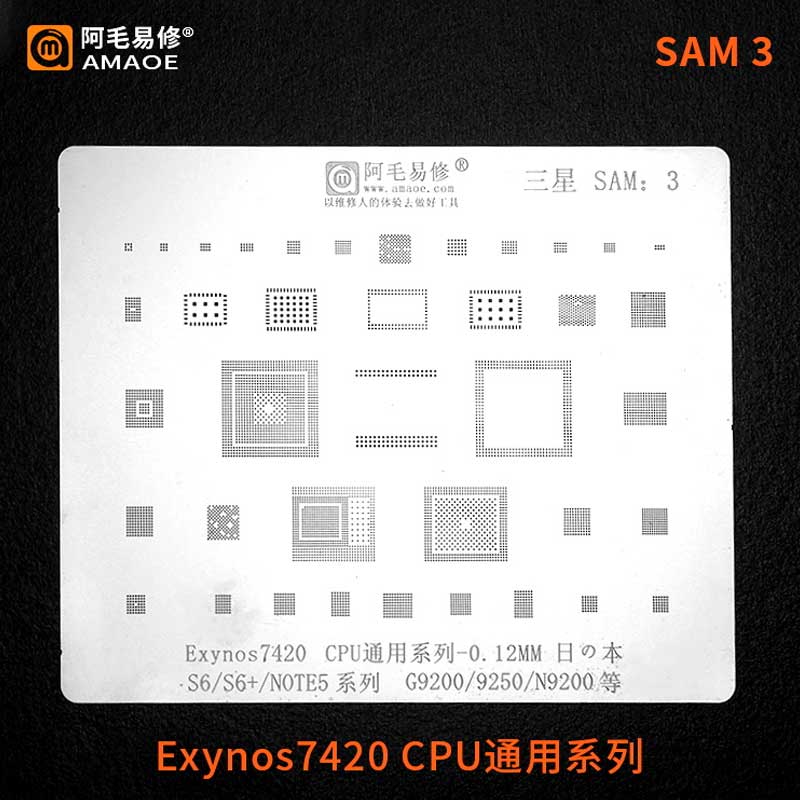

Amaoe SAM3 BGA Reballing Stencil-Original
Precision You Can Count On
The Amaoe SAM3 BGA Reballing Stencil-Original is designed to deliver impeccable results for all your chip reballing projects. This stencil ensures perfect alignment, accuracy, and a seamless reballing experience, making it an indispensable tool for professionals and enthusiasts alike. Amaoe SAM3 BGA Reballing Stencil-Original
Durable and Reliable
Built from high-quality, heat-resistant material, the Amaoe SAM3 is engineered for durability and long-term performance. Its robust design withstands repeated uses, ensuring precise outcomes every single time without fail. Amaoe SAM3 BGA Reballing Stencil-Original
Versatile Compatibility
This stencil supports a wide range of BGA chip models, making it a versatile choice for diverse electronics repair and maintenance jobs. Get consistent and professional results across multiple board types, hassle-free. Amaoe SAM3 BGA Reballing Stencil-Original
Whether you’re an experienced technician or a DIY enthusiast, the Amaoe SAM3 BGA Reballing Stencil is the tool you need to elevate your workstation and ensure precision in every task.
1. Overview of the Amaoe SAM3 Stencil
The Amaoe SAM3 is a high-precision BGA (Ball Grid Array) reballing stencil specifically engineered for Samsung Exynos and Snapdragon processors, along with their associated RAM and power management ICs. Unlike generic “multi-purpose” stencils, the SAM3 is part of Amaoe’s “Original Full” series, meaning it is designed with exact 1:1 scale hole positioning based on factory schematics. Amaoe SAM3 BGA Reballing Stencil-Original
What is Reballing?
Reballing is the process of replacing the solder spheres on a chip. This is necessary when a device suffers from “cold joints,” physical drops, or heat-induced degradation. The SAM3 acts as the template to ensure that $0.2mm$ to $0.4mm$ solder balls are placed with sub-micron accuracy.
2. Technical Specifications Table
Below are the core specifications for the Amaoe SAM3.
| Feature | Specification |
| Brand | Amaoe (High-End Repair Series) |
| Model | SAM3 (Samsung Series #3) |
| Material | Japanese Imported High-Strength 304 Stainless Steel |
| Thickness | $0.12mm$ to $0.15mm$ (Standardized for uniform heat) |
| Hole Type | Square Hole with Rounded Corners (Anti-Stuck Design) |
| Manufacturing Process | High-Speed Laser Cutting / Chemical Etching |
| Compatibility | Samsung S6, S6+, Note 5, G9200, G9250, N9200 |
| Primary IC Support | Exynos 7420, RAM, PMIC, EMMC/UFS Storage |
| Heat Resistance | Up to $450°C$ without permanent deformation |
| Surface Finish | Matte Anti-Glare (Reduced Eye Strain) |
3. Deep Dive: Design & Material Science
The Steel Composition
The SAM3 is manufactured using imported Japanese 304 stainless steel. This isn’t just a marketing buzzword; the choice of material is critical for two reasons:
-
Thermal Expansion: When you hit a stencil with a heat gun at $350°C$, metal expands. Cheap stencils “bubble” or warp, causing solder paste to leak between the stencil and the chip. The SAM3 maintains its flatness across high temperature gradients. Amaoe SAM3 BGA Reballing Stencil-Original
-
Flexibility: It needs to be rigid enough to hold its shape but flexible enough to be “peeled” off the chip after the solder has cooled without shearing the newly formed balls.
The “Square Hole” Innovation
If you look closely at the SAM3, the holes are not perfectly circular. They are square with slightly rounded corners.
-
The Logic: Circular holes often trap solder paste due to surface tension. Amaoe SAM3 BGA Reballing Stencil-Original
-
The Result: Square holes allow for better “release.” When you lift the stencil, the solder paste stays on the chip rather than getting pulled back up into the stencil. Amaoe SAM3 BGA Reballing Stencil-Original
4. Supported Chipsets & Device Compatibility
The “SAM3” designation specifically targets the generation of Samsung devices that pioneered the Universal Flash Storage (UFS) and high-density PoP (Package on Package) RAM.
Key IC Coverage:
-
CPU: Exynos 7420 (The heart of the S6 generation).
-
RAM: LPDDR4 PoP chips that sit directly on top of the CPU.
-
Power Management: Various PMIC chips that handle the complex rail voltages for OLED displays.
-
Storage: BGA-type EMMC and UFS memory chips.
5. Professional Application Workflow
To get the most out of a high-spec tool like the SAM3, the process must be precise.
Step 1: Preparation
The chip must be cleaned of all old solder using a soldering iron and desoldering wick. The surface should be flat and cleaned with Isopropyl Alcohol (IPA). Amaoe SAM3 BGA Reballing Stencil-Original
Step 2: Alignment
Because the SAM3 is a “Full Specification” stencil, the alignment is incredibly tight. Technicians usually use a microscope to ensure every pad on the chip is perfectly centered in the stencil hole.
Step 3: Paste Application
Using a spatula, 183°C Leaded Solder Paste (or 138°C for sensitive components) is spread across the stencil. The SAM3’s $0.12mm$ thickness ensures that the volume of paste deposited is exactly enough to form a perfect sphere. Amaoe SAM3 BGA Reballing Stencil-Original
Step 4: Reflow
A hot air station is set to approximately $320°C$ – $350°C$ with low airflow. The SAM3’s heat-dissipation properties allow the solder to liquefy and “ball up” simultaneously across the entire grid. Amaoe SAM3 BGA Reballing Stencil-Original
6. Maintenance and Longevity
To ensure the SAM3 lasts through hundreds of repairs, it requires specific care:
-
Cleaning: Never use a metal scraper to clean the stencil. Use a soft nylon brush and IPA.
-
Storage: Keep it flat. Even a small kink in the steel can render the $0.12mm$ precision useless.
-
Heat Management: Avoid “spot heating” one corner for too long. Move the heat gun in circles to distribute the thermal load.
7. Comparison: Amaoe vs. Generic Stencils
| Feature | Amaoe SAM3 | Generic “Blue” Stencils |
| Heat Warp | Minimal | High (prone to “bubbling”) |
| Precision | Laser-cut (Sharp) | Acid-etched (Tapered/Rough) |
| Release | Excellent (Square holes) | Poor (Round holes trap paste) |
| Durability | High (Multi-year) | Low (Discards after 5-10 uses) |
8. Summary of Value
The Amaoe SAM3 Original Full Specification Stencil is an investment in “first-time-fix” rates. In micro-soldering, the cost of the tool is negligible compared to the cost of a ruined $800 logic board. By using high-grade Japanese steel and specialized hole geometry, Amaoe has created a tool that compensates for the minor inconsistencies in a technician’s manual technique.
Whether you are performing a CPU swap or fixing a “No Power” issue on a Galaxy Note 5, the SAM3 provides the structural integrity and thermal stability required for professional-grade BGA repair.
