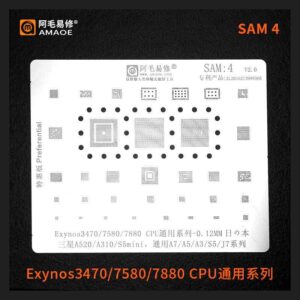

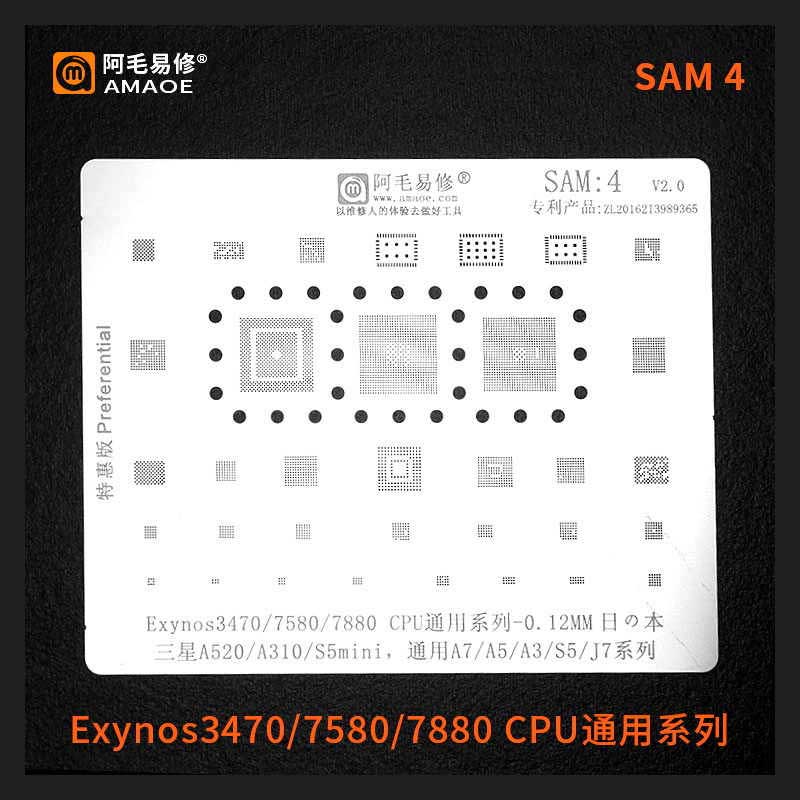

Amaoe SAM4 BGA Reballing Stencil-Original
Achieve Precision with the Amaoe SAM4 BGA Reballing Stencil
The Amaoe SAM4 BGA Reballing Stencil-Original is a must-have tool for professionals seeking accuracy and ease in their reballing tasks. Designed for reliability, this stencil ensures precise alignment and consistent results every time you use it. Amaoe SAM4 BGA Reballing Stencil-Original
Durable and High-Quality Material
Made from durable, high-grade material, the Amaoe SAM4 stencil is built to withstand extensive use. Its robust design ensures it retains its form, even with repeated applications, offering superior performance over time. Amaoe SAM4 BGA Reballing Stencil-Original
Perfect for Professionals and Enthusiasts
Whether you’re a repair technician or an electronics enthusiast, this stencil simplifies your reballing workflow. With its ergonomic design and seamless compatibility, the Amaoe SAM4 makes intricate tasks more manageable. Amaoe SAM4 BGA Reballing Stencil-Original
1. Product Overview: Amaoe SAM4 Series
The Amaoe SAM4 is a high-precision BGA (Ball Grid Array) reballing stencil specifically engineered for the Samsung Exynos and Snapdragon ecosystem. Unlike “universal” stencils, the SAM4 is a dedicated set designed to match the exact pitch and land pattern of specific Samsung-integrated circuits. Amaoe SAM4 BGA Reballing Stencil-Original
Key Technical Attributes
-
Material: High-grade 304 Stainless Steel (Annealed). Amaoe SAM4 BGA Reballing Stencil-Original
-
Manufacturing Process: Laser-cut square holes with tapered walls (Trapezoidal cross-section). Amaoe SAM4 BGA Reballing Stencil-Original
-
Application: Re-tinning/Re-balling of CPU, RAM, and Power Management ICs (PMIC). Amaoe SAM4 BGA Reballing Stencil-Original
2. Full Technical Specifications Table
| Feature Category | Specification Detail |
| Model Number | Amaoe SAM4 (Samsung Dedicated Series) |
| Material Composition | Japanese Imported SUS304 Stainless Steel |
| Stencil Thickness | 0.12mm (Standardized for Samsung 0.3mm-0.4mm pitch) |
| Hole Geometry | Square holes with CNC-rounded corners (Prevents solder paste clogging) |
| Wall Profile | 5°–8° Tapered walls (Wide bottom, narrow top for easy release) |
| Thermal Resistance | Up to 450°C (Recommended working temp: 180°C – 260°C) |
| Tensile Strength | 520 MPa (High elasticity to prevent permanent warping) |
| Surface Finish | Electro-polished (Anti-stick coating) |
| Supported Pitch Range | 0.25mm, 0.3mm, 0.35mm, 0.4mm |
| Compatible Devices | Samsung S8, S8+, S9, S9+, Note Series (Exynos/Snapdragon variants) |
3. Detailed Component Support (SAM4 Matrix)
The SAM4 is specifically praised for its “Full Fit” layout. Here is a breakdown of the specific chips typically found on the SAM4 stencil:
CPU & RAM Layers
The SAM4 focuses on the “sandwich” architecture (PoP – Package on Package).
-
Exynos 8895: Found in S8/Note 8 variants.
-
Snapdragon 835 (MSM8998): Global/US variants.
-
LPDDR4x RAM: Top-tier memory chips that sit directly on the CPU.
Power & Logic ICs
-
MAX77865 / MAX77833: Power Management ICs (PMIC).
-
WIFI/BT Modules: High-density pinouts for Broadcom/Samsung wireless chips.
-
Audio Codec: Small-footprint BGA patterns.
4. Engineering Deep Dive: Why These Specs Matter
The 0.12mm Thickness Standard
In BGA rework, thickness is everything. If a stencil is too thick (0.15mm+), the solder balls become too large, leading to bridges (shorts) under the chip. If it is too thin (0.10mm), the solder volume is insufficient, leading to “cold” or “dry” joints. The 0.12mm thickness of the SAM4 is the “Goldilocks” zone for Samsung’s modern high-density interconnects.
Laser Cutting vs. Chemical Etching
Amaoe uses high-speed fiber laser cutting. Unlike chemical etching, which can leave “undercuts” (curved walls that trap solder), laser cutting creates a clean, tapered exit.
Pro Tip: The square holes in the SAM4 are slightly rounded at the corners. This is intentional. Solder paste is a viscous fluid; sharp 90-degree corners create surface tension that makes the paste stick to the stencil. Rounded corners ensure the “bricks” of paste stay on the chip when you lift the stencil.
5. Thermal Management & Warping
One of the biggest frustrations in reballing is the “Pringle Effect”—where the stencil heat-warps into a curve.
-
Expansion Coefficient: The SAM4 uses steel with a low thermal expansion coefficient.
-
Heat Dissipation: The stencil is designed with “cooling vents” (non-functional holes) or specific spacing between IC patterns to allow the metal to expand evenly without bowing upward.
6. Usage & Maintenance Guidelines
To maintain the specifications listed above, the following protocols are recommended:
-
Cleaning: Use 99.9% Isopropyl Alcohol (IPA) and a soft-bristled ESD brush. Never use metal scrapers, as they will scratch the electro-polished surface.
-
Paste Application: Use “Middle Temperature” solder paste (e.g., $Sn63/Pb37$ or $Sn62/Pb36/Ag2$) with a melting point of approximately 183°C.
-
Alignment: Use a microscope. Even a 0.05mm misalignment on an Exynos CPU will result in a failed boot.
7. Comparative Analysis: Amaoe vs. Generic Stencils
| Feature | Amaoe SAM4 | Generic “Green” Stencils |
| Alignment | 1:1 Precise Mapping | Often slightly offset |
| Material | SUS304 (Tough) | Low-grade Steel (Soft) |
| Hole Finish | Polished/Tapered | Rough/Straight |
| Longevity | 500+ Reballs | 20-50 Reballs (due to warping) |
Summary
The Amaoe SAM4 is an essential piece of kit for Level 3 motherboard technicians. Its 0.12mm Japanese steel construction and laser-perfected hole geometry provide the consistency needed for high-stakes repairs on Samsung flagship devices. By maintaining strict tolerances in hole pitch and wall taper, it minimizes the most common failure in reballing: solder bridging.
