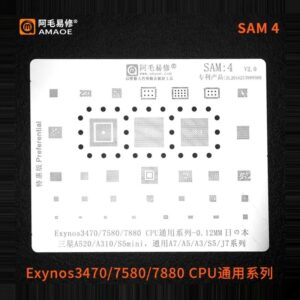

Amaoe SAM4 BGA Stencil-Original 0.15mm
High-Precision Design
The Amaoe SAM4 BGA Stencil-Original 0.15mm is expertly crafted for precise and efficient chip rework. With its high-accuracy design and ultra-thin 0.15mm profile, this stencil ensures seamless alignment and a professional repair finish every time. Amaoe SAM4 BGA Stencil-Original 0.15mm
Durable and Reliable Material
Made from premium-grade stainless steel, this BGA stencil offers exceptional durability while maintaining its lightweight structure. Its resistance to wear and rust guarantees long-lasting performance, even under frequent use. Amaoe SAM4 BGA Stencil-Original 0.15mm
Universal Application
Compatible with various chip repair projects, the Amaoe SAM4 stencil is perfect for technicians and DIY enthusiasts alike. Whether you’re working on smartphones, laptops, or other microelectronics, this tool ensures precision and ease during repairs. Amaoe SAM4 BGA Stencil-Original 0.15mm
The Amaoe SAM4 BGA Stencil (Original 0.15mm) is a professional-grade precision tool specifically engineered for the reballing and repair of Samsung Exynos-based smartphone processors and power management ICs. Known for its high-heat resistance and anti-drumming design, it is a staple in advanced micro-soldering laboratories. Amaoe SAM4 BGA Stencil-Original 0.15mm
Below are the comprehensive technical specifications and details for this model. Amaoe SAM4 BGA Stencil-Original 0.15mm
## Technical Specifications: Amaoe SAM4 BGA Stencil
| Feature | Specification Details |
| Brand | Amaoe (Authentic/Original) |
| Model Series | SAM Series (Samsung Specific) |
| Model Number | SAM4 (Exynos/Power IC Dedicated) |
| Thickness | 0.15mm (Optimized for larger Samsung ICs) |
| Material | High-Grade Japanese Stainless Steel (Non-magnetic) |
| Manufacturing Process | Precision Laser Cutting with Micro-polishing |
| Aperture Type | Square Hole (Tapered for easy paste release) |
| Heat Resistance | Up to 450°C (Anti-deformation/Anti-bulging) |
| Compatibility | Samsung A-series, S-series, J-series (Legacy & Mid-range) |
| Primary IC Support | Exynos 7880, 7580, 3470, and related PMICs |
| Dimensions | Approx. 100mm x 80mm |
| Weight | ~0.02 kg |
## Supported IC & Device Compatibility
The SAM4 variant is particularly famous for its support of the “Golden Era” Samsung Exynos chips. Unlike universal stencils, the SAM4 features custom-aligned holes for:
-
Samsung Galaxy A Series: A3, A5, A7 (e.g., A310, A520 models)
-
Samsung Galaxy S Series: S5 Mini
-
Samsung Galaxy J Series: J7 (various versions)
-
Specific Chipsets:
-
CPU: Exynos 7880, 7580, 3470
-
Power: Various Power Management ICs (PMICs) associated with these logic boards.
-
## Key Product Features
-
Anti-Drumming Design: The stencil is designed with a specific tension profile to prevent the “drum effect” (bulging) when high heat is applied. This ensures the stencil stays flat against the IC during the soldering process. Amaoe SAM4 BGA Stencil-Original 0.15mm
-
Square Hole Technology: Amaoe uses square apertures with slightly rounded corners. This allows the solder paste to release more cleanly than traditional circular holes, leading to uniform ball heights. Amaoe SAM4 BGA Stencil-Original 0.15mm
-
Heat-Sink Properties: The 0.15mm thickness provides a perfect balance. It is thick enough to resist warping under a hot air gun but thin enough to allow rapid heat transfer to the solder paste. Amaoe SAM4 BGA Stencil-Original 0.15mm
-
Chemical Resistance: The high-quality steel is resistant to the aggressive fluxes found in high-performance solder pastes, preventing corrosion and ensuring a long service life. Amaoe SAM4 BGA Stencil-Original 0.15mm
## Recommended Usage Parameters
To maximize the lifespan of your original Amaoe stencil and achieve a 100% success rate:
-
Solder Paste: Use a high-quality Sn63/Pb37 (183°C) or Sn42/Bi58 (138°C) paste depending on the IC sensitivity.
-
Air Temperature: Set your rework station between 330°C and 360°C for leaded paste.
-
Air Flow: Keep airflow low to medium (20–40%) to prevent the stencil from lifting or the paste from blowing out of the apertures.
-
Cleaning: Clean with 99% Isopropyl Alcohol (IPA) and a soft-bristle brush immediately after use to prevent paste hardening in the holes.
## Why Choose the 0.15mm Over 0.12mm?
While many modern CPU stencils (like the SAM15+) use a 0.12mm thickness for ultra-fine pitch chips, the SAM4 at 0.15mm is preferred for older or mid-range Exynos chips. These ICs often have slightly larger solder pads and wider pitches; the 0.15mm thickness allows for a larger solder ball volume, ensuring a more robust mechanical and electrical connection between the chip and the PCB. Amaoe SAM4 BGA Stencil-Original 0.15mm
