Amaoe SAM5 Bga Reballing Stencil-Original
Exceptional Quality for Precision Tasks
The Amaoe SAM5 Bga Reballing Stencil-Original is your reliable partner for precision soldering tasks. Designed for professionals and repair enthusiasts, this stencil ensures unparalleled accuracy when working on intricate reballing projects.
Durable and Long-Lasting Build
Crafted with high-quality materials, the Amaoe SAM5 stencil delivers durability and reliable performance, even with frequent use. Its sturdy construction guarantees consistent results for all your BGA reballing needs, saving both time and effort.
Easy to Use for a Professional Finish
This stencil’s user-friendly design simplifies the reballing process, whether you’re repairing small components or tackling detailed circuit board tasks. Achieve a professional-grade finish every time with this expertly engineered tool.
Amaoe SAM5 BGA Reballing Stencil: Technical Overview

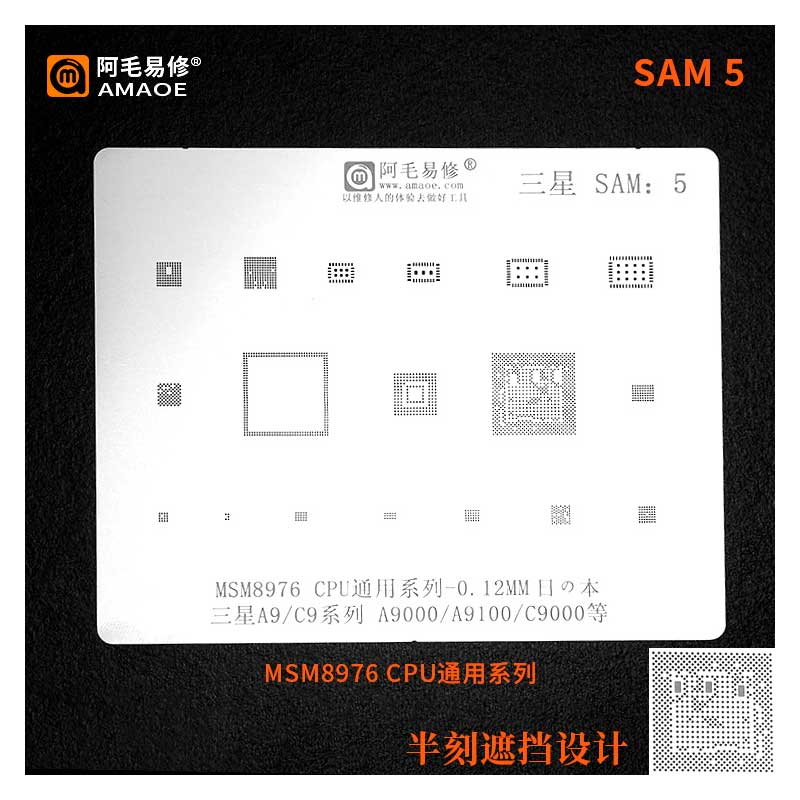

The SAM5 is part of Amaoe’s “Original” series, widely considered the gold standard in the micro-soldering industry. It is specifically designed for the Samsung Exynos and Snapdragon chipsets found in high-end Galaxy devices.
Full Technical Specifications
| Feature | Specification Detail |
| Manufacturer | Amaoe (Huamao Precision) |
| Model Series | SAM: 5 (Samsung Specific) |
| Material | High-Quality Japanese Imported 304 Stainless Steel |
| Stencil Thickness | 0.12mm (Standard for uniform heat distribution) |
| Hole Type | Square Hole (Round-cornered) for better paste release |
| Manufacturing Process | High-precision Laser Cutting & Electro-polishing |
| Heat Resistance | Up to 450°C (sustained) / 600°C (peak) |
| Supported Chipsets | CPU, RAM, Power IC (PMIC), and Storage (UFS) |
| Compatible Brands | Samsung Galaxy S series, Note series, A series |
| Anti-Warping Tech | Thermal expansion relief grooves |
Key Components & Chipset Support
The SAM5 isn’t just one hole pattern; it is a multi-stencil plate. Here is a breakdown of the specific chips this stencil is engineered to reball:
-
CPU/RAM Stack: Optimized for the PoP (Package on Package) design used in Samsung flagship processors. Amaoe SAM5 Bga Reballing Stencil-Original
-
Exynos Series: Support for mid-to-high tier Exynos 9810, 9820, and 9825 variants. Amaoe SAM5 Bga Reballing Stencil-Original
-
Qualcomm Snapdragon: Patterns for the Snapdragon 845 and 855 architectures. Amaoe SAM5 Bga Reballing Stencil-Original
-
Power Management (PMIC): Precision patterns for Hi-Power and Sub-PMIC chips.
-
Universal BGA: Various pitch sizes ($0.3mm$ to $0.5mm$) for miscellaneous logic ICs.
Why the SAM5 is a Industry Favorite
To understand the value beyond the table, we have to look at the metallurgical engineering involved:
1. The “Square Hole” Advantage
Most cheap stencils use circular holes. Amaoe uses square holes with rounded corners. When you apply solder paste, the square shape allows for a higher volume of paste, while the rounded corners ensure the “slug” of paste releases cleanly without sticking to the stencil walls. Amaoe SAM5 Bga Reballing Stencil-Original
2. Heat Sink Grooves
If you look closely at a SAM5, you’ll see tiny etched lines between the chip patterns. These are expansion joints. When you hit the stencil with a $350^\circ\text{C}$ heat gun, metal naturally expands. These grooves allow the metal to expand outward rather than upward, preventing the dreaded “stencil bulge” that causes solder bridges. Amaoe SAM5 Bga Reballing Stencil-Original
3. 0.12mm Thickness Precision
Thickness is the most debated spec in reballing.
-
0.10mm: Often too thin; warps easily.
-
0.15mm: Often too thick; results in solder balls that are too large, causing shorts.
-
0.12mm (SAM5): The “Goldilocks” zone. It provides enough structural integrity to stay flat while ensuring the solder ball height is perfectly spec’d for Samsung’s tight motherboard tolerances.
Usage Professional Tips
Note: Even with a high-end Amaoe stencil, your technique matters. Always clean the stencil with 99% IPA (Isopropyl Alcohol) before and after use to ensure no flux residue clogs the $0.12mm$ apertures. Amaoe SAM5 Bga Reballing Stencil-Original
-
Solder Paste Choice: Use a high-quality “No-Clean” paste with a $183^\circ\text{C}$ melting point (Leaded) for the best results with this stencil. Amaoe SAM5 Bga Reballing Stencil-Original
-
Heat Profile: Use a nozzle that covers the entire chip area. For the SAM5, a temperature of 320°C – 350°C with low airflow is recommended to prevent the stencil from lifting. Amaoe SAM5 Bga Reballing Stencil-Original
