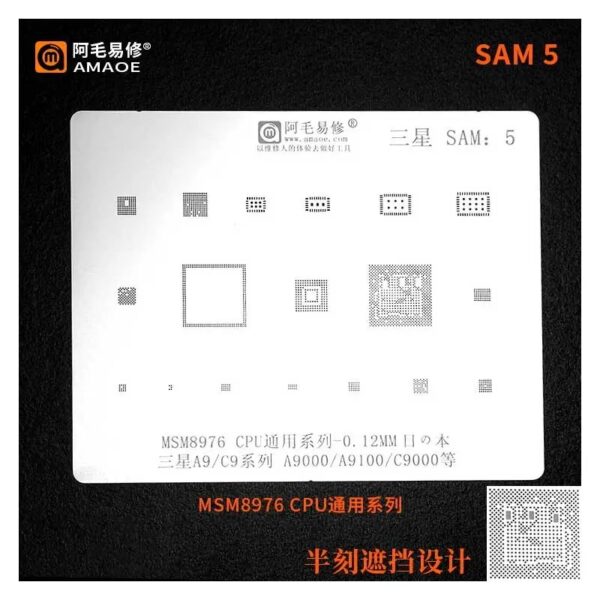

Amaoe SAM5 BGA Reballing Stencil-Original
Enhance Repair Efficiency with the Amaoe SAM5
Looking for a reliable and efficient tool for IC reballing? The Amaoe SAM5 BGA Reballing Stencil-Original is expertly engineered to deliver precision and durability, making it an ideal choice for both professionals and hobbyists. Amaoe SAM5 BGA Reballing Stencil-Original
Unmatched Quality and Accuracy
Constructed with high-quality materials, this stencil is designed to ensure accurate alignment during the chip repair process. Whether you’re dealing with complex boards or delicate components, the Amaoe SAM5 offers superior precision, enabling smoother workflows and consistent results. Amaoe SAM5 BGA Reballing Stencil-Original
Designed for Convenience
Lightweight and easy to handle, the Amaoe SAM5 BGA Reballing Stencil is tailored to simplify the IC reballing process. Its user-friendly design reduces setup time, allowing you to focus on achieving excellent outcomes.Amaoe SAM5 BGA Reballing Stencil-Original
Choose the Amaoe SAM5 BGA Reballing Stencil for any reballing requirements—a trusted tool that combines quality and functionality perfectly for your repair needs. Amaoe SAM5 BGA Reballing Stencil-Original
The Amaoe SAM5 BGA Reballing Stencil is a professional-grade precision tool specifically engineered for high-end Samsung smartphone repairs. It belongs to the “SAM” series of stencils from Amaoe, a brand recognized globally by micro-soldering technicians for its “square hole” design, which significantly reduces the risk of solder bridges and ensures uniform ball height. Amaoe SAM5 BGA Reballing Stencil-Original
The SAM5 model is a dedicated template for the A9 and C9 series, supporting critical components like the CPU and power management ICs. Below is the comprehensive breakdown of its technical specifications and features. Amaoe SAM5 BGA Reballing Stencil-Original
Technical Specifications: Amaoe SAM5
| Feature | Detailed Specification |
| Brand | Amaoe (Authentic/Original) |
| Model Number | SAM:5 (Samsung Series 5) |
| Material | High-Grade Japanese Imported Stainless Steel |
| Stencil Thickness | 0.12 mm |
| Aperture Type | High-Precision Laser-Cut Square Holes |
| Aperture Design | Micro-chamfered edges to prevent solder paste sticking |
| Heat Resistance | Up to 450°C (Anti-bulge/Anti-deformation) |
| Compatible Models | Samsung Galaxy A9, A9000, A9100, C9, C9000 |
| Supported ICs | CPU, RAM, Power IC (PMIC), and secondary BGA chips |
| Application | BGA Chip Reballing, Tin Planting, Motherboard Repair |
| Dimensions | Approximately 100mm x 80mm |
| Net Weight | ~0.01 kg |
Key Features & Professional Advantages
1. Precision Square-Hole Technology
Unlike traditional round-hole stencils where solder paste can get trapped in the corners or create uneven beads, Amaoe uses a square-hole pattern. This allows the solder balls to form more consistently and facilitates easier stencil removal after heating, as the surface area contact is optimized for release.
2. High-Temperature Stability
The SAM5 is manufactured using a specialized CNC process and high-quality steel that resists thermal expansion. During the reballing process, where a hot air gun is used to melt the solder paste, cheaper stencils often “bulge” or warp, causing the solder balls to merge. The SAM5 maintains its flatness even under sustained high heat.
3. Optimized Thickness ($0.12\text{ mm}$)
The $0.12\text{ mm}$ thickness is widely considered the “sweet spot” for mobile BGA repair. It provides enough solder paste volume to create sturdy, reliable connections without being so thick that it causes shorts between the tiny, high-density pads found on Samsung A9/C9 logic boards.
4. Alignment & Efficiency
The stencil includes precise silk-screened markings and alignment guides that match the component layout of the Samsung A9000/C9000 series perfectly. This reduces the time spent on manual positioning, allowing technicians to perform “tin planting” in a single pass.
Usage Recommendations
To maintain the longevity and “Original” performance of your Amaoe SAM5 stencil, follow these industry best practices:
-
Cleaning: Always clean the stencil with PCB cleaner or 99% Isopropyl Alcohol (IPA) immediately after use. Dried solder paste in the apertures is the leading cause of failed reballing attempts.
-
Paste Application: Use a high-quality solder paste (e.g., $183\text{°C}$ or $138\text{°C}$ depending on the IC sensitivity). Apply with a flat scraper at a $45\text{°}$ angle.
-
Storage: Store the stencil flat in its original sleeve or a protective folder. Even slight bends in the steel can ruin the alignment for high-pin-count CPUs.
