Amaoe SAM6 BGA Reballing Stencil-Original
Unparalleled Precision for BGA Reballing
The Amaoe SAM6 BGA Reballing Stencil-Original is designed for professionals who demand accuracy in circuit repair tasks. Crafted with high-quality materials, this stencil ensures precise alignment and stable performance, making it an essential tool for advanced reballing processes. Amaoe SAM6 BGA Reballing Stencil-Original
Durable and Easy to Use
This stencil is engineered to be both durable and easy to work with. Whether you’re working on complex circuit boards or performing maintenance on delicate components, the Amaoe SAM6 offers a reliable solution that minimizes errors and enhances efficiency. Amaoe SAM6 BGA Reballing Stencil-Original
A Must-Have for Electronics Repair Experts
Delivering consistent results every time, the Amaoe SAM6 BGA Reballing Stencil is a valuable addition to any electronics repair toolkit. Its precision design streamlines your workflow and brings professional-grade reliability to your projects. Amaoe SAM6 BGA Reballing Stencil-Original

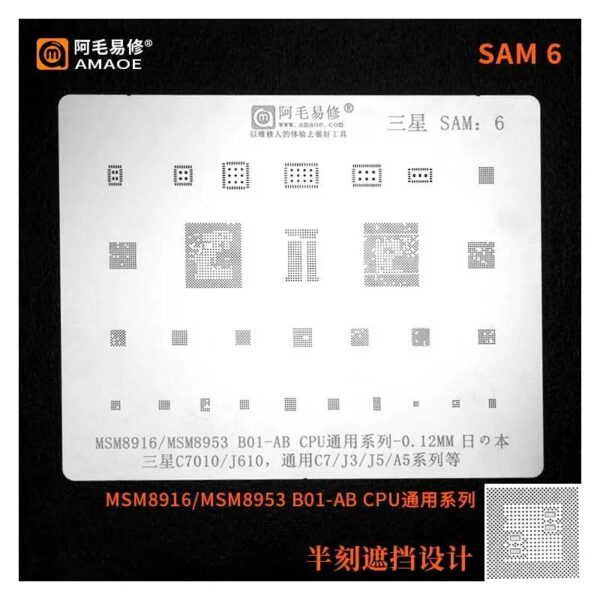

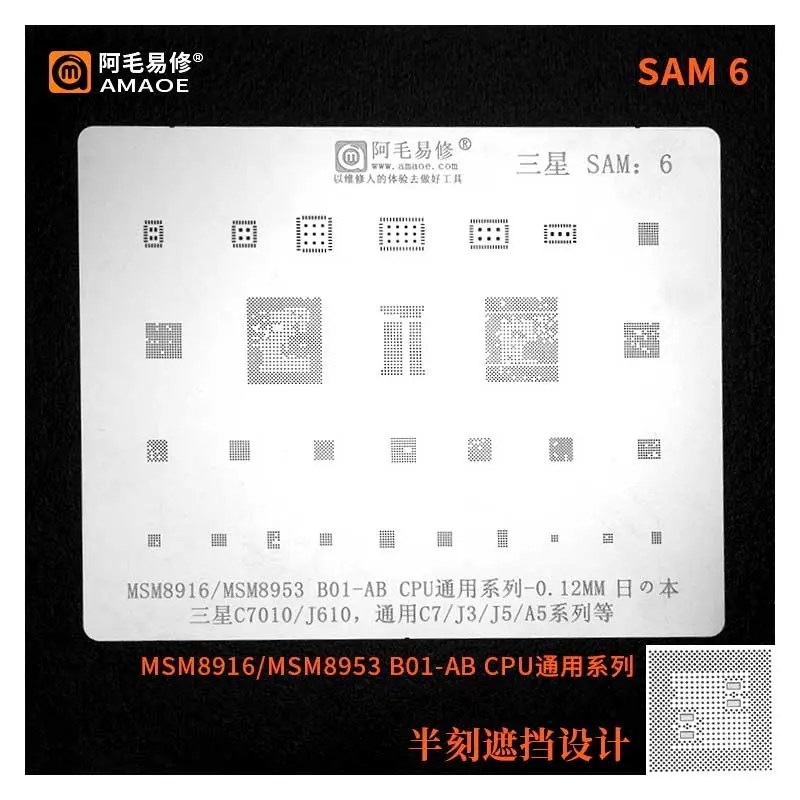

The Amaoe SAM6 BGA Reballing Stencil is a professional-grade precision tool specifically engineered for high-end Samsung mobile device repairs. As part of the Amaoe “SAM” series, the SAM6 is widely recognized by micro-soldering technicians for its “Original” quality, featuring high-temperature resistance and laser-cut accuracy. It is primarily used for re-tinning and reballing critical Integrated Circuits (ICs) such as CPUs, Power Management ICs (PMICs), and RAM. Amaoe SAM6 BGA Reballing Stencil-Original
Below are the detailed technical specifications and a comprehensive breakdown of the product. Amaoe SAM6 BGA Reballing Stencil-Original
Product Specifications Table
| Feature | Specification |
| Product Name | Amaoe SAM6 BGA Reballing Stencil |
| Model Number | SAM6 (Samsung Series 6) |
| Brand | Amaoe (Authentic/Original) |
| Material | Industrial Grade 304 Stainless Steel |
| Thickness | 0.12 mm |
| Hole Type | Square Aperture (Beveled/Tapered for easy release) |
| Supported CPUs | Qualcomm MSM8916, MSM8953 (B01-AB) |
| Compatible Models | Samsung Galaxy C7010, J610, C7, J3, J5, A5 |
| Heat Resistance | Up to 450°C (Anti-warping construction) |
| Usage Application | BGA IC Reballing, Tin Planting, Logic Board Rework |
| Design | CNC Laser Cut with positioning markers |
Core Technical Features
1. Ultra-Thin 0.12mm Profile
The 0.12 mm thickness is the industry standard for modern smartphone reballing. It provides the perfect volume of solder paste to form uniform solder balls. Too thick a stencil leads to bridging (short circuits), while too thin leads to weak solder joints. The SAM6 strikes a balance that ensures high success rates even for beginner technicians. Amaoe SAM6 BGA Reballing Stencil-Original
2. Square Hole Design
Unlike cheaper stencils that use circular holes, Amaoe utilizes square apertures. This design choice is critical for two reasons:
-
Paste Release: The square shape allows the solder paste to release more cleanly when the stencil is lifted.
-
Ball Formation: During the heating process, the surface tension of the molten solder naturally pulls the paste into a perfect sphere, and the square corners provide extra space for flux gases to escape, preventing “splattering.“
3. High-Grade Stainless Steel
The stencil is manufactured from imported 304 stainless steel. This material is chosen for its low thermal expansion coefficient. When a technician applies 350°C–400°C of heat from a hot air station, the stencil remains flat. Lower-quality stencils often “bow” or warp, which causes solder to leak between the chip and the stencil. Amaoe SAM6 BGA Reballing Stencil-Original
4. Chip Positioning Accuracy
The SAM6 features precise alignment markers. It is specifically “multi-function,” meaning it contains several layouts on a single sheet to cover various components of the Samsung C7 and J series, including the MSM8953 CPU—one of the most common chips in mid-range Samsung devices. Amaoe SAM6 BGA Reballing Stencil-Original
Compatibility & IC Support Breakdown
The SAM6 is a versatile plate that covers several generations of Samsung architecture.
| Component Type | Specific Chip / Model Support |
| Main Processors (CPU) | MSM8916 (Snapdragon 410), MSM8953 (Snapdragon 625) |
| Samsung C-Series | C7010, Galaxy C7 |
| Samsung J-Series | J610, J3 (various versions), J5 (various versions) |
| Samsung A-Series | Galaxy A5 (Early to mid-generation models) |
| Power/Misc ICs | Various PMICs associated with the MSM series boards |
Professional Usage Tips
To get the most out of your Original Amaoe SAM6 stencil, follow these industry best practices:
-
Cleaning: Always clean the stencil with 99% Isopropyl Alcohol (IPA) and a lint-free cloth before and after use. Dried solder paste in the apertures is the leading cause of reballing failure.
-
Paste Consistency: Use “dry” solder paste (wipe the paste on a paper towel first to remove excess flux) for better results with 0.12mm stencils.
-
Heat Control: Even though the SAM6 is anti-warping, it is best to use a “circular” motion with your hot air gun at roughly 330°C to 350°C to ensure even melting without overstressing the metal.
