Amaoe SM6450 BGA Reballing Stencil-Original
Precision and Durability
The Amaoe SM6450 BGA Reballing Stencil-Original is designed with cutting-edge precision to meet the demands of professional chip reballing needs. Crafted from premium materials, it ensures lasting durability and unmatched performance. Amaoe SM6450 BGA Reballing Stencil-Original
Streamlined Reballing Process
Engineered for efficiency, this stencil enhances the reballing process by delivering consistent results. Its well-defined openings are tailored for flawless alignment, allowing you to work with confidence and accuracy. Amaoe SM6450 BGA Reballing Stencil-Original
Versatile and User-Friendly
Whether you’re a seasoned technician or a DIY enthusiast, the Amaoe SM6450 offers ease of use for various applications. Its wide compatibility with BGA components makes it a valuable addition to your repair toolkit. Amaoe SM6450 BGA Reballing Stencil-Original

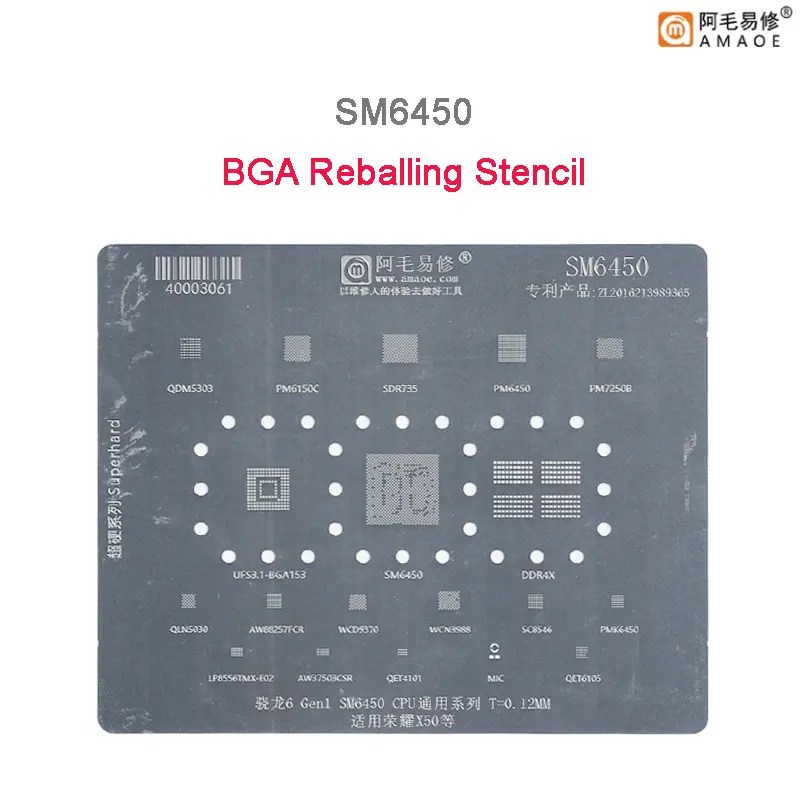

The Amaoe SM6450 BGA Reballing Stencil is a high-precision tool designed for mobile repair technicians. It is specifically engineered to assist in the “reballing” process—a technique used to restore the solder connections underneath Ball Grid Array (BGA) integrated circuits (ICs), such as the Qualcomm Snapdragon 6 Gen 1 (SM6450) mobile processor. Amaoe SM6450 BGA Reballing Stencil-Original
When a device suffers from board-level issues, such as cracked solder joints or oxidized pads under the CPU, technicians remove the chip and use this stencil to perfectly align and deposit new solder balls onto the chip’s contact pads before re-soldering it to the logic board. Amaoe SM6450 BGA Reballing Stencil-Original
Technical Specifications
The table below outlines the standard specifications for the Amaoe SM6450 stencil. Note that while branding may vary slightly (e.g., models like “MQ6”), these are the industry-standard parameters for this specific tool. Amaoe SM6450 BGA Reballing Stencil-Original
| Feature | Specification |
| Brand | Amaoe |
| Primary Compatibility | Qualcomm Snapdragon 6 Gen 1 (SM6450) CPU |
| Additional Compatibility | Often covers related ICs (PM6450, PM4450, etc.) |
| Material | High-Quality Stainless Steel |
| Stencil Thickness | 0.12 mm |
| Design Type | Heat-Resistant, Precision Laser-Cut |
| Function | Solder paste/ball alignment for BGA rework |
| Anti-Bulge Feature | Integrated cooling holes |
| Compatibility Type | Compatible with Tin Net (Solder Mesh) kits |
| Weight | Approx. 0.02 kg to 0.03 kg |
Detailed Analysis of Tool Features
1. Material and Precision
The use of high-grade stainless steel is critical. During the reballing process, the stencil is subjected to extreme heat (often from a rework station or hot air gun). Stainless steel resists warping or expanding under these temperatures, ensuring that the alignment of the stencil apertures remains consistent with the pad layout on the CPU. The 0.12mm thickness is the industry sweet spot; it is thin enough to prevent solder bridging (where solder spills over to adjacent pads) but thick enough to hold the correct volume of solder paste required for a robust, reliable connection.
2. Aperture Design
The stencil features laser-cut apertures that match the exact footprint of the SM6450 chip. This precision is vital because the Snapdragon 6 Gen 1 uses a dense BGA pattern. Even a fraction of a millimeter of misalignment can cause short circuits, rendering the chip useless. The Amaoe design ensures that the solder paste is dispensed only onto the contact pads, preventing the “bridging” effect that occurs when excess paste connects two separate pins.
3. Thermal Management
Modern BGA stencils like the Amaoe series often include specialized cutouts or cooling holes. These serve two purposes:
-
Heat Dissipation: They prevent the stencil from absorbing too much heat, which helps in creating a cleaner separation between the solder balls once the paste has melted.
-
Expansion Control: By allowing for minor thermal expansion, these holes prevent the stencil from “bulging” or buckling while under the heat gun, which would otherwise ruin the alignment.
4. Versatility
While the core purpose is for the SM6450 CPU, many Amaoe “set” stencils are designed with multi-IC functionality. You will often find the same stencil layout includes patterns for surrounding power management ICs (such as the PM6450 or PM4450), allowing a technician to perform a comprehensive board repair without needing to switch out the tool constantly.
Understanding the Process
If you are learning to use this tool, remember that the success of the reballing process depends not only on the stencil but also on the quality of the solder paste (often leaded vs. lead-free) and the heating profile used.
-
Preparation: Always ensure the surface of the IC is perfectly clean of old solder before placing the stencil.
-
Alignment: Use the outer edges of the chip as a guide. Ensure the stencil is locked in place using a BGA reballing fixture.
-
Application: Apply a thin, uniform layer of solder paste over the stencil. Wipe away excess paste before applying heat to ensure the balls are uniform.
