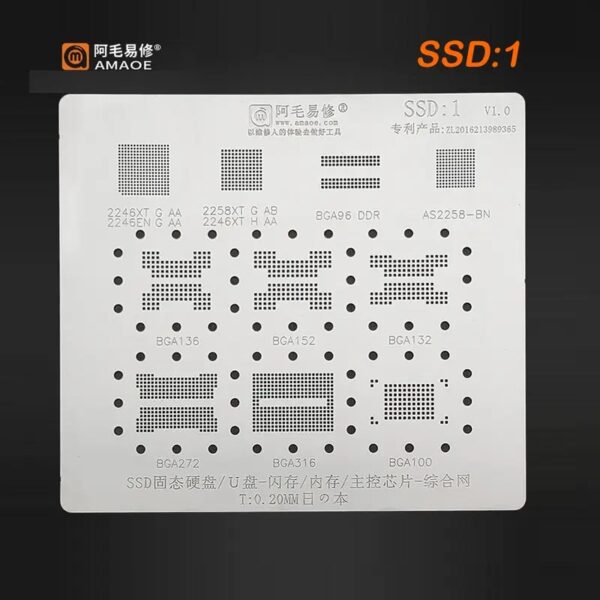

Amaoe SSD1 Stencil-Original
Durable and High-Quality Stencil for Repairs
The Amaoe SSD1 Stencil-Original stands out as a reliable and essential tool for professionals in the tech repair industry. Crafted with precision and durability in mind, this stencil simplifies intricate soldering tasks, ensuring accuracy and efficiency every time. Amaoe SSD1 Stencil-Original
Designed for Compatibility and Ease of Use
Engineered to accommodate a wide range of modern devices, the Amaoe SSD1 Stencil is versatile and user-friendly. Whether you’re working on smartphones, tablets, or other electronic gadgets, this stencil enhances your workflow with minimal effort required. Amaoe SSD1 Stencil-Original
Optimal Performance for Long-Term Usage
Made with high-grade materials, this stencil offers remarkable longevity and resilience. It’s designed to withstand heat and frequent use, making it an irreplaceable asset for professionals aiming for top-notch results. Amaoe SSD1 Stencil-Original
The Amaoe SSD1 Stencil is a professional-grade BGA (Ball Grid Array) reballing template specifically engineered for the repair and maintenance of Solid State Drives (SSDs), high-speed NAND flash memory, and USB storage controllers. Amaoe is widely recognized in the micro-soldering industry for its “Super Hard” series, which utilizes high-quality imported steel to prevent deformation under high heat. Amaoe SSD1 Stencil-Original
The SSD1 model is a multi-purpose “plant tin” net designed to support the most common footprints found in consumer and industrial storage devices. Amaoe SSD1 Stencil-Original
Technical Specifications: Amaoe SSD1 Stencil
| Feature | Specification Details |
| Model Name | Amaoe SSD1 (Original Solid State Drive Series) |
| Primary Function | BGA Reballing / Solder Paste Application |
| Material | High-Grade Imported Stainless Steel (Japanese Quality) |
| Stencil Thickness | 0.12mm (Standard Precision) |
| Aperture Design | Square-holed with rounded corners (prevents solder sticking) |
| Alignment Technology | High-precision laser-cut CNC apertures |
| Heat Resistance | High-temperature resistance (anti-drum/anti-warp design) |
| Weight | ~0.02kg (Lightweight for precision handling) |
| Supported Controllers | SM2246XT, SM2246EN, SM2258XT, AS2258-BN |
| Supported Packages | BGA96, BGA100, BGA132, BGA136, BGA152, BGA272, BGA316 |
Supported Chipset and BGA Layouts
The SSD1 stencil is prized for its versatility, consolidating multiple storage-specific layouts into a single plate.
1. SSD Main Controllers
The stencil features dedicated areas for Silicon Motion (SMI) and ASolid controllers, which are the backbone of most budget and mid-range SSDs:
-
SM2246XT / SM2246EN: Found in SATA 3 SSDs.
-
SM2258XT: A popular DRAM-less controller used in high-volume consumer drives.
-
AS2258: Commonly found in newer generation SATA SSDs.
2. NAND Flash Memory Packages
Repairing a failed SSD often requires moving NAND chips to a new PCB or re-seating them. This stencil covers:
-
BGA132 / BGA152: The industry standard for most MLC, TLC, and QLCNAND flash (Samsung, Micron, SK Hynix, Toshiba).
-
BGA272 / BGA316: High-density flash layouts used in enterprise-grade or high-capacity NVMe drives.
-
BGA96 / BGA100: Common in older SSD architectures and some embedded storage solutions.
Key Performance Features
1. Anti-Deformation Design
Amaoe stencils are manufactured using a unique chemical etching and laser-cutting process. This ensures that the steel maintains its structural integrity even when subjected to the concentrated heat of a hot air rework station (typically between 300°C and 350°C). The “anti-drum” property prevents the stencil from bulging, which is the leading cause of solder bridging and short circuits.
2. Precision Square Holes
Unlike cheaper stencils that use simple circular holes, the SSD1 uses square-holed apertures with slightly rounded interior corners. This design allows the solder paste to release more cleanly when the stencil is lifted, ensuring uniform solder ball height across the entire BGA grid.
3. Optimized Thickness
At 0.12mm, the stencil provides the ideal volume of solder paste for the pitch found on SSD controllers and NAND. It ensures that the resulting solder balls are large enough to create a strong mechanical and electrical bond but small enough to prevent bridging on fine-pitch components.
Usage Recommendations
To achieve professional results with the Amaoe SSD1, follow these industry-standard practices:
-
Paste Selection: Use a high-quality “No-Clean” solder paste (Leaded Sn63/Pb37 is preferred for easier reflow, or Lead-Free SAC305 for modern compliance).
-
Cleaning: Clean the stencil immediately after use using 99% Isopropyl Alcohol (IPA) to prevent solder paste from hardening in the apertures.
-
Alignment: Use high-temperature Kapton tape to secure the chip to the underside of the stencil.
-
Heat Application: Apply heat in a circular motion at a distance of 2–3 cm to allow the solder to liquefy simultaneously across the chip.
