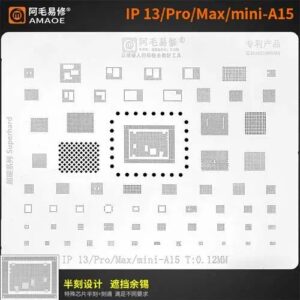

Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15
The Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15 is a professional-grade precision tool designed for micro-soldering and chip-level repair of the iPhone 13 series. Specifically engineered for the Apple A15 Bionic chipset, this stencil is a staple for technicians performing BGA (Ball Grid Array) reballing, which involves replacing the solder balls on a chip to restore connectivity to the motherboard. Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15
The A15 Bionic is a complex System on a Chip (SoC), and the Amaoe stencil is crafted to match its intricate pinout with extreme accuracy, preventing solder bridges and ensuring a perfect fit during the reflow process. Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15
Full Specifications: Amaoe IP 13 Series (A15) Stencil
| Feature | Specification Details |
| Brand | Amaoe (Original) |
| Model Number | U-IP9 / IP13-A15 |
| Compatibility | iPhone 13, 13 Mini, 13 Pro, 13 Pro Max |
| Target IC | Apple A15 Bionic CPU / RAM / Middle Layer |
| Material | High-Quality Japanese Imported Stainless Steel |
| Thickness | 0.12mm (Standard) / 0.10mm (Ultra-Thin variants) |
| Hole Type | Square Hole (Precision Laser Cut) |
| Heat Resistance | Up to 380°C – 450°C (Anti-bulge technology) |
| Alignment | Integrated High-Precision Alignment Markers |
| Coating | Anti-Static / Non-Stick Solder Coating |
| Weight | ~0.02kg (Stencil only) |
| Reusability | High (Durable for multiple reballing cycles) |
Key Technical Features
1. Square Hole Design
Unlike traditional round-hole stencils, Amaoe utilizes square apertures. This design allows for a more consistent volume of solder paste to be deposited. When the heat is applied, the square shape facilitates easier “balling,” as the surface tension of the molten solder naturally pulls the paste into a perfect sphere without sticking to the corners of the stencil. Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15
2. Specialized Steel Material
The stencil is manufactured using high-grade Japanese steel. This material is chosen for its “memory” properties; even after being subjected to the high temperatures of a hot air rework station, the stencil resists warping (bulging). This ensures that the stencil remains flat against the IC, preventing solder from leaking between the chip and the mesh. Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15
3. Precision Thickness (0.12mm)
The 0.12mm thickness is the industry sweet spot for the A15 chip. It is thin enough to allow for precise heat transfer but thick enough to provide structural integrity. This specific depth ensures that the resulting solder balls are of the exact height required for the iPhone 13’s motherboard architecture. Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15
Applications in Repair
-
CPU Reballing: Fixing “Grey Wi-Fi,” “No Boot,” or “CPU Panic” issues caused by cracked solder joints under the A15 chip.
-
RAM Sandwich Repair: The A15 often has a RAM chip layered on top. This stencil includes patterns to reball both the CPU and the RAM seating.
-
Middle Layer Reballing: For the “interposer” board (the connection between the top and bottom motherboard layers), ensuring the signal pins for the 5G modem and power IC are intact.
Usage Best Practices for Technicians
To maximize the lifespan of the Amaoe A15 stencil and ensure a 100% success rate:
-
Cleaning: Always clean the stencil with 99% Isopropyl Alcohol (IPA) after every use. Solder paste residue can harden in the square holes, leading to uneven balling in future repairs.
-
Heat Control: While the stencil is heat-resistant, it is best practice to use a nozzle-to-stencil distance of at least 2–3cm and a temperature of roughly 330°C–350°C for leaded solder paste.
-
Tackiness: Use a high-quality “No-Clean” solder paste (like Mechanic or Relife) with the correct micron size (Type 4 or Type 5) to match the fine pitch of the A15 pins. Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15
Note: This stencil is intended for professional use. Reballing the A15 CPU is a high-risk procedure that requires a microscope and steady-hand soldering skills. Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15
Unmatched Compatibility for Your iPhone 13 Series
The Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15 offers precise alignment and compatibility with the entire iPhone 13 lineup, including Pro, Mini, and Max models. Designed for A15 chip configurations, it ensures effortless and secure application. Amaoe Stencil-Original IP 13/PRO/MAX/MINI-A15
Exceptional Durability and Performance
Constructed with high-quality materials, this stencil delivers excellent durability. Whether you’re repairing or working on intricate components, its precision guarantees professional results every time.
Streamlined Repair Process
Support your repair needs with ease using the Amaoe Stencil. Its user-friendly design and robust build make this a versatile tool for enthusiasts and professionals to simplify intricate procedures while enhancing efficiency.
