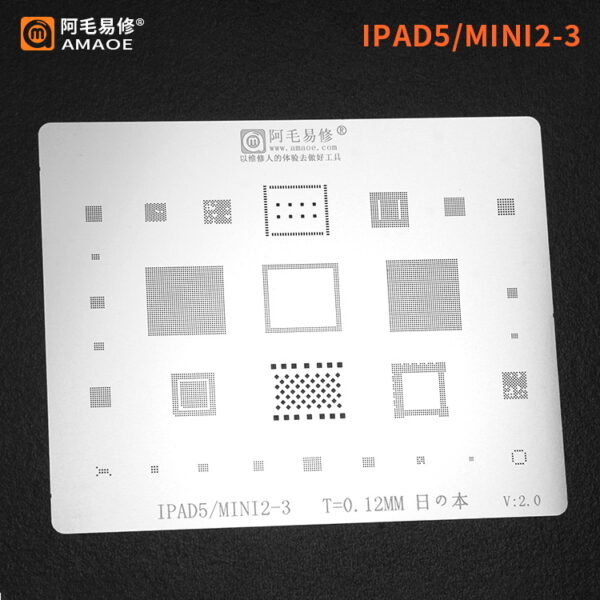

AMAOE Stencil-Original iPad5/MINI2-3 0.12mm
Designed for Precision and Reliability
The AMAOE Stencil-Original iPad5/MINI2-3 0.12mm is your go-to choice for seamless repairs and professional results. Crafted with meticulous attention to detail, this stencil is engineered to cater to the specific needs of precision repair projects. AMAOE Stencil-Original iPad5/MINI2-3 0.12mm
Durable 0.12mm Quality
Constructed with a durable 0.12mm thickness, this stencil ensures optimal alignments and an effortless repair process. Its robust design minimizes wear and tear, making it a reliable companion for consistent use. AMAOE Stencil-Original iPad5/MINI2-3 0.12mm
Perfect Compatibility
Tailored exclusively for iPad5 and MINI2-3 models, this stencil fits your needs perfectly, offering flawless compatibility. Whether you are a professional repair technician or a DIY enthusiast, this tool elevates your repair experience. AMAOE Stencil-Original iPad5/MINI2-3 0.12mm
Technical Specifications: Amaoe iPad 5 / Mini 2-3 Stencil
The Amaoe “Original” series is widely considered the gold standard in the micro-soldering community for its balance of heat resistance and aperture precision. AMAOE Stencil-Original iPad5/MINI2-3 0.12mm
| Feature | Specification Details |
| Brand | Amaoe (Authentic Original Series) |
| Model Compatibility | iPad 5 (Air 1), iPad Mini 2, iPad Mini 3 |
| Stencil Thickness | 0.12mm (Ultra-precise for high-density BGA) |
| Material | High-Grade Japanese Imported 304 Stainless Steel |
| Hole Type | Square holes with rounded corners (Anti-stuck design) |
| Manufacturing Process | High-precision Laser Cutting |
| Heat Resistance | Up to 450°C – 500°C (Direct Heat Compatible) |
| Key ICs Covered | CPU (A7), NAND Flash, Power IC (PMIC), WiFi/BT, Touch IC |
| Alignment Method | Visual Alignment with Laser-etched Markings |
| Coating | Non-stick, polished finish to prevent solder paste bridging |
Deep Dive: Why These Specs Matter
1. The 0.12mm “Sweet Spot”
In the world of reballing, thickness is everything.
-
Thinner (0.10mm): Often leads to “warping” under heat and produces solder balls that are too small to bridge the gap between the IC and the PCB. AMAOE Stencil-Original iPad5/MINI2-3 0.12mm
-
Thicker (0.15mm+): Can cause “volcanoing,” where too much paste is applied, leading to shorts (bridging) under the chip. AMAOE Stencil-Original iPad5/MINI2-3 0.12mm
-
The Amaoe 0.12mm: Provides the exact volume of solder paste required for the pad pitch of the Apple A7 chip and surrounding power management ICs. AMAOE Stencil-Original iPad5/MINI2-3 0.12mm
2. Square Holes vs. Round Holes
Amaoe uses a proprietary square hole with slightly rounded interior corners. This is a deliberate engineering choice:
-
It allows the solder paste to release from the stencil more cleanly.
-
It prevents the “suction effect” that often occurs with perfectly round holes, which can pull the paste back out of the hole when you lift the stencil.
3. Material Durability (304 Stainless Steel)
The use of Japanese imported steel means the stencil has “shape memory.” When you apply heat with a hot air station, the metal expands. Lower-quality stencils will “oil-can” (pop upward), ruining the alignment. The Amaoe steel is designed to stay flat against the chip, provided you use proper clamping or magnetic fixtures.
Component Layout & Coverage
This specific stencil is a “Multi-purpose” sheet for the A7 logic board architecture. It typically includes patterns for:
-
A7 CPU/GPU: The primary processor for the iPad 5/Mini 2/3.
-
NAND Flash: Essential for storage upgrades or data recovery.
-
Power Management (PMIC): Frequent failure points in charging circuits.
-
Audio Codecs & Baseband: Critical for sound and cellular connectivity.
-
Touch Control ICs: Solves the “Touch Disease” or ghost-touch issues common in aging tablets.
Best Practices for Usage
To get the most out of these specifications, keep these professional tips in mind:
-
Cleaning: Use 99% Isopropyl Alcohol (IPA) and a lint-free wipe after every single heat cycle. Solder flux buildup in 0.12mm holes is the #1 cause of failed reballs.
-
Paste Consistency: Use “dry” solder paste (approx. 183°C Leaded). If your paste is too wet, it will seep under the 0.12mm plate and cause a mess.
-
Pre-heating: Lightly pre-heat the stencil from a distance before focusing your air on the solder paste to prevent sudden thermal shock.
