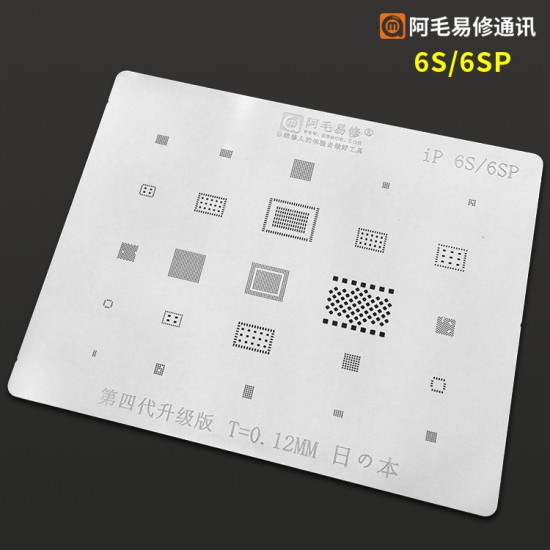

AMAOE Stencil Original iPhone 6S/6SP
Professional-Grade Stencil for Accurate Repairs
The AMAOE Stencil Original iPhone 6S/6SP, meticulously designed for iPhone 6S and 6SP, offers a reliable solution for repair enthusiasts and professionals. Crafted with precision, it ensures alignment accuracy, making even intricate tasks seamless.
Durable and Effective in Every Use
Manufactured with high-quality materials, this stencil is resistant to corrosion and wear, guaranteeing long-lasting performance. Its lightweight design adds ease of use while enhancing repair results without compromising precision.
Your Go-To Repair Companion
Whether you are tackling delicate component placements or aiming for perfect soldering, the AMAOE Stencil is your trusted partner. Simplify your tasks and achieve professional results every time with this essential tool for iPhone 6S/6SP repair.
When it comes to high-precision micro-soldering, Amaoe has established itself as a gold standard among logic board technicians. The AMAOE Original BGA Reballing Stencil for iPhone 6S and 6S Plus (A9 series) is a specialized tool engineered to facilitate the precise placement of solder paste onto Ball Grid Array (BGA) components.
Specifically designed for the Apple A9 chipset era, these stencils utilize laser-cut technology to ensure that every solder ball is perfectly uniform, preventing common repair pitfalls like bridging or “cold” joints.
Technical Specifications: AMAOE iPhone 6S/6SP Stencil
| Feature | Specification Details |
| Brand | AMAOE (Original) |
| Model Compatibility | iPhone 6S / iPhone 6S Plus |
| Core Support | Apple A9 CPU & RAM (Integrated / PoP) |
| Material | High-Grade Japanese Stainless Steel |
| Stencil Thickness | 0.12mm (Industry Standard for A9) |
| Aperture Type | Square-holed (Anti-stick design) |
| Thermal Resistance | High (Supports direct heating without warping) |
| Weight | Approximately 0.04kg (40 grams) |
| Application | BGA Reballing, Chip Rework, Tin Planting |
Deep Dive into Design and Build Quality
1. Material Composition
AMAOE stencils are manufactured from imported Japanese stainless steel. This choice of material is critical because it offers a unique balance of rigidity and flexibility. During the reballing process, the stencil must remain flat against the IC; however, it must also survive the high-temperature environment of a hot air station. This material is specifically treated to resist oxidation and corrosion from flux. AMAOE Stencil Original iPhone 6S/6SP
2. The 0.12mm Precision Thickness
The thickness of a stencil determines the volume of solder paste deposited. At 0.12mm, the AMAOE stencil for the iPhone 6S/6SP provides the optimal height for A9 chips. AMAOE Stencil Original iPhone 6S/6SP
-
Too thin (<0.10mm): The solder balls may be too small to create a secure connection to the motherboard. AMAOE Stencil Original iPhone 6S/6SP
-
Too thick (>0.15mm): The solder balls might merge (bridge) during reflow, causing a short circuit. AMAOE Stencil Original iPhone 6S/6SP
3. Square-Hole Technology
Unlike cheaper, circular-cut stencils, AMAOE uses square apertures with tapered edges. This design significantly reduces the “suction” effect, allowing the stencil to be lifted cleanly away from the solder paste without pulling the “bricks” out of their holes. This is often referred to as “anti-stick” geometry.
4. Heat Resistance and Durability
One of the standout features of the “Original” AMAOE line is its ability to handle Direct Heat. Many lower-end stencils warp or “bow” when a heat gun is applied, which ruins the alignment. AMAOE stencils are designed to maintain their structural integrity even when subjected to the temperatures required for leaded ($183^{\circ}C$) or lead-free ($217^{\circ}C$) solder paste.
Supported Components for iPhone 6S/6SP
While the primary focus is the A9 CPU, the 6S/6SP series stencil sets typically include patterns for the following critical ICs:
-
A9 Processor: The heart of the device.
-
NAND Flash: High-density storage chips.
-
Power Management IC (PMIC): Responsible for voltage regulation.
-
Baseband CPU: Handling cellular connectivity.
-
Audio Codec & Wi-Fi Modules: Smaller peripheral chips. AMAOE Stencil Original iPhone 6S/6SP
Best Practices for Usage
To get the most out of your AMAOE stencil, technicians recommend a specific workflow: AMAOE Stencil Original iPhone 6S/6SP
-
Cleaning: Ensure the IC is completely free of old solder using a soldering iron and wick. AMAOE Stencil Original iPhone 6S/6SP
-
Alignment: Place the IC under the stencil. The precision-cut holes should align perfectly with the pads on the chip. AMAOE Stencil Original iPhone 6S/6SP
-
Paste Application: Use a high-quality solder paste (e.g., $183^{\circ}C$ Leaded) and apply it using a firm scraper. AMAOE Stencil Original iPhone 6S/6SP
-
Heating: Apply heat evenly. Once the paste turns into shiny spheres, stop immediately to avoid over-stressing the metal. AMAOE Stencil Original iPhone 6S/6SP
Pro Tip: Always clean the stencil with PCB cleaner or Isopropyl Alcohol (IPA) immediately after use. Dried flux can clog the 0.12mm holes, making future alignment difficult.
