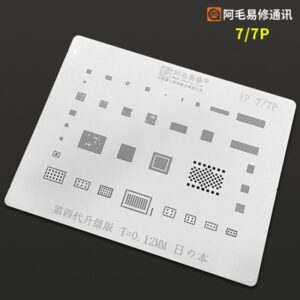

AMAOE Stencil Original iPhone 7/7P
High-Quality Stencil for Professional Results
Introducing the AMAOE Stencil Original iPhone 7/7P – specifically designed to provide precision and reliability for your smartphone repair needs. Built with high-grade materials, our stencil delivers consistent results, making it a trusted tool for technicians and individuals alike.
Durable and Efficient Design
The AMAOE Stencil is crafted for durability, ensuring long-term use and resistance to wear during repeated applications. Its precise cutouts align perfectly with iPhone 7 and 7 Plus components, minimizing errors and improving efficiency during intricate repairs. AMAOE Stencil Original iPhone 7/7P
Perfect for DIY and Professionals
Whether you’re a professional repair technician or a DIY enthusiast, the AMAOE Stencil simplifies the intricate repair process. Its user-friendly design caters to all expertise levels, helping you achieve accurate and flawless results every time. AMAOE Stencil Original iPhone 7/7P
When it comes to precision logic board repair, AMAOE has established itself as the “gold standard” among technicians. Their stencils are renowned for balancing heat resistance with the perfect thickness to prevent the dreaded “stencil bulge” during the reballing process. AMAOE Stencil Original iPhone 7/7P
For the iPhone 7 and 7 Plus, the AMAOE stencil focuses primarily on the A10 Fusion ecosystem, which includes not just the CPU but the surrounding critical ICs. AMAOE Stencil Original iPhone 7/7P
AMAOE Original iPhone 7/7P Stencil: Full Specifications
| Feature | Specification Details |
| Brand | AMAOE (Original) |
| Model Number | IP-7/7P (often designated as IP7-A10) |
| Compatibility | Apple iPhone 7 & iPhone 7 Plus |
| Main Target Component | A10 Fusion CPU / RAM (Stacked BGA) |
| Secondary Support | Nand Flash, WiFi IC, Power IC (PMIC), Baseband CPU |
| Material | High-Quality Imported Japanese Stainless Steel |
| Thickness | $0.12\text{ mm}$ (Precision standard) |
| Aperture Shape | Square Holes with Rounded Corners (Anti-clogging) |
| Hole Alignment | CNC Laser Cut / High-Precision Etching |
| Heat Resistance | High-Temperature Resistant (Anti-deformation up to 450°C) |
| Color/Finish | Silver Matte (Anti-glare for easier alignment under microscopes) |
| Weight | ~0.04kg |
| Dimensions | Approx. $80\text{ mm} \times 100\text{ mm}$ (Varies by revision) |
Key Technical Attributes
1. The $0.12\text{ mm}$ Thickness Advantage
AMAOE utilizes a thickness of $0.12\text{ mm}$ specifically because it provides the ideal volume of solder paste. If a stencil is too thin ($0.10\text{ mm}$), the solder balls may be too small to bridge the gap; if too thick ($0.15\text{ mm}$), the paste can bridge between pins, causing shorts. The $0.12\text{ mm}$ standard ensures uniform ball height across the massive A10 chip.
2. Square-Hole Technology
Unlike cheaper stencils that use circular holes, AMAOE uses Square-Hole (Rounded Corner) apertures. This design allows the solder paste to release from the stencil more easily. The corners provide a “venting” effect, preventing the vacuum seal that often causes paste to stick to the stencil rather than the chip.
3. High-Quality Japanese Steel
The steel used is specifically selected for its thermal expansion properties. When you apply heat with a rework station (usually between $330^\circ\text{C}$ and $380^\circ\text{C}$), the metal expands. AMAOE stencils are designed to expand uniformly and return to their original shape without warping or “bowing,” which is critical when reballing large-surface-area chips like the A10 CPU.
4. Integrated Chip Support
This specific 7/7P plate is often a “Multi-purpose” layout. It typically includes:
-
A10 CPU/RAM: The center-piece for processor reballing.
-
NAND: For storage upgrades or disk repair.
-
Baseband: Essential for “No Service” repair issues common in the iPhone 7 series (Qualcomm/Intel versions).
-
WiFi/Bluetooth: For connectivity IC replacements. AMAOE Stencil Original iPhone 7/7P
Professional Usage Tips
-
Alignment: Use a microscope to ensure every pad is centered in the square aperture before applying paste. AMAOE Stencil Original iPhone 7/7P
-
Paste Application: Use a high-quality solder paste (like Mechanic or Relife) with a $183^\circ\text{C}$ melting point. Ensure the paste is slightly dry; if it’s too “wet,” it can seep under the stencil. AMAOE Stencil Original iPhone 7/7P
-
Heating: Start with low airflow to avoid blowing the paste out of the holes, then increase heat once the balls begin to form. AMAOE Stencil Original iPhone 7/7P
