AMAOE Stencil-Original Power IC MT1
Exceptional Precision for Microelectronics
The AMAOE Stencil-Original Power IC MT1 is meticulously crafted to meet the highest industry standards, offering unparalleled precision for microelectronic repairs and assembly. Its design ensures accuracy, making it an essential tool for professionals and enthusiasts alike who demand results without compromises. AMAOE Stencil-Original Power IC MT1
Durable and Long-Lasting Material
Manufactured with premium materials, this stencil is built to last, ensuring durability and consistent performance over time. The high-quality construction provides stability and reliability, allowing for repeated usage in delicate electronic applications without loss of functionality. AMAOE Stencil-Original Power IC MT1
Perfect for Professionals and DIY Enthusiasts
Whether you’re a seasoned technician or a hobbyist delving into intricate projects, the AMAOE Stencil-Original Power IC MT1 is your ideal companion. Its user-friendly design makes it accessible for varied skill levels, ensuring everyone can achieve precision and satisfaction in their work. AMAOE Stencil-Original Power IC MT1

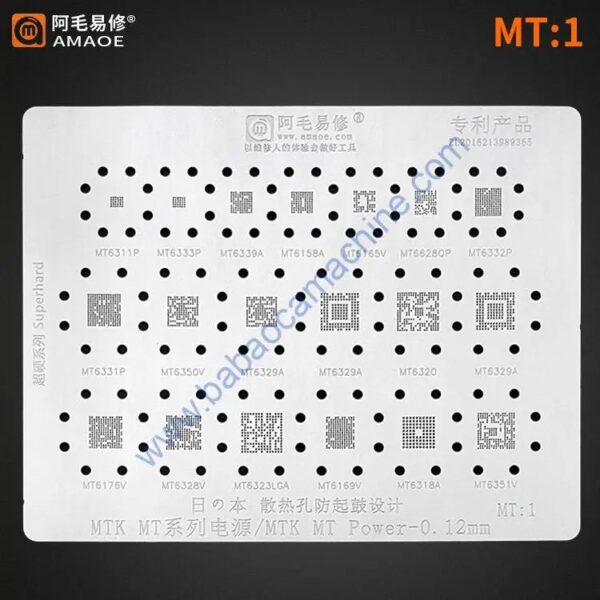

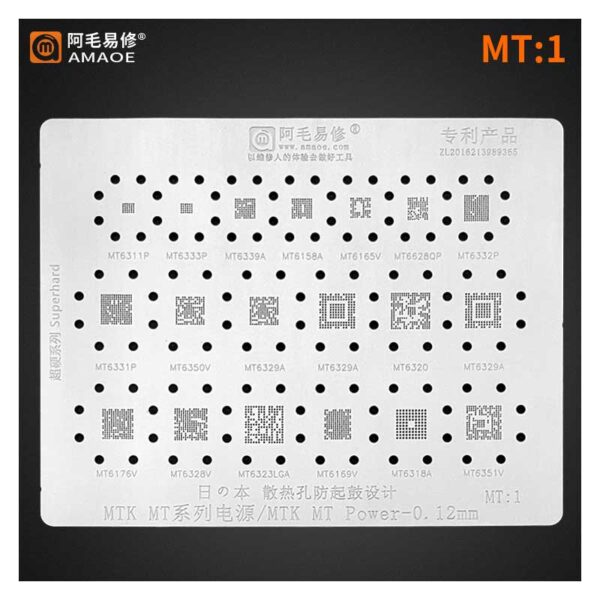

The AMAOE MT1 (also referred to as MT:1 or MT-1) is a specialized, high-precision BGA reballing stencil specifically engineered for MediaTek (MTK) Power Management Integrated Circuits (PMICs). Known for its “square-hole” design, this stencil is a staple in professional mobile motherboard repair, offering the durability needed for repeated thermal cycles. AMAOE Stencil-Original Power IC MT1
Below is the comprehensive technical breakdown and specification guide for the original AMAOE MT1 stencil. AMAOE Stencil-Original Power IC MT1
## AMAOE MT1 Stencil: Technical Specifications
| Feature | Specification Details |
| Model Number | MT1 / MT-1 (MediaTek Power Series) |
| Brand | AMAOE (Original “Apple Mao” Series) |
| Material | High-Hardness Japanese Imported Stainless Steel |
| Stencil Thickness | $0.12\text{ mm}$ (Standard precision for PMICs) |
| Hole Design | Precision Square-Round Apertures (Prevents solder sticking) |
| Heat Resistance | Up to $450^\circ\text{C}$ (Anti-warping/Anti-deformation) |
| Finish | Laser-Cut edges with high-gloss surface treatment |
| Weight | Approximately $0.01\text{ kg} – 0.02\text{ kg}$ |
| Primary Use | BGA Reballing, Solder Paste Application, PMIC Rework |
## Supported IC Models (Compatibility List)
The MT1 is a “multi-IC” template, meaning it contains several specialized patterns on a single sheet. It is designed to cover a broad range of legacy and mid-range MediaTek power and RF chips found in Android devices (Xiaomi, Vivo, Oppo, etc.).
-
Primary Power ICs: MT6311P, MT6320, MT6323LGA, MT6329A, MT6339A, MT6350V, MT6351V.
-
Secondary/RF Chips: MT6158A, MT6165V, MT6169V, MT6175V, MT6628QP.
-
Other Supported Variants: MT6333P, MT6331P, MT6332P.
## Key Features & Performance Benefits
1. Square-Round Aperture Technology
Unlike standard round-hole stencils where solder paste can get trapped in the corners, AMAOE utilizes a square-hole with rounded corners design. This ensures that when you lift the stencil after applying the paste, the “solder bricks” remain intact on the IC pads, significantly reducing the risk of bridges or “missing balls.”
2. $0.12\text{ mm}$ Precision Thickness
The thickness is specifically calibrated for mobile Power ICs. At $0.12\text{ mm}$, it provides just enough solder volume for a secure electrical connection without being so thick that it causes overflow and short circuits during the reflow process. AMAOE Stencil-Original Power IC MT1
3. High-Quality Japanese Steel
AMAOE stencils are manufactured using high-grade stainless steel that is resistant to thermal expansion. This is critical because technicians often apply direct heat while the stencil is still on the chip; cheaper materials would warp, causing the stencil to pop up and ruin the alignment. AMAOE Stencil-Original Power IC MT1
4. Heat Dissipation Vents
The original MT1 often features tiny cooling holes or “anti-drum” vents between the IC patterns. These allow air to escape during the heating process, preventing the stencil from bulging due to trapped hot air. AMAOE Stencil-Original Power IC MT1
## Professional Usage Tips
To maximize the lifespan of your AMAOE MT1, follow these industry best practices:
-
Alignment: Use a microscope to ensure the IC pads are perfectly centered within the stencil holes before applying paste.
-
Paste Consistency: Use high-quality solder paste (e.g., $183^\circ\text{C}$ or $138^\circ\text{C}$ depending on the board) that has been slightly dried on a paper towel to remove excess flux.
-
Cleaning: Clean the stencil immediately after use with 99% Isopropyl Alcohol (IPA) and a soft-bristled brush. Dried solder paste in the apertures is the leading cause of failed reballs.
-
Storage: Store the stencil flat. Even a minor bend can lead to uneven paste application in future repairs.
## Summary Table: Comparison vs. Other Series
| Stencil Series | Focus Area | Common Models |
| MT1 | MTK Power / RF | MT6311P, MT6350V, MT6165V |
| MT2 | MTK Power (Newer) | MT6356W, MT6325V, MT6353V |
| MP1 | Qualcomm Power | PM660, PM845, PMI632 |
| MQ Series | Advanced CPU/RAM | MT6771V, SDM845, SDM855 |
