AMAOE Stencil Original XIAOMI MI7
Superior Compatibility for XIAOMI MI7

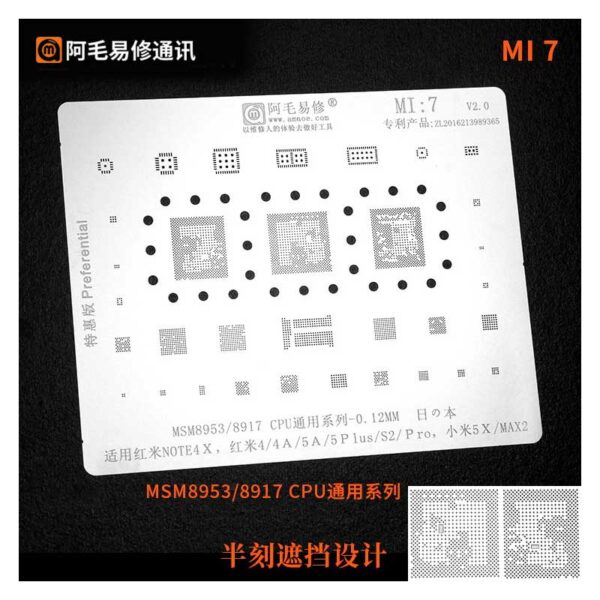

The AMAOE Stencil Original XIAOMI MI7 is specifically crafted for the XIAOMI MI7, ensuring perfect alignment and precision for your repair needs. Whether you’re replacing components or enhancing device performance, this stencil fits seamlessly, offering reliable support throughout the process. AMAOE Stencil Original XIAOMI MI7
Durable Design for Repeated Use
Made with high-quality materials, this stencil is built to withstand multiple uses without compromising its effectiveness. Its robust construction assures consistent soldering results, making it an indispensable tool for professionals and DIY enthusiasts alike.
Effortless and Accurate Application
Designed for ease of use, the AMAOE stencil facilitates smooth and efficient repairs. With precise cutouts tailored for the XIAOMI MI7, it streamlines your workflow and ensures accurate component placement every time. AMAOE Stencil Original XIAOMI MI7
The AMAOE MI7 Stencil is a professional-grade repair tool designed for high-precision BGA (Ball Grid Array) reballing. Despite the “MI7” naming, this stencil is primarily engineered for a specific generation of Xiaomi hardware—specifically devices utilizing the Qualcomm Snapdragon 625 (MSM8953) and Snapdragon 425/435 (MSM8917/8940) chipsets. AMAOE Stencil Original XIAOMI MI7
It is a staple in the kits of mobile technicians for repairing common “workhorse” devices from the 2017–2019 era, such as the Redmi Note 4X, Redmi 5 Plus, and Xiaomi Mi Max 2. AMAOE Stencil Original XIAOMI MI7
AMAOE MI7 Stencil: Technical Specifications
The following table details the physical and technical properties of the original AMAOE MI7 reballing stencil.
| Feature | Specification Details |
| Brand | AMAOE (Original “A-Series”) |
| Model Number | MI7 (Mi:7) |
| Material | Japanese Imported High-Quality Steel (Stainless) |
| Thickness | 0.12mm (Ultra-thin for precise paste application) |
| Aperture Type | Square holes with rounded corners (prevents tin sticking) |
| Heat Resistance | High-temperature resistant (won’t warp under direct heat) |
| Processing | CNC Laser Cutting & Chemical Etching |
| Stencil Design | “Planting Tin” / Reballing Net |
| Dimensions | Approx. 100mm x 80mm |
| Net Weight | ~0.01kg |
| Primary Chipset Support | Qualcomm MSM8953 (Snapdragon 625), MSM8917 (Snapdragon 425) |
| Supported IC Types | CPU, RAM, Power IC (PMIC), Audio Codec, PA (Power Amp) |
Device Compatibility List
The MI7 stencil is highly versatile because it covers the most popular mid-range chips used by Xiaomi during its period of massive global expansion. If you are repairing one of the following models, this is the correct stencil:
-
Redmi Series: Redmi 4, 4A, 4X, 5, 5A, 5 Plus, S2, Y2. AMAOE Stencil Original XIAOMI MI7
-
Redmi Note Series: Redmi Note 4, Note 4X, Note 5A. AMAOE Stencil Original XIAOMI MI7
-
Xiaomi Mi Series: Mi 5X, Mi A1 (Global version of 5X), Mi Max 2. AMAOE Stencil Original XIAOMI MI7
-
Other Components: It includes layouts for the Power IC and WiFi/Bluetooth modules found across these specific logic boards. AMAOE Stencil Original XIAOMI MI7
Key Features of the AMAOE MI7 Stencil
1. 0.12mm Precision Thickness
The 0.12mm thickness is considered the “goldilocks” zone for mobile repair. It is thick enough to deposit a sufficient amount of solder paste to form strong bonds, but thin enough to allow for easy removal of the stencil without pulling the solder balls off the chip.
2. Square Hole Design
Unlike cheaper stencils with circular holes, AMAOE uses a square hole design. This provides better release for the solder paste. During the heating process, the square shape helps the solder “wick” into a perfect sphere more efficiently.
3. High-Quality Japanese Steel
AMAOE stencils are known for their durability. The steel is treated to resist expansion when heated (thermal expansion). This ensures that the holes remain perfectly aligned with the chip pads even when you are applying 350°C+ heat from a rework station.
Clarification: The “Xiaomi Mi 7” Smartphone
It is important to note a common point of confusion: The Xiaomi Mi 7 smartphone was never officially released.
Xiaomi skipped the “7” numbering for its flagship line to celebrate its 8th anniversary, jumping directly from the Mi 6 to the Mi 8 in 2018. While “Mi 7” specs sometimes appear in leaked databases (often referring to early prototypes with a Snapdragon 845), the AMAOE MI7 stencil is not for a flagship Mi 7 phone. Instead, it is named “MI7” by the manufacturer as a catalog index for the mid-range Xiaomi/Redmi chips mentioned above.
Usage Tips for Technicians
-
Cleaning: Always clean the stencil with 99% Isopropyl Alcohol (IPA) before and after use to ensure no dried solder paste obstructs the apertures.
-
Alignment: Use a microscope to ensure the CPU or PMIC pads are perfectly centered in the stencil holes. Even a 0.01mm misalignment can cause bridges (shorts).
-
Paste Application: Use a high-quality “no-clean” solder paste (like Mechanic or Relife) with a 183°C melting point for the best results with this stencil.
