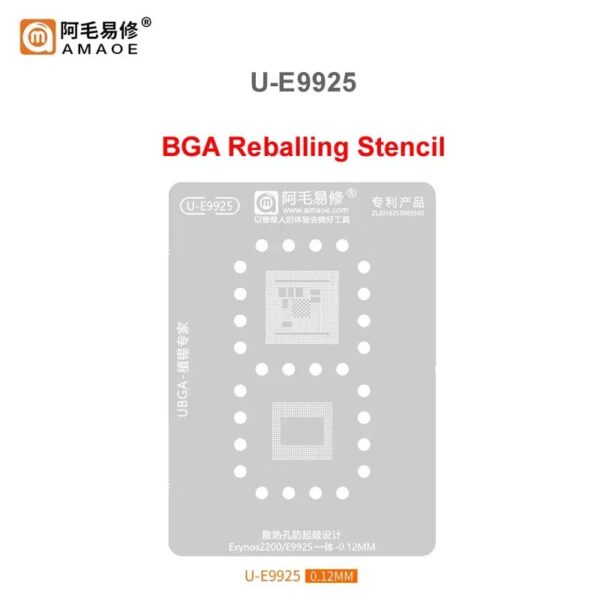

Amaoe U-E9925 BGA Reballing Stencil-Original
Unmatched Precision & Reliability
The Amaoe U-E9925 BGA Reballing Stencil-Original is designed for professionals who demand accuracy and efficiency in circuit board repairs. Crafted using high-quality materials, it ensures precise alignment, making reballing tasks seamless and hassle-free. Amaoe U-E9925 BGA Reballing Stencil-Original
Durable Design for Long-Term Use
This stencil combines durability with exceptional performance. Engineered for repeated use, it remains resilient against warping or wear, guaranteeing consistent results in every project. A must-have tool for electronics repair experts. Amaoe U-E9925 BGA Reballing Stencil-Original
Versatile Application for Various Devices
Compatible with a wide range of BGA chip sizes and electronic devices, the Amaoe U-E9925 BGA Reballing Stencil caters to diverse repair needs. Whether you work on smartphones, tablets, or other circuit boards, this stencil is your go-to solution for flawless reballing operations. Amaoe U-E9925 BGA Reballing Stencil-Original
The Amaoe U-E9925 is a precision-engineered BGA (Ball Grid Array) reballing stencil, widely regarded in the electronics repair industry as a “gold standard” tool for mobile phone IC (Integrated Circuit) maintenance. Manufactured by Amaoe, a leader in high-end repair stencils, the U-E9925 is specifically designed for high-density chipsets found in modern smartphones.
Below is a comprehensive breakdown of its original specifications, technical features, and metallurgical properties. Amaoe U-E9925 BGA Reballing Stencil-Original
Technical Specifications: Amaoe U-E9925
| Feature | Specification Details |
| Model Number | Amaoe U-E9925 |
| Material | High-Grade 304 High-Tension Stainless Steel |
| Thickness | 0.12mm (Ultra-thin precision) |
| Hole Design | Square holes with rounded corners (Anti-drumming design) |
| Manufacturing Process | High-speed Laser Cutting + Chemical Polishing |
| Heat Resistance | Up to 450°C (Optimized for lead-free solder paste) |
| Surface Coating | Anti-static, Non-stick oxidation layer |
| Supported Chips | Universal Mobile BGA / Specific CPU & PMIC (Platform dependent) |
| Alignment Marks | Laser-etched high-visibility guides |
Key Design Principles
1. Square Hole with Rounded Corners
Unlike cheaper stencils that use circular or sharp-edged square holes, the U-E9925 utilizes a specialized geometry. Amaoe U-E9925 BGA Reballing Stencil-Original
-
The Benefit: This design prevents the solder balls from getting stuck in the corners (a common issue known as “bridging”). The rounded interior allows for a smoother release of the solder paste when the stencil is lifted, ensuring uniform ball height. Amaoe U-E9925 BGA Reballing Stencil-Original
2. High-Grade 304 Stainless Steel
The choice of material is critical for thermal expansion management. When heat is applied via a hot air station, metal naturally expands. Amaoe U-E9925 BGA Reballing Stencil-Original
-
Thermal Stability: The U-E9925 is engineered to resist “warping” or “bubbling” during the heating process. This keeps the stencil flat against the IC, preventing solder paste from leaking between the chip and the stencil.
3. Precision Thickness ($0.12mm$)
In the world of BGA reballing, $0.12mm$ is considered the “sweet spot.” It is thick enough to provide structural integrity but thin enough to ensure that the solder balls formed are of the exact volume required for modern micro-BGA components.
Detailed Performance Analysis
Chemical Polishing
After the laser cutting process, Amaoe subjects the U-E9925 to a chemical polishing bath. This removes microscopic burrs from the interior of the holes. Smooth hole walls are the difference between a successful reball on the first try and a “failed bridge” that requires cleaning the chip and starting over.
Anti-Sticking Properties
The surface of the stencil is treated to reduce the adhesion of flux. This means that after the solder balls have melted and solidified, the stencil can be removed with minimal force, reducing the risk of pulling a freshly formed ball off its pad.
Alignment and Visibility
The stencil features laser-etched markings that do not fade over time. These markings are calibrated to standard microscope focal lengths, allowing technicians to align the IC pads with the stencil holes quickly under 10x or 20x magnification.
Best Practices for the U-E9925
To maintain the “original specifications” performance over the lifespan of the tool, technicians should follow these guidelines:
-
Cleaning: Use 99% Isopropyl Alcohol (IPA) and a soft-bristled brush. Avoid metal scrapers that can scratch the polished interior of the holes.
-
Paste Application: Use a high-quality “middle layer” solder paste (usually $183^{\circ}C$ or $138^{\circ}C$ depending on the chip sensitivity).
-
Heat Control: While the stencil can handle 450°C, it is recommended to use a swirling motion with the heat gun to distribute thermal load evenly across the 304 steel surface.
Why “Original” Matters
The market is flooded with “AAA” or “1:1” copies of Amaoe stencils. However, original Amaoe U-E9925 units are distinguished by their tensile strength. If you bend an original stencil slightly, it snaps back to a perfectly flat state. Counterfeit versions often use softer alloys that retain a “wave” after being bent or heated, which inevitably leads to uneven reballing.
