Amaoe U-MTK1 Stencil-Original
Enhance Your Repair Precision
The Amaoe U-MTK1 Stencil-Original is the ultimate companion for technicians seeking unparalleled accuracy in electronic repairs. Designed to deliver consistent results, it enables you to work smarter and faster while maintaining high-quality standards. Amaoe U-MTK1 Stencil-Original
Durable and Reliable Craftsmanship
Crafted with premium materials, this stencil resists wear and tear, offering lasting performance in high-demand environments. Its original design ensures a perfect fit for various professional repair tasks, making it a reliable tool for your workspace. Amaoe U-MTK1 Stencil-Original
Streamline Your Repair Workflow
The Amaoe U-MTK1 integrates seamlessly into your daily operations, helping you tackle complex challenges with ease. Whether you’re repairing fine electronic components or delicate circuitry, this stencil brings precision and efficiency to every project. Amaoe U-MTK1 Stencil-Original

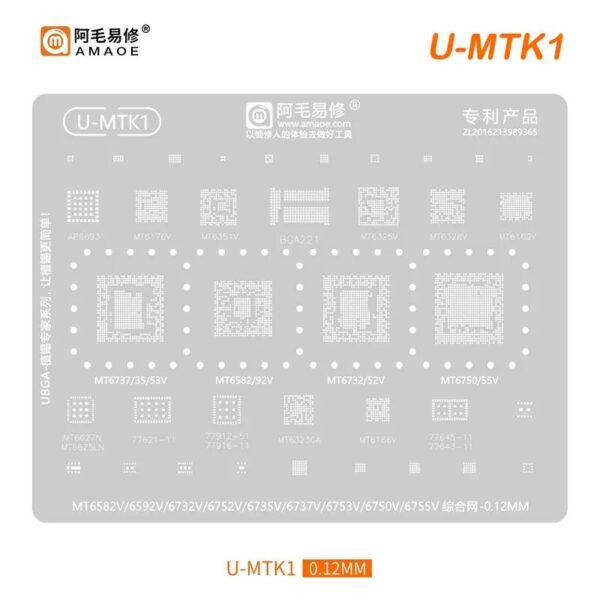

The Amaoe U-MTK1 is a professional-grade BGA reballing stencil specifically engineered for MediaTek (MTK) chipsets. Known for its “Original” status in the repair community, it is distinguished by its high-precision square-hole design and the use of imported Japanese steel. This stencil is a staple for technicians performing motherboard-level repairs on smartphones and tablets utilizing MTK architecture. Amaoe U-MTK1 Stencil-Original
Amaoe U-MTK1 Comprehensive Specifications
| Specification Category | Technical Detail |
| Brand | Amaoe (Authentic/Original) |
| Model Number | U-MTK1 (Universal MediaTek Series 1) |
| Primary Material | High-grade Japanese Stainless Steel |
| Thickness | $0.12\text{ mm}$ (Standard) / $0.15\text{ mm}$ (High Stability variants) |
| Hole Design | Square Hole (CNC Laser Cut) |
| Heat Resistance | Up to $500^\circ\text{C}$ (Anti-deformation) |
| Hole Pitch | High-precision $1:1$ matching to original IC footprint |
| Application | BGA Reballing / Solder Paste Planting |
| Compatible Chipsets | MTK CPU, Power IC, Audio IC, WiFi, and RF modules |
| Sternness | Super Hard / High Elasticity |
| Surface Finish | Anti-glare Matte / Polished Apertures |
Key Features and Design Philosophy
1. Material Science: Japanese Steel
The U-MTK1 utilizes specialized Japanese steel that provides a unique balance of rigidity and flexibility. Unlike generic stencils that may warp or expand permanently when exposed to the high heat of a rework station (usually between $320^\circ\text{C}$ and $380^\circ\text{C}$), the Amaoe material returns to its original flat state upon cooling. Amaoe U-MTK1 Stencil-Original
2. Square Hole Technology
Amaoe pioneered the move from round holes to square apertures. Square holes offer several advantages:
-
Easier Demolding: Solder balls are less likely to get stuck in the corners of a square hole compared to the circular friction of a round hole.
-
Uniform Solder Volume: It allows for a more consistent volume of solder paste to be deposited across the entire grid.
-
Alignment Precision: Square corners provide clearer visual cues for aligning the stencil with the IC pads.
3. Optimized Thickness ($0.12\text{ mm}$)
The $0.12\text{ mm}$ thickness is widely considered the “sweet spot” for modern smartphone ICs. It is thin enough to prevent solder bridging (where two pads accidentally connect) but thick enough to ensure the resulting solder balls have sufficient height to form a strong mechanical bond with the PCB. Amaoe U-MTK1 Stencil-Original
Supported IC and Chipset Compatibility
The U-MTK1 is a “Universal” style stencil, meaning it contains multiple layouts on a single sheet. It primarily supports the following MediaTek components:
-
CPUs: Older and mid-range MTK processors (e.g., MT65xx, MT67xx series).
-
Power Management (PMIC): Specialized sections for MT63xx power chips.
-
RF & Connectivity: Layouts for WiFi/Bluetooth combos and Radio Frequency chips.
-
Audio ICs: Dedicated grids for MTK audio amplification and processing units.
Maintenance and Best Practices
To maintain the “Original” performance of the Amaoe U-MTK1, technicians should follow these operational guidelines:
-
Cleaning: Use $99\%$ Isopropyl Alcohol (IPA) and a soft-bristled brush. Avoid metal scrapers that can scratch the polished apertures.
-
Thermal Management: While the stencil is rated for high heat, it is best practice to move the hot air gun in a circular motion to avoid localized heat stress in one spot for too long.
-
Solder Paste Choice: Use high-quality $183^\circ\text{C}$ or $138^\circ\text{C}$ solder paste. The precision of the Amaoe square holes is best utilized with “Type 4” or “Type 5” paste (smaller grain size).
Why “Original” Amaoe Matters
The market is flooded with “AAA” or “OEM” clones. The original Amaoe U-MTK1 is distinguishable by the cleanliness of the laser cuts. In counterfeits, the holes often have microscopic “burrs” or jagged edges that cause the solder balls to pop out unevenly or bridge during the reflow process. An authentic U-MTK1 ensures a first-pass success rate, which is critical when working on expensive customer devices. Amaoe U-MTK1 Stencil-Original
