Amaoe U-MTK2 Stencil-Original
Unlock Professional-Grade Repairs
The Amaoe U-MTK2 Stencil-Original is thoughtfully designed to deliver unmatched accuracy for delicate repair tasks. Whether you’re working on intricate electronics or small-scale components, this stencil guarantees precision and performance every time. Amaoe U-MTK2 Stencil-Original
Built for Durability and Efficiency
Crafted with premium materials, the Amaoe U-MTK2 Stencil ensures long-lasting reliability without compromising on functionality. Its robust construction supports efficient heat transfer, making it an ideal choice for high-temperature soldering processes. Amaoe U-MTK2 Stencil-Original
Versatility for Multiple Applications
From micro-soldering to circuit alignment, the Amaoe U-MTK2 Stencil adapts seamlessly to a variety of repair and assembly needs. Perfectly engineered for both professionals and DIY enthusiasts, it is a must-have tool for maximizing precision. Amaoe U-MTK2 Stencil-Original

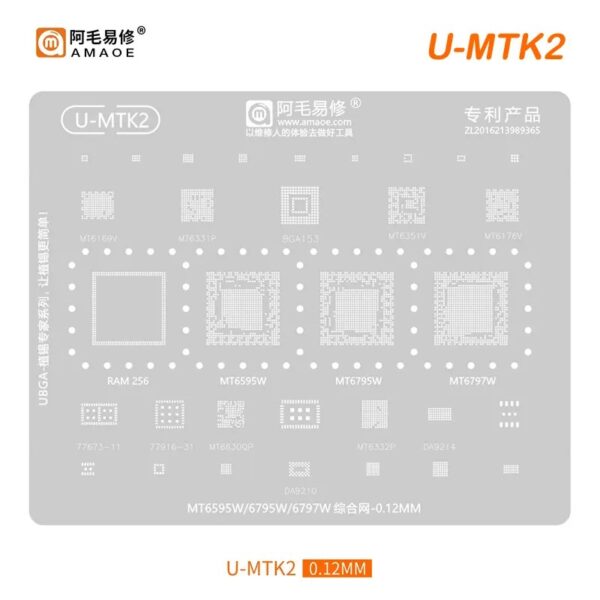

The Amaoe U-MTK2 (Universal MediaTek 2) is a professional-grade BGA reballing stencil widely recognized in the mobile electronics repair industry for its precision and durability. Specifically engineered for MediaTek chipsets, this “Original” series stencil is part of Amaoe’s high-end line, featuring square hole designs and anti-bulge technology to ensure consistent solder ball formation. Amaoe U-MTK2 Stencil-Original
Below are the full specifications and detailed compatibility lists for the Amaoe U-MTK2 Stencil. Amaoe U-MTK2 Stencil-Original
🛠️ Technical Specifications
| Feature | Details |
| Product Name | Amaoe U-MTK2 Original BGA Reballing Stencil |
| Manufacturer | Amaoe (Amaoe High-Tech) |
| Material | High-Quality 304 Stainless Steel (Imported) |
| Thickness | 0.12 mm |
| Aperture Type | Precision Laser-Cut Square Holes (Conical Design) |
| Heat Resistance | Up to 450°C (Anti-drum/Anti-warping design) |
| Application | Solder Paste Application & BGA Reballing |
| Target ICs | MediaTek (MTK) Power, RF, and RAM Chips |
| Weight | ~0.02 kg |
| Finish | Polished surface for easy paste release |
📱 Integrated Circuit (IC) Compatibility
The U-MTK2 is a “multi-purpose” stencil, meaning it contains multiple specialized grids on a single sheet. It is designed to service a specific cluster of MediaTek ICs commonly found in Android smartphones (Xiaomi, Oppo, Vivo, Samsung).
Supported IC Models:
-
Power Management (PMIC): MT6169V, MT6331P, MT6351V
-
RF Transceivers: MT6176V
-
Memory/Storage: BGA153 (eMMC/UFS)
-
Processors/RAM: LPDDR RAM (RAM256 configuration)
🌟 Key Features & Design Benefits
1. 0.12mm Precision Thickness
The 0.12mm thickness is considered the “gold standard” for modern smartphone repair. It is thin enough to prevent solder bridging (short circuits) while being thick enough to provide structural integrity. This ensures that the solder balls formed are of uniform height across the entire chip.
2. Square Hole Technology
Unlike cheaper stencils that use round holes, the Amaoe U-MTK2 uses square apertures with a slightly tapered (conical) profile. This design allows the solder paste to release more cleanly when the stencil is lifted, reducing the risk of “pulled” or uneven solder balls.
3. High-Temperature Anti-Drum Design
A common issue during reballing is the “drum” effect, where the heat from a hot air gun causes the stencil to expand and bulge in the center. The U-MTK2 features strategic heat-relief cutouts and high-tensile steel that maintains flatness even under direct heat, ensuring the chip stays flush against the mesh.
4. Imported Steel Construction
Amaoe uses high-quality imported stainless steel. This material is resistant to oxidation and corrosion from flux, meaning the stencil won’t rust or degrade after multiple cleanings with isopropyl alcohol or ultrasonic cleaners.
📋 Usage Guidelines for Professionals
To achieve the best results with the Amaoe U-MTK2, technicians should follow these operational parameters:
-
Solder Paste Choice: Use a high-quality solder paste with a melting point of 183°C (Leaded) or 217°C (Lead-Free), depending on the specific repair requirements.
-
Cleaning: After every use, clean the stencil immediately with 99% Isopropyl Alcohol (IPA) and a soft brush. Ensure no dried paste remains in the square apertures.
-
Alignment: Use a microscope to ensure the IC pads are perfectly centered within the square holes. The U-MTK2 features etched alignment markings to assist with this.
-
Heat Application: Use a circular motion with your hot air station. Avoid staying on one spot for too long to prevent localized thermal expansion.
⚖️ Comparative Advantage
Compared to “Universal” 0.3mm to 0.5mm stencils, the U-MTK2 is a “Dedicated Universal” tool. It bridges the gap between a single-model stencil and a generic grid, providing the precision of a dedicated stencil for a broad range of the most common MediaTek chips in the market today.
