Amaoe U-MTK5 Stencil-Original
Achieve Precision with Amaoe U-MTK5 Stencil
The Amaoe U-MTK5 Stencil-Original is engineered for professionals and hobbyists who demand accurate and reliable results every time. Crafted with high-quality materials, it ensures smooth operation and outstanding durability, making it perfect for intricate tasks requiring attention to detail. Amaoe U-MTK5 Stencil-Original
Built for Durability and Versatility
Designed to cater to various applications, the Amaoe U-MTK5 Stencil provides superior strength and resilience. Whether you’re working on delicate components or robust setups, it holds up exceptionally well under consistent use. Its versatile design adapts seamlessly to different project requirements. Amaoe U-MTK5 Stencil-Original
Effortless Use and Consistent Results
This original Amaoe stencil prioritizes ease of use without compromising on precision. Its lightweight design and optimal dimensions make handling and application straightforward, even for extended periods. Experience consistency and professionalism in every outcome you achieve with the Amaoe U-MTK5 Stencil-Original

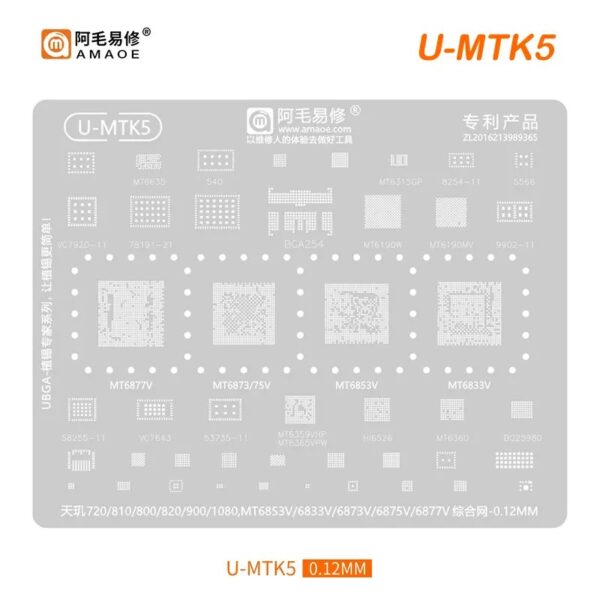

The Amaoe U-MTK5 is a professional-grade BGA (Ball Grid Array) reballing stencil specifically engineered for high-precision repairs on MediaTek (MTK) processors and integrated circuits. Known for its durability and precise aperture alignment, it is a staple in mobile phone repair laboratories worldwide. Amaoe U-MTK5 Stencil-Original
Product Overview
The U-MTK5 series is part of Amaoe’s “Universal” line, though it is highly specialized for the MediaTek Dimensity and 5G chipsets. It facilitates the “reballing” process—replacing the solder balls on the bottom of a chip—which is essential for fixing motherboards with loose connections or damaged solder joints caused by heat or physical impact. Amaoe U-MTK5 Stencil-Original
Full Specifications: Amaoe U-MTK5
| Specification | Details |
| Brand | Amaoe (Original) |
| Model Number | U-MTK5 (Universal MediaTek Series 5) |
| Material | Japanese High-Grade Steel (Stainless Steel Alloy) |
| Stencil Thickness | 0.12mm (Standard) / 0.15mm (Heavy Duty variants) |
| Aperture Type | Square Hole (CNC Laser Cut) |
| Maximum Heat Resistance | Up to 500°C |
| Surface Finish | High-Polished (Anti-Stick) |
| Design Style | 2D Single Layer |
| Weight | ~0.010 kg (Lightweight for precision handling) |
| Compatibility | MediaTek Dimensity, Power ICs, and 5G RF Chips |
| Reusability | High (Multi-cycle durability without warping) |
Comprehensive IC Compatibility List
The U-MTK5 is prized for its broad compatibility with modern 5G and high-performance MediaTek chips. It covers several critical components used in brands like Xiaomi, Vivo, Oppo, and Samsung. Amaoe U-MTK5 Stencil-Original
1. Central Processing Units (CPUs)
The stencil is primarily designed for the following Dimensity and MTK series:
-
Dimensity 720 (MT6853V)
-
Dimensity 800 / 800U (MT6873 / MT6853)
-
Dimensity 810 (MT6833V)
-
Dimensity 820 (MT6875V)
-
Dimensity 900 (MT6877V)
-
Dimensity 1080 (Newer revisions)
2. Supporting ICs and Power Management
Beyond the main processor, the U-MTK5 includes patterns for:
-
MT6190W: 5G RF Transceiver
-
MT6360: Power Management IC (PMIC)
-
MT6359VNP: Audio/Power Management
-
BQ25980: High-efficiency switching battery charger IC
Key Features and Engineering Advantages
1. High-Grade Japanese Steel
Unlike cheaper stencils that use standard tin or low-grade stainless steel, Amaoe utilizes Japanese-imported steel. This material is specifically chosen for its “memory” properties; it can expand under heat and return to its original flat state without permanent deformation or “bulging.” Amaoe U-MTK5 Stencil-Original
2. Square Hole Aperture Design
The apertures are laser-cut into a square shape rather than a circular one. This design choice is critical for:
-
Paste Release: Solder paste releases more cleanly from the corners of a square hole than from a circle.
-
Ball Formation: During the heating process, the surface tension of the molten solder naturally pulls it into a perfect sphere, using the square corners as stable guide points.
3. Optimal Thickness (0.12mm)
The 0.12mm thickness is the “Goldilocks” zone for modern mobile ICs. It is thin enough to prevent “solder bridging” (where two balls touch and short-circuit) but thick enough to ensure the solder balls have sufficient volume for a reliable mechanical and electrical bond to the PCB. Amaoe U-MTK5 Stencil-Original
4. Heat Dissipation Holes
A signature feature of the Amaoe U-series is the inclusion of small, non-functional holes distributed around the active reballing areas. These act as thermal vents, allowing heat to dissipate evenly across the stencil, which prevents the steel from warping during the reflow process. Amaoe U-MTK5 Stencil-Original
Best Practices for Use
To maximize the lifespan of the Amaoe U-MTK5, technicians should follow these operational guidelines:
-
Cleaning: Use 99% Isopropyl Alcohol (IPA) and a soft-bristled brush after every use. Never use metal scrapers to clean the holes, as this can burr the edges.
-
Solder Paste: Use high-quality 183°C (Leaded) or 217°C (Lead-Free) solder paste with a fine particle size (Type 4 or Type 5).
-
Heating: Apply heat evenly using a Hot Air Rework Station at approximately 330°C–350°C with low airflow to prevent the stencil from lifting.
Comparison: Amaoe vs. Generic Stencils
| Feature | Amaoe U-MTK5 | Generic Stencil |
| Material | High-hardness Japanese Steel | Soft Stainless Steel |
| Thermal Stability | No bulging at high temps | Frequent warping/bulging |
| Precision | CNC Laser Cut (Micron precision) | Etched or Standard Laser (Rough edges) |
| IC Fit | 1:1 Exact Match | Loose or Tight fitment issues
|
