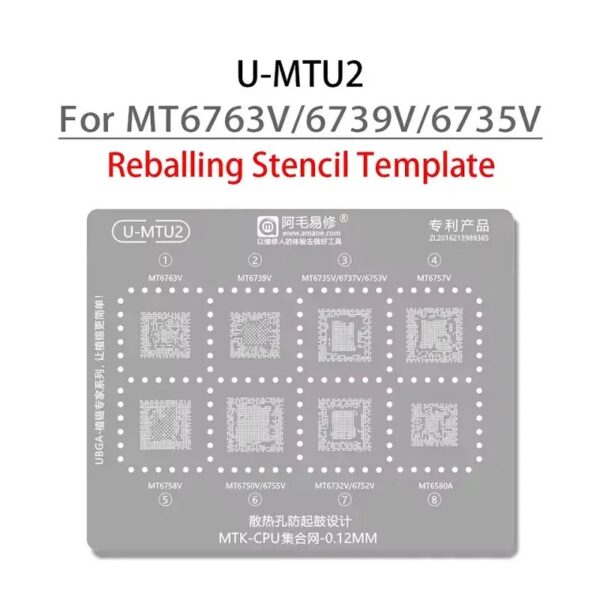

Amaoe U-MTU2 BGA Reballing Stencil-Original
Exceptional Craftsmanship for Precise Results
The Amaoe U-MTU2 BGA Reballing Stencil-Original is designed to meet the highest standards in chip reballing and repair. Crafted with precision, this stencil guarantees accuracy and efficiency for both professionals and DIY enthusiasts handling BGA chip repairs. Its durable build ensures consistent performance over time, offering reliable results for intricate projects. Amaoe U-MTU2 BGA Reballing Stencil-Original
Streamlined Repair Process
Say goodbye to tedious, error-prone methods with this expertly engineered tool. The Amaoe U-MTU2 simplifies reballing by providing accurate alignment and handling for BGA chips of various sizes. Each stencil is tailored for optimal usability, making it a go-to asset for technicians looking to streamline their process. Amaoe U-MTU2 BGA Reballing Stencil-Original
Durability Meets Versatility
Made from robust materials, the Amaoe U-MTU2 BGA Reballing Stencil offers remarkable durability that stands the test of time. Whether you are working in a fast-paced tech environment or pursuing personal repair projects, this versatile stencil adapts effortlessly to your needs. Unlock quicker, more reliable repairs for a range of electronic devices. Amaoe U-MTU2 BGA Reballing Stencil-Original
The Amaoe U-MTU2 is a professional-grade BGA reballing stencil specifically engineered for high-precision maintenance of MediaTek (MTK) processors and associated RAM modules. As a part of the “U-Series” (Universal/Ultra series), it is designed to provide comprehensive coverage for a specific generation of mid-range and high-performance MTK chipsets commonly found in Android smartphones from brands like Xiaomi, Realme, Vivo, and Oppo. Amaoe U-MTU2 BGA Reballing Stencil-Original
Original Specifications: Amaoe U-MTU2
The following table outlines the technical specifications and material properties of the original Amaoe U-MTU2 stencil. Amaoe U-MTU2 BGA Reballing Stencil-Original
| Parameter | Specification Details |
| Brand | Amaoe (Authentic Original) |
| Model Number | U-MTU2 (MTK CPU & RAM Series) |
| Material | High-Grade Japanese Stainless Steel (301 Series equivalent) |
| Thickness | 0.12mm (Ultra-thin precision) |
| Hole Type | Square-round (CNC Laser Cut) |
| Thermal Stability | High-temperature resistant (Anti-deformation/Anti-drum) |
| IC Support | MT6763V, MT6739V, MT6735V, MT6758V, MT6750V, and associated RAM |
| Coating | Non-stick surface treatment for easy solder paste release |
| Dimensions | Standardized for universal reballing platforms |
Key Technical Features
The Amaoe U-MTU2 stands out in the micro-soldering industry due to several proprietary design choices that prioritize the success rate of the reballing process.
1. 0.12mm Precision Thickness
The thickness of a stencil is the most critical factor in determining the height and volume of the solder balls. At 0.12mm, the U-MTU2 provides the ideal balance between structural integrity and the correct amount of solder paste. If a stencil is too thick, it can lead to solder bridging; if too thin, the solder balls may be too small to form a reliable connection.
2. CNC Laser-Cut “Square-Round” Holes
Unlike cheaper chemically etched stencils that may have tapered or irregular hole walls, Amaoe uses high-precision CNC laser cutting. The holes are designed with a square-round geometry. This design ensures that the solder paste is released cleanly from the stencil without sticking to the corners, resulting in perfectly uniform, spherical solder balls after the reflow process.
3. Anti-Drum (Deformation Resistant) Design
One of the primary challenges in reballing is the stencil “bowing” or “drumming” when heat is applied. The U-MTU2 is manufactured from specialized Japanese steel that has been treated to maintain its flatness under high temperatures. This ensures that the stencil remains in flush contact with the IC throughout the heating cycle, preventing solder paste from leaking between the chip and the mesh.
IC Compatibility List
The U-MTU2 is a multi-purpose stencil. Instead of supporting just one chip, it contains precision-aligned layouts for a cluster of related MTK chipsets:
-
MT6763V (Helio P23): Widely used in mid-range devices for its balance of power and efficiency. Amaoe U-MTU2 BGA Reballing Stencil-Original
-
MT6739V: A popular entry-level 4G chipset.
-
MT6735V: A legacy but still common chipset in many budget smartphones. Amaoe U-MTU2 BGA Reballing Stencil-Original
-
MT6750V / MT6758V: Higher-tier mid-range processors requiring precise pin alignment. Amaoe U-MTU2 BGA Reballing Stencil-Original
-
Integrated RAM Modules: The stencil includes layouts for the LPDDR memory chips that frequently pair with these CPUs. Amaoe U-MTU2 BGA Reballing Stencil-Original
Usage Best Practices
To maintain the “Original Specification” performance of the U-MTU2, technicians should follow these maintenance steps: Amaoe U-MTU2 BGA Reballing Stencil-Original
-
Cleaning: Always clean the stencil with 99% Isopropyl Alcohol (IPA) or a dedicated stencil cleaner immediately after use to prevent solder paste from hardening in the apertures.
-
Storage: Store the stencil flat in its original protective packaging to prevent bending or creasing. Amaoe U-MTU2 BGA Reballing Stencil-Original
-
Solder Paste: Use high-quality 183°C or 138°C (low-melt) solder paste for best results, depending on the sensitivity of the IC. Amaoe U-MTU2 BGA Reballing Stencil-Original
