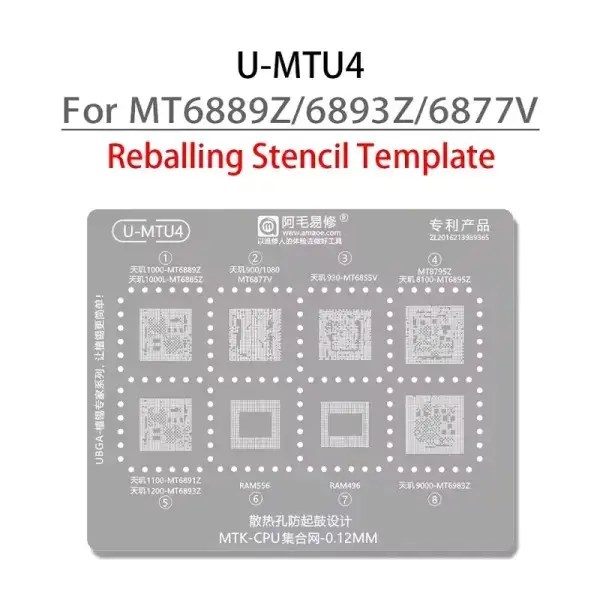

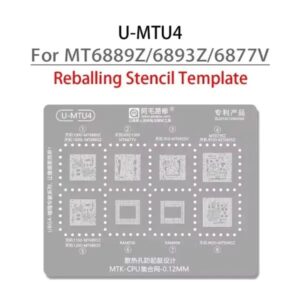

Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
High-Precision Stencil for Professional Results
The Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram is your go-to solution for achieving precise and accurate repairs on MTK CPU and RAM components. Designed with meticulous attention to detail, this stencil is perfect for technicians and repair professionals seeking reliability and superior craftsmanship. Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
Durable Build for Long-Term Use
Crafted from high-quality materials, this original Amaoe stencil ensures durability even with repeated usage. Its strong, wear-resistant design minimizes deformation, making it suitable for intensive repair tasks while preserving its functionality over time. Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
Easy to Use for Seamless Repairs
The U-MTU4 stencil’s user-friendly structure allows for seamless alignment with MTK CPU & RAM, ensuring smooth and efficient repair processes. Whether you’re fixing smartphones, tablets, or other devices, this stencil is a must-have for precise reballing and soldering projects. Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
The Amaoe U-MTU4 is a professional-grade BGA reballing stencil specifically engineered for high-end MediaTek (MTK) processors and associated RAM modules. As part of the Amaoe “U-MTU” series, it is designed for precision rework on modern smartphone motherboards where chip density is high and tolerance for error is nearly zero. Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
Below are the full technical specifications and compatibility details for the original Amaoe U-MTU4 stencil. Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
🛠️ Technical Specifications
The U-MTU4 is manufactured using high-quality materials to ensure it maintains its shape under the thermal stress of a heat gun.
| Feature | Specification Details |
| Brand | Amaoe (Authentic/Original) |
| Model Number | U-MTU4 (also referred to as U-MTK4 in some regions) |
| Material | High-grade Japanese Stainless Steel (301 Series) |
| Thickness | 0.12 mm (Ultra-thin for precision paste transfer) |
| Hole Design | Square apertures with rounded corners (prevents solder sticking) |
| Manufacturing Process | Laser-cut CNC for 1:1 original factory alignment |
| Heat Resistance | Up to 450°C (Anti-warping/Anti-bulge technology) |
| Hardness | Super-hard/Toughness rated for repeated professional use |
| Application | MTK CPU and RAM Chip Reballing / Solder Tin Planting |
📱 Chipset Compatibility List
The U-MTU4 is versatile, covering a range of popular MediaTek Dimensity and MT-series chips found in mid-to-high-end Android devices (Xiaomi, Oppo, Vivo, Realme).
Supported CPUs & ICs
-
Dimensity Series: MT6889Z (Dimensity 1000+), MT6877V (Dimensity 900/1080), MT6855V (Dimensity 930), MT6891Z (Dimensity 1100), MT6893Z (Dimensity 1200). Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
-
High-End MT Series: MT6885Z, MT8795Z, MT6898Z, MT6983Z (Dimensity 9000). Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
-
General MTK Series: MT6768V, MT6769V, MT6853V, MT6758V, MT6779V. Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
Supported RAM Modules
-
LPDDR Configurations: RAM556, RAM496 (Commonly paired with Dimensity chipsets).
-
Integrated Units: Designed specifically to fit the “Top-Pop” (Package on Package) RAM layouts used in modern MTK architectures.
✨ Key Features & Advantages
-
Precision Alignment: The stencil features a “1:1″ ratio, meaning the holes align exactly with the original chip’s solder pads. This significantly reduces the risk of solder bridges (short circuits).
-
Heat Dissipation Design: Unlike cheaper stencils that “bulge” when heated, the Amaoe original uses a specialized steel blend that remains flat, allowing for even heat distribution across the IC.
-
Clean Solder Release: The square holes are tapered slightly to ensure that once the solder paste is heated or the stencil is lifted, the tin “balls” stay on the chip rather than sticking to the stencil walls.
-
Durability: It is resistant to corrosion from aggressive flux and can be cleaned repeatedly with ultrasonic cleaners or PCB cleaners without losing its structural integrity. Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
💡 Usage Pro-Tips
-
Cleaning: Always clean the stencil with Isopropanol (IPA) or specialized PCB cleaner after every use to prevent dried solder paste from clogging the 0.12mm apertures. Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
-
Paste Selection: For best results with this specific thickness, use a high-quality solder paste with a melting point of 183°C (Leaded) or 217°C (Lead-free) depending on the device requirements. Amaoe U-MTU4 Stencil-Original for Mtk Cpu & Ram
-
Pressure: Apply even, firm pressure when scraping the paste. Because the stencil is only 0.12mm thin, excess pressure can cause the stencil to flex, leading to uneven solder ball height.
