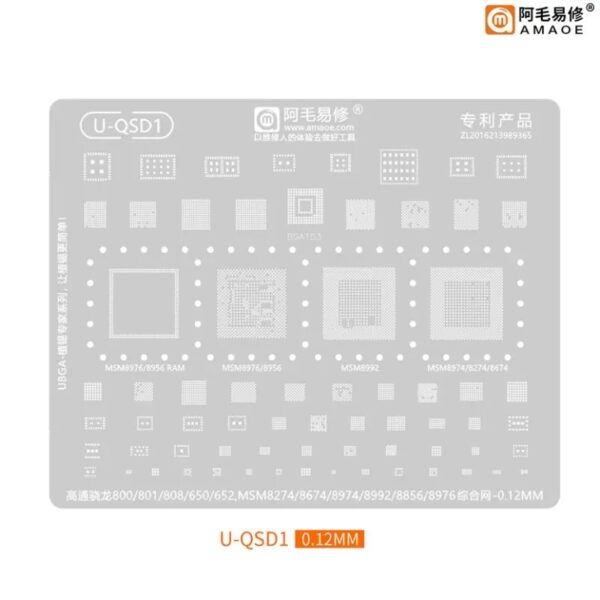

Amaoe U-QSD1 Stencil-Original
Unmatched Precision for Your Craft
The Amaoe U-QSD1 Stencil-Original is designed to elevate your crafting and repair projects to new heights. Manufactured using high-quality materials, it ensures unparalleled precision for intricate designs and patterns, making it ideal for both professionals and hobbyists. Amaoe U-QSD1 Stencil-Original
Durability That Lasts
Built with durability in mind, this stencil withstands rigorous use, promising longevity and consistent performance. Whether you’re working on electronics or creative projects, the Amaoe U-QSD1 Stencil is your dependable tool for precision and reliability. Amaoe U-QSD1 Stencil-Original
Easy to Use and Versatile
Simplify your crafting process with this easy-to-use stencil. Its versatility allows it to shine in diverse applications, making it a must-have addition to any toolkit or workspace. Amaoe U-QSD1 Stencil-Original
The Amaoe U-QSD1 Stencil is a premier micro-soldering tool designed specifically for high-precision BGA (Ball Grid Array) reballing on Qualcomm-based mobile device motherboards. Manufactured from high-grade stainless steel, it is recognized for its heat resistance and mechanical durability, making it a staple in professional repair labs. Amaoe U-QSD1 Stencil-Original
Below are the comprehensive technical specifications and details for the Original Amaoe U-QSD1 Stencil. Amaoe U-QSD1 Stencil-Original
🛠️ Full Technical Specifications
| Category | Specification Details |
| Brand | Amaoe (Authentic Original) |
| Model Number | U-QSD1 (Qualcomm Series 1) |
| Material | High-Quality Japanese Imported 304 Stainless Steel |
| Stencil Thickness | 0.12 mm (Ultra-precise) |
| Hole Pattern | Square-holed design for better paste release |
| Heat Resistance | Up to 105°C (Anti-bulge/Anti-deformation) |
| Color | Matte Silver / Gray |
| Compatibility | Qualcomm Snapdragon MSM8976, MSM8956, MSM8992, MSM8974, etc. |
| BGA Types | BGA153 and related Qualcomm IC footprints |
| Net Weight | Approx. 0.02kg – 0.05kg |
| Package Contents | 1x Original Amaoe U-QSD1 Reballing Stencil |
📱 Supported Chipsets & IC Models
The U-QSD1 is a “Multi-purpose” stencil within the Qualcomm ecosystem. It is specifically engineered to align with several high-performance processors and RAM modules used in a variety of flagship and mid-range Android devices.
Primary Processors (CPUs)
-
Snapdragon 800 / 801 Series: (MSM8974 / MSM8274 / MSM8674)
-
Snapdragon 808 Series: (MSM8992)
-
Snapdragon 650 / 652 Series: (MSM8956 / MSM8976)
Memory & RAM Modules
-
Dedicated areas for MSM8976 RAM and MSM8956 RAM tin planting.
💎 Key Features & Material Science
1. 0.12mm Precision Thickness
The thickness is the “Goldilocks” zone for reballing. At 0.12mm, the stencil provides enough solder paste volume to create sturdy, uniform solder balls without being so thick that it causes bridging (solder bleeding between pads). Amaoe U-QSD1 Stencil-Original
2. Square Aperture Design
Unlike older circular-hole stencils, Amaoe uses laser-cut square apertures. This geometry reduces the surface tension between the solder paste and the stencil walls, allowing the “tin” to release cleanly when the stencil is lifted, preventing “ghosting” or missing balls. Amaoe U-QSD1 Stencil-Original
3. Anti-Drum / Heat Resistance
The U-QSD1 is treated to resist the “drum” effect—where heat causes the metal to expand and warp upwards. This ensures the stencil remains flat against the IC throughout the heating process, maintaining a perfect seal. Amaoe U-QSD1 Stencil-Original
4. Cooling & Exhaust Holes
You will notice tiny auxiliary holes around the main IC area. These are designed for heat dissipation and to allow gases to escape during the soldering process, preventing the solder paste from bubbling or popping. Amaoe U-QSD1 Stencil-Original
🛠️ Operational Guide for Professionals
To maximize the lifespan of your Amaoe U-QSD1 and ensure successful reballing:
-
Preparation: Clean the IC and the stencil with 99% Isopropyl Alcohol (IPA) to remove any old flux or debris.
-
Alignment: Position the IC under the corresponding pattern. The U-QSD1 features high-transparency laser cutting, making it easy to align the pads with the holes.
-
Paste Application: Apply a high-quality solder paste (e.g., 183°C or 138°C depending on the component) using a scraper. Ensure all holes are filled evenly.
-
Cleaning Excess: Wipe away excess paste from the surface of the stencil before applying heat.
-
Heating: Use a hot air station set to a low airflow to prevent the stencil from shifting. Once the solder balls “shine” and liquefy, remove the heat.
-
Separation: Wait for the solder to solidify (approx. 5–10 seconds) before gently lifting the stencil.
⚠️ Maintenance and Storage
-
Do not bend: Although flexible, permanent creases will ruin the alignment.
-
Avoid Abrasives: Never use metal brushes to clean the stencil; use a soft-bristled toothbrush and IPA.
-
Chemical Safety: The stencil is made of high-quality steel that does not release toxic fumes at standard soldering temperatures.
Note: The U-QSD1 is part of a broader series. If you are working on the Snapdragon 8 Gen 2 or newer, you may require the U-QSD10 or U-QSD12 models, which feature updated pin layouts. Amaoe U-QSD1 Stencil-Original
