Amaoe U-QSD3 Stencil-Original
Unmatched Precision for Every Project
The Amaoe U-QSD3 Stencil-Original is designed to deliver accurate results with minimal effort. Whether you’re working on intricate tasks or large-scale designs, this stencil ensures crisp and consistent shapes, saving you time and maximizing productivity. Amaoe U-QSD3 Stencil-Original
Premium Quality for Long-Term Use
Crafted with high-quality materials, the Amaoe U-QSD3 Stencil guarantees durability and reliability. It’s resistant to wear and tear, ensuring it stands up to frequent use without compromising performance. Amaoe U-QSD3 Stencil-Original
A Versatile Addition to Your Toolkit
The Amaoe U-QSD3 Stencil is compatible with a wide range of applications, making it an essential tool for professionals and hobbyists alike. Its universal design allows for seamless integration into your creative projects, providing the flexibility you need to unleash your creativity. Amaoe U-QSD3 Stencil-Original

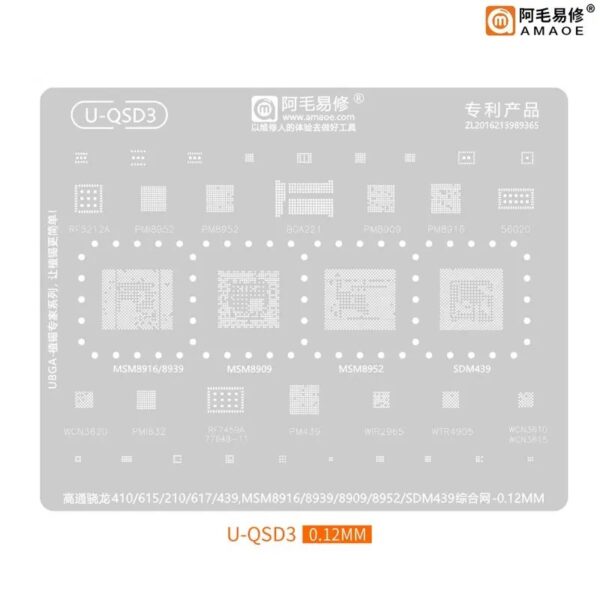

The Amaoe U-QSD3 Stencil is a precision-engineered tool designed for high-end electronics repair, specifically targeting the Qualcomm Snapdragon (QSD) series of processors and their integrated power management systems. In the world of microsoldering, Amaoe is widely regarded as the “gold standard” for stencils due to their heat resistance and hole alignment accuracy. Amaoe U-QSD3 Stencil-Original
Below is the comprehensive technical breakdown and specifications for the U-QSD3 model. Amaoe U-QSD3 Stencil-Original
Technical Specifications Table
| Feature | Specification Detail |
| Model Number | U-QSD3 (Universal Qualcomm Series 3) |
| Manufacturer | Amaoe (Authentic/Original) |
| Material | High-Grade Imported Japanese Steel (High-Carbon Stainless) |
| Thickness | 0.12mm (Ultra-thin for precise solder paste deposition) |
| Hole Design | Square holes with rounded corners (Laser-cut) |
| Thermal Expansion | Low Coefficient (Anti-bulge / Anti-warping) |
| Supported Chips | Qualcomm Snapdragon 845, 855, 865, 765G, and associated PMICs |
| Alignment Technology | High-precision CNC laser positioning |
| Heat Resistance | Up to 450°C (optimized for 320°C – 380°C reballing) |
| Edge Finish | Bur-free, polished edges to prevent PCB scratching |
Detailed Component Support
The U-QSD3 is a “multi-purpose” stencil, meaning it doesn’t just cover one CPU. It is designed to service a specific generation of Qualcomm architecture found in flagship Android devices (Samsung, OnePlus, Xiaomi, etc.). Amaoe U-QSD3 Stencil-Original
1. CPU & RAM Tier
The stencil includes patterns for the Snapdragon 855 (SM8150) and Snapdragon 865 (SM8250). These are often BGA (Ball Grid Array) components that require a “sandwich” reballing technique where the RAM is layered on top of the CPU. The U-QSD3 provides the exact pitch required for these high-density connections. Amaoe U-QSD3 Stencil-Original
2. Power Management (PMIC)
It includes apertures for the PM8150 and PM8150B/L series. Power management chips are notoriously difficult to reball because they are smaller and more sensitive to heat than the main processor. Amaoe U-QSD3 Stencil-Original
3. Integrated Storage (UFS)
The stencil supports several UFS 2.1 and 3.0 flash storage chips commonly paired with the 800-series Snapdragon chipsets. Amaoe U-QSD3 Stencil-Original
Design and Material Advantages
The “Square Hole” Innovation
Unlike cheaper stencils that use circular holes, the Amaoe U-QSD3 features square holes with rounded interior corners. This is a critical design choice:
-
Paste Release: Solder paste releases more cleanly from a square hole, preventing “bridging” (where two solder balls merge).
-
Ball Formation: During the heating phase, the surface tension of the molten solder naturally forms a perfect sphere. The square hole ensures there is enough volume of paste to create a robust, uniform ball.
Thermal Stability
One of the biggest frustrations in reballing is the “pop-up” effect, where the stencil warps under the heat of a hot air gun. The U-QSD3 uses a specific grade of stainless steel that maintains its flatness even at the melting point of lead-free solder ($217^\circ C$). This ensures that the solder paste doesn’t leak under the stencil during the process.
0.12mm Precision
The thickness of 0.12mm is the industry “sweet spot.” If a stencil is too thick (0.15mm+), the solder balls become too large and short-circuit the chip. If it is too thin (0.10mm), the balls are too small and won’t make a reliable connection to the motherboard. Amaoe’s 0.12mm calibration is designed for the tight pitch of modern smartphones.
Usage Recommendations
To maximize the lifespan of your original Amaoe U-QSD3:
-
Cleaning: Always clean the stencil immediately after use using 99% Isopropyl Alcohol (IPA) and a soft-bristled brush. Dried solder paste in the apertures will ruin future alignments.
-
Paste Application: Use a high-quality “middle-layer” solder paste (usually $183^\circ C$ or $190^\circ C$ depending on the device requirements).
-
Heat Control: When reballing, use a circular motion with your hot air station. Do not focus heat on a single spot for more than 5-8 seconds to prevent any potential micro-warping.
-
Pressure: Use a pair of anti-static tweezers to hold the stencil firmly against the chip. The U-QSD3’s precision alignment marks make it easy to see when the pads are perfectly centered.
