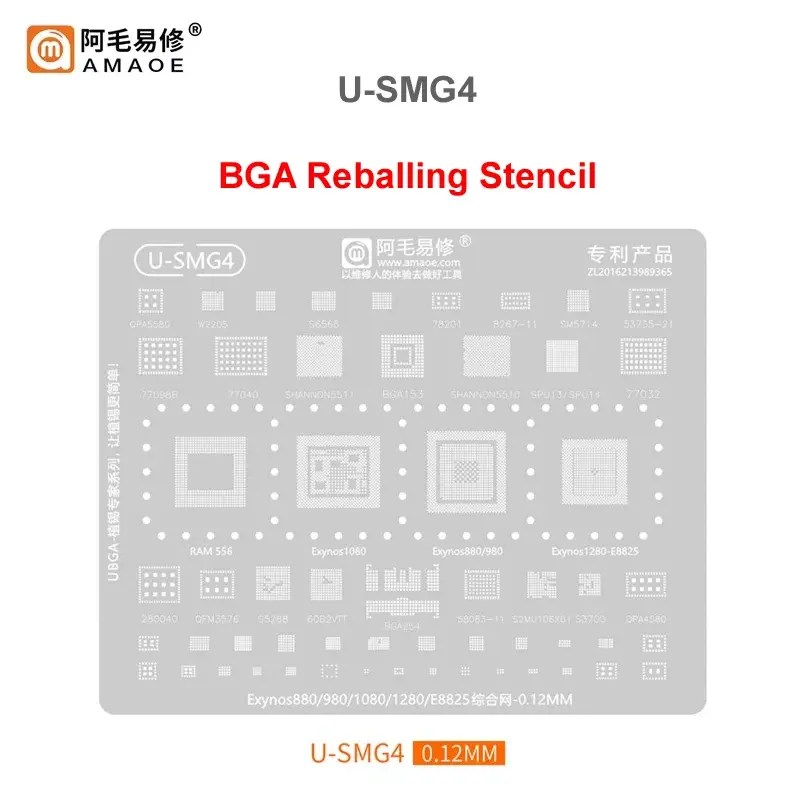

Amaoe U-SMG4 BGA Reballing Stencil-Original
High-Quality BGA Reballing Solution
Introducing the Amaoe U-SMG4 BGA Reballing Stencil-Original, designed for precision and efficiency. This expertly crafted tool is an essential component for any technician dealing with intricate BGA reballing tasks. Amaoe U-SMG4 BGA Reballing Stencil-Original
Durable Materials for Long-Term Performance
Built with high-quality, durable materials, the Amaoe U-SMG4 stencil ensures reliable performance even with constant use. It is designed to seamlessly handle various BGA chip reballing requirements, ensuring perfect alignment every time. Amaoe U-SMG4 BGA Reballing Stencil-Original
Ideal Choice for Repair Professionals
Whether you’re a seasoned technician or just starting, the Amaoe U-SMG4 BGA Reballing Stencil is engineered to simplify your repair tasks. Its precise cutouts and excellent build quality make it a go-to tool for consistent and accurate results. Amaoe U-SMG4 BGA Reballing Stencil-Original
The Amaoe U-SMG4 BGA Reballing Stencil is a high-precision maintenance tool specifically engineered for the professional repair of Samsung smartphones. Part of the renowned “U-SMG” series by Amaoe, this stencil is designed to handle the complex ball grid array (BGA) layouts of modern Exynos processors and their companion integrated circuits (ICs). Amaoe U-SMG4 BGA Reballing Stencil-Original
Known for its “square hole” design and spring-steel durability, the U-SMG4 is a staple for technicians performing chip-level repairs, such as CPU transplants or resolving boot-loop issues caused by fractured solder joints. Amaoe U-SMG4 BGA Reballing Stencil-Original
Technical Specifications Table
The following table outlines the physical and technical parameters of the original Amaoe U-SMG4 stencil.
| Feature | Specification Details |
| Brand | Amaoe (Authentic Original) |
| Model Number | U-SMG4 (Samsung Series) |
| Material | Japanese Imported High-Quality Spring Steel |
| Thickness | 0.12 mm (Optimized for paste application) |
| Hole Design | Precision Laser-Cut Square Holes |
| Heat Resistance | Up to 450°C (Anti-bulging technology) |
| Manufacturing Process | CNC Etching & Laser Drilling |
| Aperture Alignment | High-density 1:1 IC matching |
| Compatibility | Samsung Exynos 880, 980, 1080, 1280 Series |
| Dimensions | Approx. 100mm x 80mm |
| Weight | ~0.02 kg (Ultra-lightweight) |
Detailed Chipset Compatibility
The U-SMG4 is highly specialized. While universal stencils offer a broad range of holes, the U-SMG4 features dedicated “nests” for specific high-performance Samsung chips. Amaoe U-SMG4 BGA Reballing Stencil-Original
1. Application Processors (CPU)
This stencil is primarily used for the following Exynos generations found in mid-to-high-range Samsung A-series and specialized Vivo/Oppo models:
-
Exynos 880 / 980: Commonly used in 5G mid-range devices.
-
Exynos 1080: A 5nm flagship-grade SoC.
-
Exynos 1280: Frequent in the Samsung Galaxy A53 and A33 5G series.
-
Exynos E8825: Specialized variations of the above architectures.
2. Peripheral & Communication ICs
Beyond the CPU, the stencil includes precise layouts for supporting chips that often require reballing during network or power failure repairs:
-
Shannon Series: Baseband/Modem ICs such as Shannon 5510 and Shannon 5511.
-
Power Management (PMIC): Dedicated sections for SM5714, S2MU106, and SPU13/14.
-
RF & Audio: Front-end modules like QPA4580 and QPA5580.
-
Memory Footprints: Standardized layouts for BGA153 and BGA254 (RAM/Storage).
Key Features & Construction
High-Precision Square Holes
Unlike cheaper stencils that use round holes, the Amaoe U-SMG4 utilizes square-etched apertures. This design allows for:
-
Easier Release: Solder paste releases more cleanly from square corners than round walls, reducing the “pull-out” effect where paste stays in the stencil.
-
Uniform Ball Height: Ensures that every solder ball formed is the exact same volume, preventing “bridging” (shorts) during the reflow process.
0.12mm Thickness Balance
The thickness of 0.12 mm is the industry “sweet spot.” If a stencil is too thin (0.10mm), it warps under heat; if it is too thick (0.15mm), the solder balls become too large and collide. This specific thickness ensures the solder balls are high enough to bridge the gap between the IC and the PCB without overflowing. Amaoe U-SMG4 BGA Reballing Stencil-Original
Anti-Bulge Material
The stencil is made from “Spring Steel.” This material has “memory,” meaning it can be heated to high temperatures (using a hot air gun at ~330°C–350°C) and return to its perfectly flat shape upon cooling. This prevents the “bulging” effect that causes solder paste to leak under the stencil during heating. Amaoe U-SMG4 BGA Reballing Stencil-Original
Usage Professional Tips
To maximize the lifespan of your original Amaoe stencil and ensure a 100% success rate:
-
Cleaning: Use 99% Isopropyl Alcohol (IPA) and a soft-bristled brush after every use. Never use a metal scraper to clean the holes, as this will burr the edges.
-
Paste Preparation: Use high-quality 183°C (Sn63/Pb37) or 138°C (Low Temp) solder paste. Ensure the paste is slightly dry (thick consistency) for better results with the 0.12mm square holes. Amaoe U-SMG4 BGA Reballing Stencil-Original
-
Heat Management: Always use a “swirling” motion with your hot air station. Do not focus heat on a single spot for more than a few seconds to avoid temporary thermal expansion of the steel.
