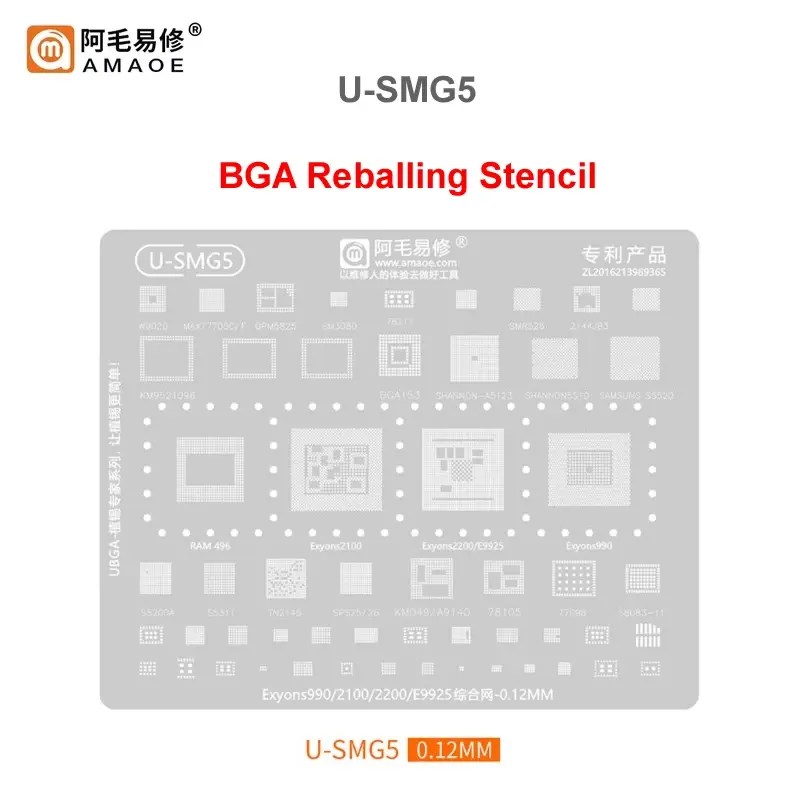

Amaoe U-SMG5 BGA Reballing Stencil-Original
High-Quality Reballing Stencil for Perfect Results
The Amaoe U-SMG5 BGA Reballing Stencil-Original is crafted for professionals seeking precision and reliability in chip repair. Designed to meet industry standards, this essential tool ensures superior performance with every use. Amaoe U-SMG5 BGA Reballing Stencil-Original
Durable Design for Repeated Use
Engineered with premium-grade materials, this stencil boasts durability and reliability. Its high-quality construction ensures it withstands repeated heating cycles, maintaining its integrity even after multiple applications. Amaoe U-SMG5 BGA Reballing Stencil-Original
Wide Compatibility with Enhanced Accuracy
Offering compatibility with a range of BGA chips, the Amaoe U-SMG5 stencil guarantees precise alignment every time. It’s the perfect partner for specialists working on intricate reballing projects requiring accuracy and care. Amaoe U-SMG5 BGA Reballing Stencil-Original
The Amaoe U-SMG5 BGA Reballing Stencil is a high-precision diagnostic and repair tool specifically engineered for high-end Samsung smartphones and Qualcomm-based chipsets. Within the professional micro-soldering community, Amaoe is recognized for its “square hole” design and heat-resistant properties, which prevent the “bubbling” or warping common in lower-quality stencils.
The U-SMG5 is primarily focused on the Samsung Galaxy S20, S21, and S22 series, providing support for the flagship Exynos processors and their accompanying power management ICs (PMICs).
Technical Specifications Table
| Feature | Specification Details |
| Product Model | Amaoe U-SMG5 (Universal Samsung/Qualcomm Series) |
| Material | High-Grade Japanese Imported Steel (Stainless/Spring Steel) |
| Thickness | 0.12mm (Ultra-thin for precision tin planting) |
| Aperture Type | Precision Laser-Cut Square Holes (Reduces solder bridging) |
| Primary Chipset Support | Exynos 990, Exynos 2100, Exynos 2200, E9925 |
| Qualcomm Support | SM6150 (Snapdragon 675), SM7150 (Snapdragon 730/730G) |
| Auxiliary IC Support | S5311, SPS25, SPS26, S5520, MAX77705C/F |
| Communication ICs | Shannon-A5123 and related RF components |
| Thermal Resistance | High-temperature resistance to prevent warping during heating |
| Weight | ~0.02kg to 0.05kg (Product only) |
| Dimensions | Standardized for handheld or magnetic base alignment (~15 x 12 cm) |
Deep Dive: Key Design Features
1. The 0.12mm Advantage
The thickness of a BGA (Ball Grid Array) stencil is critical. At 0.12mm, the U-SMG5 strikes a balance between durability and precision. If a stencil is too thick, too much solder paste is deposited, leading to “bridging” (where two solder balls melt together). If it is too thin, the stencil can warp under the heat of the hot air station. Amaoe uses a specific grade of spring steel that retains its shape even at the temperatures required to melt leaded ($183^\circ\text{C}$) or lead-free ($217^\circ\text{C}$) solder paste. Amaoe U-SMG5 BGA Reballing Stencil-Original
2. Square Hole vs. Round Hole
While many generic stencils use round holes, the Amaoe U-SMG5 features laser-cut square apertures with chamfered edges.
-
Release: Square holes allow the solder paste to release more cleanly when the stencil is lifted. Amaoe U-SMG5 BGA Reballing Stencil-Original
-
Uniformity: They ensure that every “ball” formed on the chip’s underside is exactly the same height, which is vital for a CPU containing over 1,000 connection points.
3. Comprehensive Chipset Mapping
The U-SMG5 is known as a “comprehensive” stencil because it doesn’t just cover the CPU. It includes the footprint for:
-
Application Processors (AP): Flagship Samsung chips from 2020–2022. Amaoe U-SMG5 BGA Reballing Stencil-Original
-
Power Management (PMIC): Chips like the MAX77705, which are frequently the cause of “no power” issues in Galaxy devices.
-
Baseband/RF: Critical for resolving signal and 5G connectivity issues. Amaoe U-SMG5 BGA Reballing Stencil-Original
Supported Chipsets and Models
Professional technicians use the U-SMG5 for a variety of high-stakes repairs, primarily focusing on the following hardware:
Samsung Exynos Ecosystem
-
Exynos 990: Found in the Samsung Galaxy S20 series (Global).
-
Exynos 2100: Found in the Samsung Galaxy S21 series (Global).
-
Exynos 2200: Found in the Samsung Galaxy S22 series (Global).
Qualcomm Mid-Range Support
-
SM6150 (Snapdragon 675): Common in devices like the Samsung Galaxy A70 and Redmi Note 7 Pro.
-
SM7150 (Snapdragon 730/730G): Found in the Samsung Galaxy A80 and Google Pixel 4a.
Best Practices for Using Amaoe Stencils
To ensure the longevity of the Amaoe U-SMG5 and the success of the reballing process, follow these professional guidelines:
-
Cleaning: Always clean the stencil with 99% Isopropyl Alcohol (IPA) after every use. Solder paste left in the holes will harden and ruin the precision of the next job.
-
Heat Management: When heating, move the nozzle of your hot air station in a circular motion. Avoid pointing the heat at a single spot for too long, as this is the primary cause of stencil deformation.
-
Paste Consistency: Use a “dry” solder paste (wipe the paste on a lint-free cloth to remove excess flux) for the best results with 0.12mm stencils.
-
Alignment: Use a microscope to ensure the pads on the chip are perfectly centered within the square holes of the stencil. Even a 0.01mm misalignment can cause a failed boot.
