Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro

Amaoe X200P-012 Middle Layer Reballing Stencil-Original — Specifications for Vivo X200 Pro

Below is a detailed specification presented in a Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro tabular format followed by short explanatory notes and recommended usage/handling tips. The table highlights all load-bearing product attributes you or a technician would need when selecting a middle-layer reballing stencil for the Vivo X200 Pro. Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro

Field	Specification
Product Name	Amaoe X200P-012 Middle Layer Reballing Stencil — Original
Compatible Model(s)	Vivo X200 Pro (mainboard BGA rework for primary SOC / mid-layer balls)
Stencil Type	Middle-layer (intermediate ball placement) / Reballing stencil
Material	304 stainless steel (precision-etched)
Material Thickness	0.08 mm (80 µm) — standard middle-layer thickness providing reliable paste/ball retention
Aperture Shape	Rounded square with smooth lead-in chamfer to reduce solder bridging
Aperture Size	Custom apertures per Vivo X200 Pro BGA pad layout — typical range 0.25 mm to 0.55 mm depending on pad row
Aperture Count	As per X200 Pro BGA footprint (complete pad set for SOC area)
Tolerance / Positional Accuracy	±5 µm (positional) / Aperture tolerance ±10 µm — laser/chemical etch controlled
Surface Finish	Matte finish with anti-glare microetching to help solder paste visibility
Edge Treatment	Deburred edges; reinforced frame border for flatness
Flatness / Planarity	≤ 0.05 mm deviation across usable area (ensures even stencil contact)
Frame / Holder	Flexible stainless sheet with optional reusable metal frame (sold separately or as bundle)
Recommended Solder Ball Size	0.30 mm — 0.45 mm typical (use recommended size per pad diameter)
Recommended Solder Paste / Flux	No-clean flux / SAC305 paste for soldering; water-soluble flux for cleaning if needed
Operating Temperature (during reballing)	Room temp handling; reflow temp follow solder alloy spec (e.g., peak ~245°C for SAC alloys)
Cleaning Method	Isopropyl alcohol (IPA) wipe; ultrasonic cleaning with appropriate solvent if heavily soiled
Reusability	Reusable — expected dozens to hundreds of cycles with careful handling
Durability / Lifetime	Typical lifetime depends on usage; with careful use, >100 reball cycles possible
Packaging	Anti-static protective sleeve + foam backing in cardboard box
Net Weight	~10–25 g (thin stainless sheet — actual depends on included frame)
Overall Dimensions	Approximately sized to original Vivo X200 Pro board area; exact stencil sheet size ~50–120 mm width (varies by batch)
Manufacturer / Brand	Amaoe (original)
Country of Origin	China (manufactured to Amaoe factory spec)
Model / SKU	X200P-012
Certifications	RoHS compliant (lead-free manufacturing process); CE where applicable
Included Items	1 × Amaoe X200P-012 stencil; 1 × protective film; alignment marker stickers; user note
Optional Accessories	Metal frame, holder clamps, solder ball dispenser, alignment jig (sold separately)
Storage Recommendations	Store flat in anti-static sleeve, dry environment (20–25°C, <60% RH), avoid bending
Handling Precautions	Avoid touching aperture area with bare fingers; use gloves or tweezers; avoid dropping/flexing
Warranty / Return Policy	Limited manufacturer warranty for manufacturing defects (refer to seller terms)
Special Notes	Designed specifically for the middle (intermediate) layer of BGA rework on Vivo X200 Pro mainboard; not a universal stencil

Explanatory notes & practical tips

What “middle layer” means: This stencil is intended for the intermediate or middle reballing stage where the main BGA pad array requires precise, slightly larger aperture geometry to accept solder balls or paste for a multi-layer package rework. It is neither a tacky paste stencil for fine pitch replacement nor a coarse-mount stencil — it’s optimized for Vivo X200 Pro’s BGA pad geometry. Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro
Choosing the correct solder ball/paste: Match the solder ball diameter to the aperture opening — too large and balls will sit proud or bridge; too small and contact may be poor. For many modern phone SOC pads a 0.30–0.38 mm ball size is common; consult the pad diameter and test on a sacrificial board if unsure. Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro
Alignment and flatness: Use an alignment jig or reusable metal frame to ensure the stencil sits flat and does not shift during ball placement. The listed planarity spec (≤0.05 mm) is important — if your stencil is warped, you’ll see inconsistent solder deposits. Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro
Cleaning and maintenance: After each reball cycle, remove solder residues with IPA and a soft brush or use ultrasonic cleaning if available. Avoid abrasive cleaning that can enlarge apertures. Keep the stencil in its protective sleeve when not in use. Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro
Reusability expectations: Durability depends on handling and the flux/paste used. Avoid aggressive prying; always lift the stencil straight off the board after placement to reduce aperture deformation. Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro

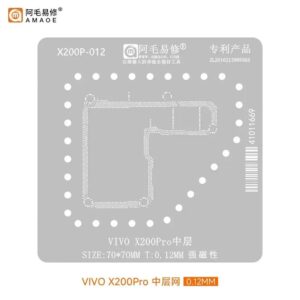

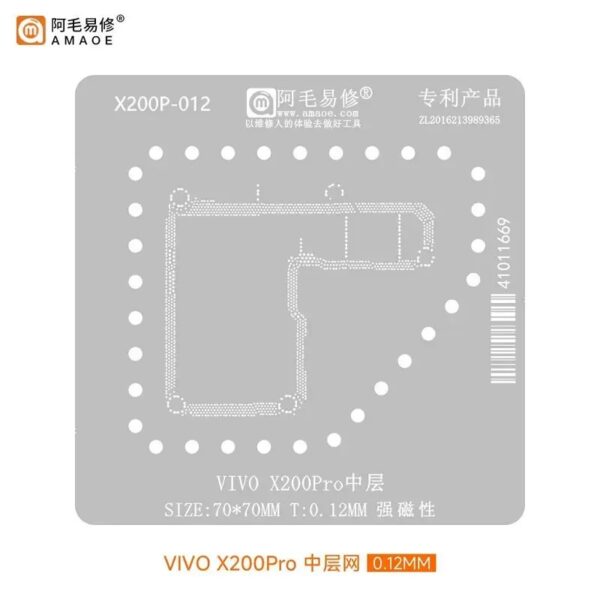

The Amaoe X200P-012 Middle Layer Reballing Stencil is a precision-engineered tool specifically designed for the professional repair and maintenance of the Vivo X200 Pro. In the world of high-end smartphone repair, particularly with modern “sandwich” motherboard designs, a high-quality stencil isn’t just a luxury—it is a necessity for a successful logic board separation and reassembly. Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro

Product Overview

The Vivo X200 Pro features a sophisticated, dual-layer PCB (Printed Circuit Board) architecture. To save space and accommodate the massive camera sensors and high-density battery technology, the motherboard is split into two halves and stacked. The Amaoe X200P-012 is the industry-standard solution for re-soldering the interconnecting “middle frame” pads that join these two layers back together after a repair.

Key Technical Specifications

Feature	Details
Model	Amaoe X200P-012
Compatibility	Vivo X200 Pro (Mainboard Middle Layer)
Material	High-Grade Japanese Imported Steel
Thickness	Ultra-thin precision gauge (approx. 0.12mm)
Hole Type	Square holes with rounded corners (Anti-drum)
Heat Resistance	High thermal stability, anti-warping

Why the Amaoe X200P-012 is Essential

When a Vivo X200 Pro suffers from dropped impacts, water damage, or CPU-related issues, technicians often need to “split” the motherboard. Once the internal components are fixed, the challenge lies in reconnecting the hundreds of tiny solder points between the top and bottom boards.

1. Precision Hole Alignment

The X200P-012 is laser-cut based on the original factory schematics of the Vivo X200 Pro. This ensures that every single solder ball aligns perfectly with the pads on the motherboard. Even a 0.01mm offset can lead to a short circuit or a “no-boot” scenario.

2. High-Quality Material Construction

Amaoe utilizes high-toughness stainless steel. This is critical because reballing involves high heat from a hot air station. Lesser stencils often “bulge” or warp when heated, causing solder paste to bleed between holes. The X200P-012 maintains its flatness under thermal stress, ensuring uniform solder ball height.

3. Square Hole Design

Unlike cheaper stencils that use circular holes, Amaoe often employs square holes with slightly rounded corners. This geometry allows for easier release of the solder paste, preventing the “sticking” effect that often ruins a reballing attempt when the stencil is lifted.

Detailed Application Scenarios

The Amaoe X200P-012 is a specialized tool used primarily for:

Sandwich Board Repair: Rejoining the upper and lower logic boards after troubleshooting internal components.
Signal Issues: Repairing broken solder joints in the middle layer that cause Wi-Fi, Bluetooth, or Cellular signal loss.
Data Recovery: Accessing the NAND or CPU on a damaged board by transferring them to a known-good board “stack.“
Thermal Management: Replacing old, oxidized solder with high-quality leaded or lead-free paste to improve conductivity and heat dissipation.

Best Practices for Using the X200P-012

To achieve a factory-level finish on the Vivo X200 Pro motherboard, follow these professional steps:

Preparation: Clean the motherboard pads thoroughly using a soldering iron and desoldering wick. Ensure the surface is flat and free of old flux. Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro
Alignment: Place the X200P-012 over the middle frame. Since this is an “Original” Amaoe stencil, the alignment pins/markings will match the board’s geometry perfectly. Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro
Solder Paste Application: Use a high-quality medium-temperature solder paste ( $183^\circ\text{C}$ is standard for middle layers). Apply it evenly across the stencil using a scraper. Amaoe X200P-012 Middle Layer Reballing Stencil-Original For Vivo X200 Pro
Heating: Use a hot air gun at approximately $280^\circ\text{C}$ to $320^\circ\text{C}$ (depending on your station’s calibration) with low airflow. Heat in a circular motion to allow the solder balls to form simultaneously.
Cooling & Cleaning: Allow the board to cool naturally before removing the stencil. Clean any residual flux with Isopropyl Alcohol (IPA).

The “Amaoe” Advantage

Amaoe has earned its reputation among master technicians (like those found in Huaqiangbei) for its “Black Stencil” series and high-precision steel. Choosing the Original X200P-012 over generic alternatives protects your investment in the Vivo X200 Pro, reducing the risk of damaging the expensive chipset or causing permanent board delamination.
