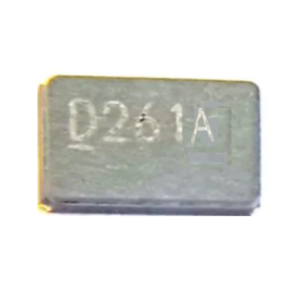

Black Crystal D261A Original Mobile Phone IC
Unleash Top-Notch Mobile Functionality with Black Crystal D261A
Experience unrivaled performance with the Black Crystal D261A Original Mobile Phone IC. Designed for precision and durability, this mobile IC enhances overall efficiency while ensuring seamless operations. Whether you’re handling day-to-day tasks or pushing your phone to its limits, this IC provides consistent support that aligns with modern mobile standards. Black Crystal D261A Original Mobile Phone IC
Premium Build and Compatibility
The Black Crystal D261A stands out for its exceptional build quality and compatibility. Perfectly engineered to fit diverse mobile phone models, this original IC promises reliable integration and supports stable and prolonged usage. With its adaptive design, it serves as a go-to solution for mobile repair needs or performance upgrades, ensuring your device functions like new.
Why Choose the Black Crystal D261A Original Mobile IC?
Investing in the Black Crystal D261A Original Mobile Phone IC comes with a range of benefits. From its finely-tuned operating capabilities to its durable structure, this product embodies excellence and reliability. It minimizes the risks of system failures and boosts device efficiency, making it an essential component for users seeking long-term satisfaction and dependability. Black Crystal D261A Original Mobile Phone IC
With sleek integration, robust performance, and unmatched compatibility, the Black Crystal D261A Original IC is the backbone your mobile phone needs for uninterrupted functionality! Black Crystal D261A Original Mobile Phone IC
The Black Crystal D261A (often stylized as D261A Crystal or Crystal Oscillator IC) is a vital timing component used extensively in mobile phone motherboards, particularly in older GSM/feature phones and specific low-power smartphone architectures. Black Crystal D261A Original Mobile Phone IC
While often referred to as a “Power IC” in some retail listings due to its proximity to power management circuits, its primary technical function is that of a High-Precision Temperature Compensated Crystal Oscillator (TCXO). Black Crystal D261A Original Mobile Phone IC
Technical Overview
The D261A belongs to a family of “Black Crystal” components (including the D267K and D261C) known for their distinctive black epoxy casing. Its primary role is to provide a stable reference frequency for the phone’s Central Processing Unit (CPU) and Radio Frequency (RF) sections. Without this precise “heartbeat,” the phone cannot synchronize with cellular networks or execute processing tasks. Black Crystal D261A Original Mobile Phone IC
Key Specifications
The following specifications are typical for the D261A variant found in mobile repair and manufacturing:
| Feature | Specification |
| Component Type | Crystal Oscillator (TCXO) / Timing IC |
| Nominal Frequency | 26.000 MHz (Industry standard for mobile RF) |
| Package Type | SMD (Surface Mount Device) |
| Pin Count | 4 Pins |
| Operating Voltage | Typically 1.8V to 2.8V |
| Output Type | Clipped Sine Wave / CMOS |
| Frequency Tolerance | ±0.5 ppm to ±2.0 ppm (at room temperature) |
| Applications | Baseband timing, RF frequency synthesis |
Functional Importance
-
Network Synchronization: In mobile communication, the D261A generates the 26 MHz reference clock. This frequency is used by the RF transceiver to “lock” onto carrier signals. If the D261A drifts or fails, the phone will display “No Service” or fail to register on the network.
-
Power Management Interface: It is frequently integrated near the Power Management Integrated Circuit (PMIC). In many designs, the PMIC regulates the voltage supplied to the D261A to ensure frequency stability even as the battery voltage drops.
-
System Heartbeat: The CPU uses the oscillations from the D261A to derive its internal clock cycles. A faulty crystal usually results in a “Dead” phone that refuses to trigger the boot sequence.
Identification and Repair
On a PCB, the D261A is easily identifiable by its small, rectangular, black metallic or ceramic body. Unlike standard silver crystals, the “Black Crystal” series is specifically designed for high-vibration and high-temperature environments common in handheld devices.
-
Symptoms of Failure: Sudden network loss, intermittent restarting, or the device failing to power on despite a healthy battery.
-
Replacement Note: These components are heat-sensitive. When replacing a D261A using a hot-air rework station, technicians typically use a temperature around 300°C – 330°C with low airflow to avoid damaging the internal quartz structure.
Compatibility
The D261A is often cross-compatible with models like the D261C or D267K, provided the base frequency (26 MHz) and footprint match. It is commonly found in Samsung feature phones (B310, B110 series) and various MediaTek (MTK) based devices.
