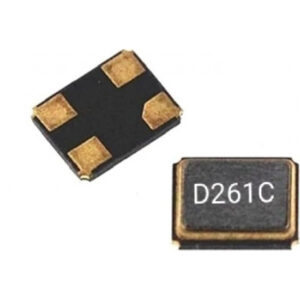

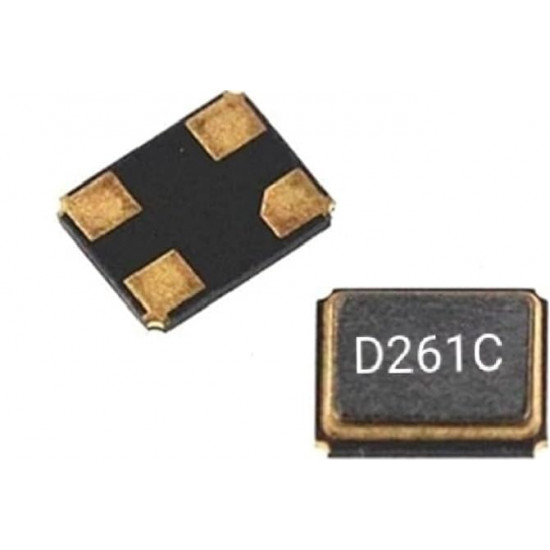

Black Crystal d261c Mobile Phone IC
Precision-Engineered Performance
The Black Crystal d261c Mobile Phone IC is an advanced integrated circuit designed to elevate the performance of your mobile devices. Crafted to meet the most demanding requirements in the mobile technology industry, this IC ensures optimal functionality and reliability, making it the go-to choice for professionals and tech enthusiasts alike. With superior engineering, it offers enhanced responsiveness and precision for a smoother user experience. Black Crystal d261c Mobile Phone IC
Unmatched Durability and Compatibility
Designed for dependable performance, the Black Crystal d261c IC stands out with its robust construction. This IC seamlessly integrates into various mobile phone architectures, delivering compatibility that reduces downtime and promotes efficiency. Its innovative design protects your device from overheating and ensures uninterrupted connectivity, even under intense usage. Experience reliability like never before with this top-notch mobile phone IC.
Cost-Effective and Eco-Friendly Solution
The Black Crystal d261c is not just a technological marvel but also an economically viable choice for device manufacturers and repair experts. Its energy-efficient design reduces power consumption, ensuring extended device battery life without compromising on performance. Additionally, crafted using eco-friendly materials, this product supports sustainable practices while meeting industry standards for quality and safety. Black Crystal d261c Mobile Phone IC
If you are searching for an IC with seamless integration, enhanced durability, and reduced environmental impact, the Black Crystal d261c Mobile Phone IC is undoubtedly the ultimate solution. Upgrade your mobile device technology with this exceptional product today!
The Black Crystal D261C is a specialized Integrated Circuit (IC) primarily utilized in mobile phone repair and manufacturing. Classified as a Crystal Oscillator or Clock IC, it plays a fundamental role in the synchronization and signal processing of a mobile device’s hardware. Black Crystal d261c Mobile Phone IC
Core Technical Specifications
The D261C is a high-precision frequency control component. While specific data sheets are often proprietary to manufacturers, its general specifications in the mobile repair industry include:
-
Frequency: Typically operates at 26.000 MHz (standard for many mobile network and baseband sections). Black Crystal d261c Mobile Phone IC
-
Package Type: SMD (Surface Mount Device), usually featuring a 4-pin configuration for easy integration onto high-density PCBs. Black Crystal d261c Mobile Phone IC
-
Function: Serves as a Master Clock or Network Crystal, providing the timing pulses required for the radio frequency (RF) transceiver and CPU to communicate. Black Crystal d261c Mobile Phone IC
-
Operating Voltage: Low-voltage compatible, generally designed for modern mobile power rails (typically between 1.8V and 3.3V). Black Crystal d261c Mobile Phone IC
-
Durability: Manufactured with high-precision materials to ensure thermal stability, preventing frequency drift during the heat generated by intensive processing or charging. Black Crystal d261c Mobile Phone IC
Primary Functions in Mobile Hardware
The “Black Crystal” nomenclature often refers to its external physical appearance (a black-coated or ceramic-topped component). In a smartphone, it handles two critical tasks:
1. Network Signal Processing
The D261C is frequently located near the RF Transceiver (WTR IC). It generates the reference frequency that allows the phone to “lock” onto cellular bands (GSM, LTE, 5G). If this IC fails, the phone will typically show “No Service” or “Searching,” as the device can no longer synchronize with the carrier’s signal frequency.
2. System Clock Generation
Every operation in a smartphone requires a heartbeat. The D261C provides the stable timing signals that coordinate the flow of data between the processor, memory, and power management units. Without this pulse, the phone may fail to boot (stuck in a “dead” state).
Common Replacement & Repair Use Cases
Because this IC is a physical crystal, it is sensitive to physical impact (drops) and liquid damage. Technicians often replace the D261C when a device exhibits:
-
Network Failure: Inability to find a signal even with a known good SIM card.
-
Dead Boot: The phone shows no sign of life and does not respond to power-on commands, often due to a missing clock signal.
-
Frequency Drift: Issues with Bluetooth or Wi-Fi connectivity stability.
Installation Requirements
Since it is a BGA/SMD component, replacement requires a hot air rework station and precision tweezers. It must be soldered at specific temperature profiles—usually between 300°C and 350°C—to ensure the solder melts without damaging the internal quartz structure of the crystal.
