Black Crystal D267K Mobile Phone IC

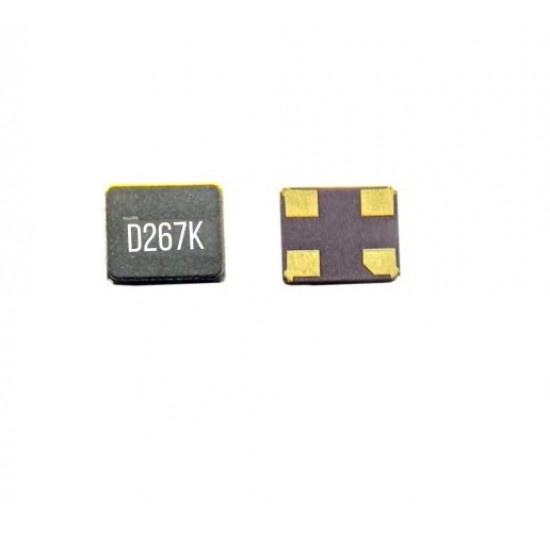

The Black Crystal D267K Mobile Phone IC is a cutting-edge solution designed to enhance the performance and efficiency of mobile devices. Whether you’re an electronics professional or a tech enthusiast, this advanced IC is engineered to deliver seamless integration, extraordinary reliability, and peak functionality for your smartphone’s circuit board. Black Crystal D267K Mobile Phone IC
Powerful Performance
The Black Crystal D267K boasts outstanding operational capabilities, ensuring your mobile phone operates at its full potential. Designed with modern technology, this IC guarantees enhanced data processing, lower power consumption, and thermal stability, making it perfect for energy-efficient devices. With its robust build, it maintains excellent performance even under heavy usage.
Unmatched Reliability
When it comes to reliability, the Black Crystal D267K sets a high standard. It is built to meet stringent quality standards, ensuring long-term durability and consistent performance. Optimal for applications in various smartphone models, this IC supports high compatibility and synchronizes efficiently with other components, significantly extending the device’s lifecycle.
Easy Integration
Featuring a compact design and optimized architecture, the Black Crystal D267K is ideal for professionals seeking effortless incorporation into mobile phones. Its straightforward installation makes it a preferred choice for manufacturers and engineers looking for efficiency and time-saving solutions. The IC simplifies the assembly process without compromising functionality or reliability. Black Crystal D267K Mobile Phone IC
Whether you’re replacing an existing part or creating a brand-new circuit for a custom smartphone, the Black Crystal D267K Mobile Phone IC is your trusted partner for outstanding performance. Delivering a unique blend of advanced technology and superior build quality, this product is an essential component for ensuring your mobile devices operate flawlessly. Experience the next level of performance and longevity with the Black Crystal D267K today! Black Crystal D267K Mobile Phone IC
The Black Crystal D267K is a specialized precision component primarily used in the network circuitry of mobile phones. While often referred to in the repair industry as a “Black Crystal IC,” it is technically a TCXO (Temperature Compensated Crystal Oscillator) or a high-precision resonator. Black Crystal D267K Mobile Phone IC
Its primary job is to generate a stable, high-frequency clock signal (typically 26 MHz) that the phone’s radio frequency (RF) transceiver uses to synchronize with cellular networks. Without this precise timing, the phone cannot lock onto a signal or maintain a stable call. Black Crystal D267K Mobile Phone IC
1. Functional Overview
The D267K is vital for the Network Section of a smartphone. In radio communication, frequency accuracy is everything. Even a tiny drift in frequency—caused by the phone getting hot or cold—can result in the device losing its connection to the cell tower. Black Crystal D267K Mobile Phone IC
-
Frequency Generation: It provides the base reference frequency (usually 26.000 MHz) for the RF local oscillator.
-
Temperature Compensation: The “Black Crystal” design often implies a specific coating or casing that helps the component maintain stability despite the internal heat generated by the phone’s processor and power amplifiers.
-
Synchronization: It ensures that the “time slots” used in 2G, 3G, and 4G communication are perfectly aligned between the handset and the base station.
2. Key Specifications
While this is a passive-style component rather than a logic processor, its technical specs are rigid:
-
Frequency: 26 MHz (Industry Standard for mobile RF).
-
Physical Form: 4-pin SMD (Surface Mount Device) package.
-
Compatibility: Widely used in Samsung feature phones (like B110, B310, E1200Y) and various entry-level Android devices.
-
Material: Encapsulated in a specialized black resin or ceramic housing to shield it from electrical noise and environmental changes.
3. Common Symptoms of Failure
The D267K is sensitive to physical shocks (drops) and liquid damage. If this component fails, the phone’s network capabilities will break down entirely. Common signs include:
-
“No Service” / “Searching”: The phone cannot “find” the network because its internal timing is off-frequency.
-
Emergency Calls Only: The phone might see the network but cannot complete the “handshake” to register the SIM card.
-
Network Fluctuations: The signal bars go up and down rapidly even when you are standing still.
-
Dead Phone (Rare): In some older architectures, if the system clock (which can be derived from the network crystal) fails, the CPU might not boot, though this is less common than simple network failure.
4. Technical Repair Note
Replacing the D267K requires a hot air rework station. Unlike a standard IC with many legs, this has four pads underneath.
-
Orientation is Critical: Even though it looks like a simple block, it must be soldered in the correct orientation.
-
Heat Sensitivity: Excessive heat during soldering can “crack” the internal quartz crystal. Technicians usually use a temperature of around 330°C to 350°C for a quick installation to avoid damaging the delicate internal resonator.
5. Why the name “Black Crystal”?
In the market, crystals are usually silver-capped (metal). The “Black Crystal” designation refers to the specific black ceramic or epoxy-coated variant used by manufacturers like Samsung to improve durability and reduce interference.
