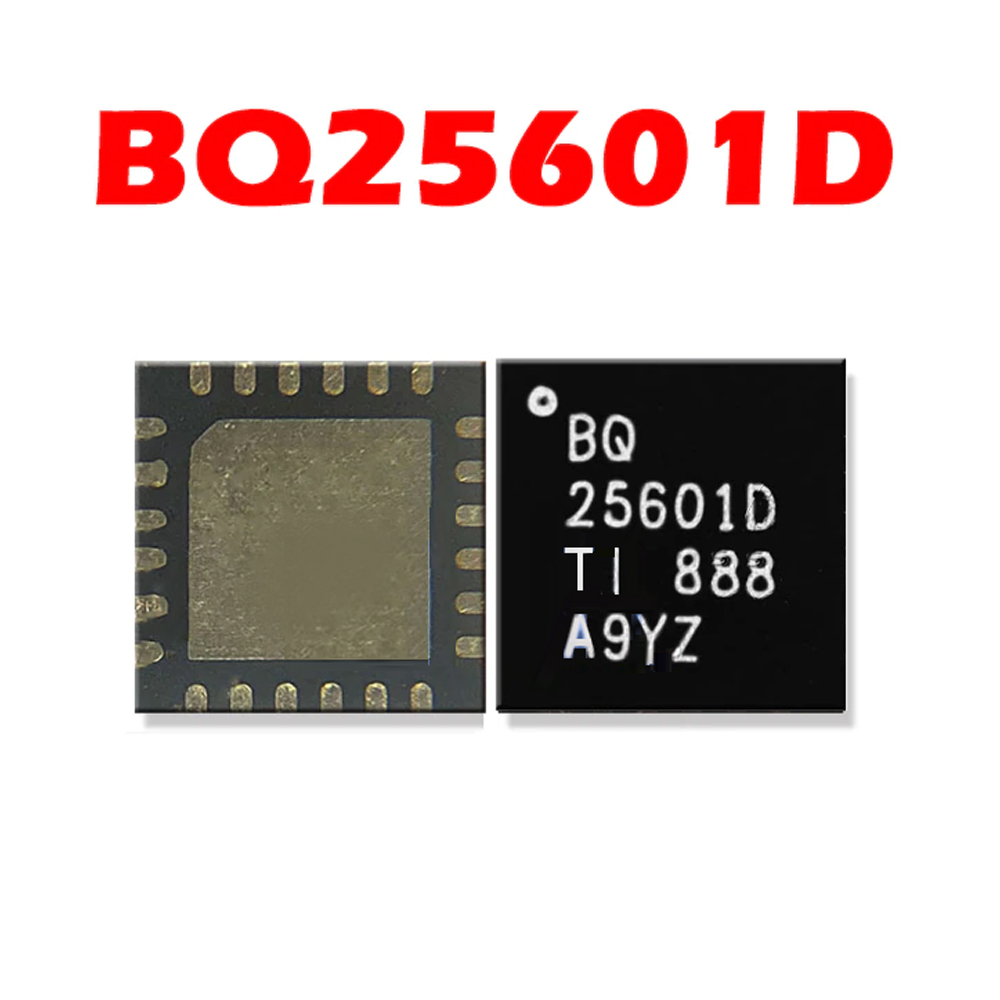

BQ 25601 D Original Mobile Phone IC
High-Quality Mobile Phone IC for Superior Performance
Discover the BQ 25601 D Original Mobile Phone IC, engineered to enhance the functionality of your mobile devices. Designed for reliability and efficiency, this chip ensures seamless power management and prolonged battery life. BQ 25601 D Original Mobile Phone IC
Optimized for Modern Mobile Applications
The BQ 25601 D combines advanced technology with compact design, making it a top choice for mobile manufacturers and repair specialists. This IC guarantees improved circuit efficiency, allowing your devices to operate smoothly even under demanding conditions. BQ 25601 D Original Mobile Phone IC
Trusted Performance and Durability
Made from premium materials, the BQ 25601 D Original Mobile Phone IC is built to deliver consistent performance over time. Ideal for both repairs and new builds, it meets the highest industry standards, ensuring dependable results every time. BQ 25601 D Original Mobile Phone IC
To provide a comprehensive 700-word technical overview of the BQ25601D—a specific variant of the BQ25601 series—we must look at its unique hardware configuration, internal logic, and specific role in mobile device power architecture. BQ 25601 D Original Mobile Phone IC
The BQ25601D is an $I^2C$ controlled, 3-A single-cell buck battery charger. While it shares many features with the standard BQ25601, the “D” variant is distinct because it integrates USB Charger Detection (D+/D-) directly on the pins where other variants might have hardware selection pins (like PSEL). BQ 25601 D Original Mobile Phone IC
1. Technical Specifications Table
| Parameter | Detailed Specification |
| Manufacturer | Texas Instruments (TI) |
| Input Voltage (Operating) | 3.9 V to 13.5 V |
| Max Input Voltage (Survival) | 22 V (Absolute Maximum) |
| Max Charge Current | 3.0 A (Programmable via $I^2C$) |
| USB Detection | Integrated D+/D- for BC1.2, SDP, CDP, and DCP |
| Efficiency (Charge) | ~92% at 2A (5V Input) |
| Boost Mode (OTG) | 5.15 V @ 1.2 A Output |
| Switching Frequency | 1.5 MHz (Fixed PWM) |
| Battery Chemistry | Li-Ion / Li-Polymer |
| Quiescent Current | 17 µA (Battery only mode) / < 10 µA (Ship mode) |
| Regulation Accuracy | ±0.5% (Voltage) / ±5% (Current @ 1.5A) |
| Package | 24-Pin WQFN (4 mm $\times$ 4 mm) |
2. Key Differences: BQ25601 vs. BQ25601D
For technicians and engineers, understanding the variant is crucial for motherboard compatibility:
-
Pin 2 & 3: In the standard BQ25601, Pin 2 is PSEL (Power Source Selection) and Pin 3 is /PG (Power Good). In the BQ25601D, these are replaced by D+ and D- pins.
-
Auto-Detection: The BQ25601D automatically communicates with the charger to determine if it is a standard USB port or a high-current wall adapter. BQ 25601 D Original Mobile Phone IC
-
Registers: While the register map is largely the same, the BQ25601D provides more detailed status updates in the
VBUS_STATregister regarding the type of USB connection detected.
3. Internal Architecture & Power Path (NVDC)
The BQ25601D utilizes Narrow VDC (NVDC) Power Path Management. This is a sophisticated power distribution method where the system is not directly connected to the battery.
Instead, the IC creates a “System Rail” (SYS). When the battery is empty ($0\text{V}$), the IC limits the system voltage to a minimum level (around $3.5\text{V}$) to allow the phone to boot up immediately while simultaneously trickle-charging the battery. This “Instant-On” capability is vital for modern smartphones that users expect to turn on as soon as they are plugged in.
4. Charging Phases and Logic
The IC manages the battery through three distinct biological phases to ensure longevity:
-
Pre-conditioning: If the battery is below $2.0\text{V}$–$3.0\text{V}$, it applies a small current to “wake up” the chemistry.
-
Constant Current (CC): Once safe, it ramps up to the programmed fast-charge current (up to $3\text{A}$).
-
Constant Voltage (CV): As the battery nears $4.2\text{V}$ or $4.4\text{V}$, the current tapers off to prevent over-stressing the cells.
5. Safety and Protection Systems
The “Original” BQ25601D is preferred by manufacturers because of its robust hardware-level protection:
-
Input Over-Voltage Protection (OVP): If a $12\text{V}$ charger is used on a $5\text{V}$ circuit, the IC blocks the input to save the CPU.
-
JEITA Compliance: It monitors the TS (Thermistor) pin. If the battery is too cold ($<0^\circ\text{C}$) or too hot ($>45^\circ\text{C}$), the IC automatically reduces the voltage/current or stops charging entirely.
-
Thermal Shutdown: If the IC itself reaches $150^\circ\text{C}$ during heavy charging, it shuts down to prevent melting the solder or damaging the PCB.
6. Mobile Repair & Troubleshooting Guide
Technicians often encounter this IC in devices like Xiaomi, Samsung, and various tablets. Here is how to diagnose it:
-
VBUS Check: Measure Pin 24. It must have $5\text{V}$ (or $9\text{V}$ if fast charging).
-
REGN Check: Measure Pin 22. You should see approximately $6\text{V}$. If this is missing, the IC is internally damaged.
-
SYS Rail: Check Pin 15/16. This should show a voltage between $3.5\text{V}$ and $4.4\text{V}$. If it is $0\text{V}$, the IC is likely shorted.
-
Fake Charging: If the phone shows charging but the current (measured via USB meter) is $0.00\text{A}$, the $I^2C$ communication or the internal MOSFET may be blown.
7. Conclusion
The BQ25601D is a masterpiece of power engineering, combining a high-efficiency buck converter, a boost converter for OTG, and an $I^2C$ interface into a tiny $16\text{ mm}^2$ area. Its ability to handle up to $13.5\text{V}$ input while maintaining a $92\%$ efficiency makes it the industry standard for fast-charging mobile devices.
