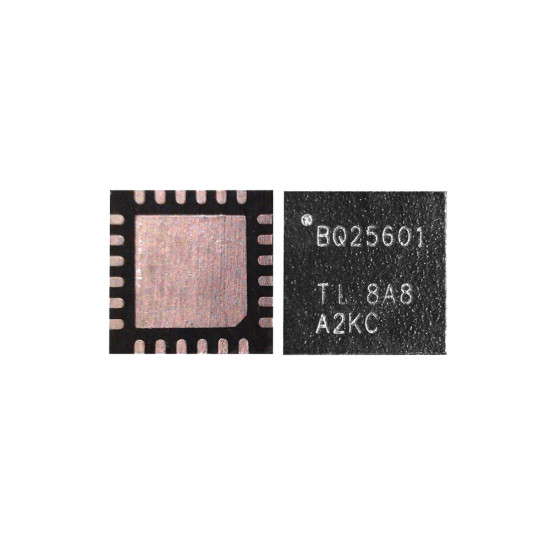

BQ 25601 Mobile Phone IC
Efficient Power Management in Compact Designs
The BQ 25601 Mobile Phone IC delivers unmatched efficiency, making it an essential component for modern-day mobile electronics. Designed to optimize power management, this IC ensures reliable performance across a range of devices, saving energy while maintaining top-notch functionality. BQ 25601 Mobile Phone IC
Advanced Features for Seamless Integration
With its advanced architecture, the BQ 25601 supports high-speed charging and intelligent thermal management. This versatile component is tailored to integrate seamlessly into compact gadgets, enhancing both operational efficiency and customer satisfaction with your product. BQ 25601 Mobile Phone IC
Designed for Reliability and Durability
Manufactured to perform in demanding conditions, the BQ 25601 IC ensures long-lasting reliability in mobile phones and compact electronic devices. Its cutting-edge design and quality build make it a trusted choice for achieving consistent performance. BQ 25601 Mobile Phone IC
The BQ25601 is a highly integrated 3-A switch-mode battery charge management and system power path management device. It is designed specifically for single-cell Li-ion and Li-polymer batteries, making it a staple in modern smartphones, tablets, and portable IoT devices. BQ 25601 Mobile Phone IC
Below is the comprehensive technical breakdown and specifications for the BQ25601 IC. BQ 25601 Mobile Phone IC
Technical Specifications Table
| Parameter | Specification Details |
| Manufacturer | Texas Instruments (TI) |
| Function | $I^2C$ Controlled Single-Cell Buck Battery Charger |
| Battery Chemistry | Li-Ion / Li-Polymer |
| Input Voltage Range | 3.9 V to 13.5 V (Operating) |
| Max Input Voltage | 22 V (Absolute Maximum) |
| Max Charge Current | 3.0 A |
| Switching Frequency | 1.5 MHz |
| Efficiency | ~92% (at 2A from 5V input) |
| OTG Output | 5.15 V @ 1.2 A (Boost Mode) |
| Regulation Accuracy | ±0.5% (Voltage) / ±5% (Current @ 1.5A) |
| Quiescent Current | < 10 µA (Ship Mode) / 17 µA (Battery Only) |
| Package Type | 24-pin WQFN ($4.0 \text{ mm} \times 4.0 \text{ mm}$) |
Key Pinout & Functionality
The BQ25601 features a 24-pin configuration. Below are the most critical pins used during mobile phone troubleshooting:
-
VBUS (Pin 24): The primary input power source (from the USB/Charger).
-
SW (Pins 20, 21): The switching node connected to the inductor for buck/boost operations.
-
SYS (Pins 15, 16): The system output voltage supply node.
-
BAT (Pins 13, 14): Connection to the positive terminal of the battery.
-
REGN (Pin 22): Internal LDO output (usually $6\text{V}$) for driving internal gates.
-
SCL/SDA (Pins 5, 6): $I^2C$ interface for the host processor to communicate charging parameters.
-
OTG (Pin 7): Enables On-The-Go mode to power external USB devices from the phone’s battery.
Core Features and Operation
1. Narrow VDC (NVDC) Power Path
One of the BQ25601’s standout features is its NVDC management. This allows the device to power the system immediately upon plugging in a charger, even if the battery is completely “dead” or missing. It prioritizes the system load over the battery charging current to ensure the device remains operational under low-input power conditions.
2. $I^2C$ Programmability
Unlike older “dumb” charging ICs, the BQ25601 is fully customizable via software. Manufacturers can program:
-
Input Current Limit: To prevent overloading weak chargers ($100\text{ mA}$ to $3.2\text{ A}$).
-
Charge Voltage: Typically set to $4.2\text{ V}$ or $4.4\text{ V}$ depending on the battery cell.
-
Fast Charge Current: Sets how quickly the phone “juice” up during the CC (Constant Current) phase.
3. Integrated Protections
To prevent mobile phone fires or battery degradation, the IC includes:
-
Thermal Regulation: Automatically reduces charge current if the IC die temperature exceeds $120^\circ\text{C}$.
-
JEITA Profile Support: Monitors battery temperature via an external NTC thermistor (TS pin) to adjust charging in hot or cold environments.
-
Input Over-Voltage Protection (OVP): Protects the phone if a faulty $12\text{V}$ or $20\text{V}$ adapter is plugged in.
Common Use Cases in Mobile Repair
In the repair industry, technicians often replace this IC when a phone exhibits “Fake Charging” (showing the lightning bolt but not gaining percentage), failing to detect a USB cable, or getting excessively hot near the power management section. It is widely found in Xiaomi (Redmi), Huawei, and Samsung mid-range devices. BQ 25601 Mobile Phone IC
The NVDC (Narrow VDC) Power Path
Unlike traditional chargers, the BQ25601 uses NVDC architecture. This means the system is regulated at a voltage slightly above the battery voltage but no lower than the minimum system voltage. Even if the battery is missing or deeply discharged ($0\text{V}$), the system can still start up immediately when the charger is plugged in. This is why modern smartphones can show a “0%” logo instantly rather than waiting for the battery to gain a base charge. BQ 25601 Mobile Phone IC
