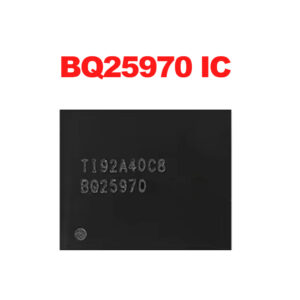

BQ 25970 Mobile Phone IC
Unmatched Power Management for Mobile Devices
The BQ 25970 Mobile Phone IC is your go-to solution for efficient power management. Designed to deliver reliable performance, this chip ensures your mobile devices operate seamlessly with optimized energy usage.
Compact and Robust Design
This power-charging IC offers a compact design without compromising durability. It’s tailored for smartphones, tablets, and other mobile devices, making it the perfect choice for modern gadgets demanding high energy efficiency in a smaller form factor. BQ 25970 Mobile Phone IC
Why Choose the BQ 25970 Mobile Phone IC?
The BQ 25970 stands out for its unparalleled reliability and efficient design. Whether you’re a tech manufacturer or a repair specialist, this IC is engineered to provide consistent power delivery and enhance the overall lifespan of your devices. Choose this IC for an advanced, hassle-free power management experience. BQ 25970 Mobile Phone IC
The BQ25970 is a specialized, high-performance battery charging IC designed by Texas Instruments. It is a “Switched Cap” charger, which is fundamentally different from the standard buck-converters like the BQ25601. It is primarily found in high-end flagship and 5G smartphones (such as Vivo, Oppo, and Xiaomi models) to enable ultra-fast charging speeds (up to 50W–65W) while keeping the device cool. BQ 25970 Mobile Phone IC
Below is the detailed technical specification and analysis for the BQ25970. BQ 25970 Mobile Phone IC
Technical Specifications Table
| Feature | Specification Details |
| Manufacturer | Texas Instruments (TI) |
| Topology | Switched Cap (Charge Pump) Architecture |
| Charge Current | Up to 8.0 A (Continuous) |
| Efficiency | 97% at 8-A Fast Charge |
| Input Voltage ($V_{IN}$) | 3.5 V to 12 V (Operating) |
| Max Input Voltage | 22 V (Absolute Maximum) |
| Output Voltage Range | 3.5 V to 4.65 V (2:1 Step-down ratio) |
| Duty Cycle | Fixed 50% Switched Cap Operation |
| Interface | $I^2C$ Controlled (Standard & Fast Mode) |
| ADC Resolution | 12-bit (Monitors Voltage, Current, & Temp) |
| Package | 56-pin DSBGA ($3.0 \text{ mm} \times 3.2 \text{ mm}$) |
| Operating Temp | $-40^\circ\text{C}$ to $85^\circ\text{C}$ |
1. Advanced Architecture: The Switched Cap Principle
The BQ25970 is not a standalone charger; it is a Fast Charge “Accelerator.” In a standard charger, the input current and the battery current are roughly equal. In the BQ25970, the 2:1 Switched Cap architecture allows the cable to carry only half the current that actually goes into the battery.
-
Input: $10\text{V}$ @ $4\text{A}$ from the wall adapter. BQ 25970 Mobile Phone IC
-
Output: $5\text{V}$ @ $8\text{A}$ to the battery. BQ 25970 Mobile Phone IC
Because the cable current is halved, power loss (which follows $P = I^2R$) is reduced by 75%. This prevents the charging cable and the phone’s connector from melting during ultra-fast charging sessions. BQ 25970 Mobile Phone IC
2. Integrated ADC for Precision Monitoring
This IC features a high-precision 12-bit Analog-to-Digital Converter (ADC). In modern smartphones, safety is paramount. The BQ25970 constantly reports the following data to the phone’s CPU:
-
Bus Voltage/Current: Ensures the wall adapter is providing clean power.
-
Battery Voltage/Current: Essential for the CC (Constant Current) and CV (Constant Voltage) stages.
-
Die Temperature: The IC will self-throttle if it detects it is getting too hot.
-
Connector Temperature: Uses external thermistors to detect if the USB port is overheating due to moisture or dust.
3. Comprehensive Protection Suite
To manage 8A of current safely, the BQ25970 includes several hardware-level safeguards:
-
Over-Voltage Protection (OVP): Shuts down if the input exceeds safe limits (up to $22\text{V}$).
-
Over-Current Protection (OCP): Adjustable alarms for both input (BUS) and output (BAT).
-
Cycle-by-Cycle Current Limit: The switching MOSFETs are monitored every cycle to prevent spikes.
-
Differential Sensing: Uses Kelvin sensing to measure battery voltage accurately, avoiding errors caused by PCB trace resistance.
4. Typical Application Circuitry
The BQ25970 is almost always used in a Parallel Charging configuration.
-
Main Charger (e.g., BQ2589x): Handles the initial “Trickle Charge” and “Pre-charge” when the battery is very low.
-
BQ25970 (Flash Charger): Kicks in once the battery reaches a safe voltage level to provide the “Turbo” or “Flash” charge boost.
Pinout Highlights for Repair:
-
VBUS: Input power from the charger.
-
VOUT: The stepped-down output voltage.
-
CP (Charge Pump Pins): Connects to the flying capacitors ($C_{FLY}$) which are critical for the energy transfer. If these caps are cracked, the IC will fail to charge.
-
SDA/SCL: If these lines are open, the phone will usually show a “Charging Error” or “Battery Temperature High/Low” message.
5. Troubleshooting & Repair Symptoms
In the mobile repair world, the BQ25970 is commonly replaced in models like the Vivo X27, Nex, and Xiaomi Mi Note 10.
-
Slow Charging: If the IC fails, the phone might fall back to the “Main” slow charger, taking 4–5 hours to charge instead of 45 minutes.
-
Device Restarting: A short in the BQ25970 can pull down the main power rail, causing the phone to boot-loop.
-
Fast Charge “Flicker”: If the fast charge icon appears and disappears, it often indicates a failure in the $C_{FLY}$ capacitors or the IC’s internal MOSFETs.
Conclusion
The BQ25970 represents the peak of mobile power management. By using a 50% duty cycle switched-cap design, it achieves 97% efficiency, which is significantly higher than the 88–92% efficiency of standard chargers. This 5% difference is what allows a phone to charge at $40\text{W}+$ without becoming dangerously hot to the touch.
