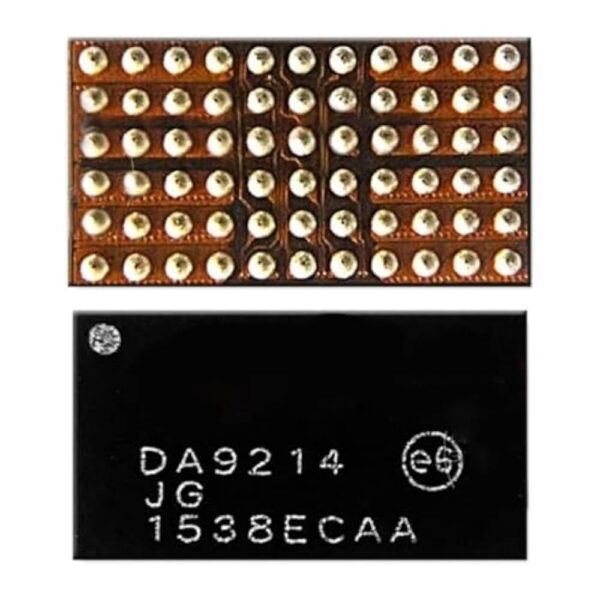

DA9214 ORIGINAL Mobile Phone IC
Upgrade Your Mobile Device with the DA9214 ORIGINAL IC
The DA9214 ORIGINAL Mobile Phone IC is a premium component designed to enhance the performance and efficiency of your mobile devices. Engineered with precision, this IC ensures optimal functionality for a seamless experience. DA9214 ORIGINAL Mobile Phone IC
Why Choose the DA9214 ORIGINAL Mobile Phone IC?
Our mobile phone IC stands out due to its robust performance, reliability, and compatibility with a wide range of devices. Perfect for both repairs and upgrades, it guarantees improved device efficiency while maintaining durability.
Built for Excellence
With the DA9214 ORIGINAL IC, you’re investing in quality. Whether you are a professional technician or a hobbyist, this IC meets your needs with its superior design and long-lasting performance.
The DA9214 is a high-performance Power Management Integrated Circuit (PMIC) originally developed by Dialog Semiconductor (now a part of Renesas Electronics). It is a synchronous dual step-down (buck) converter specifically designed to provide high-current power rails for multicore application processors and GPUs in high-end smartphones, tablets, and mobile computing devices.
Below is the comprehensive technical specification in a tabular format, followed by a detailed breakdown of its features and applications.
Technical Specifications Table
| Feature / Parameter | Specification Details |
| Manufacturer | Renesas Electronics (formerly Dialog Semiconductor) |
| Model Number | DA9214 / DA9214-A |
| Type | Synchronous Dual Step-Down (Buck) Converter |
| Input Voltage Range | $2.8\text{ V}$ to $5.5\text{ V}$ |
| Output Voltage Range | $0.3\text{ V}$ to $1.57\text{ V}$ (Programmable via I2C/SPI) |
| Extended Output Range | Up to $4.3\text{ V}$ (via external resistor divider) |
| Number of Channels | 2 Independent Channels (Dual-Phase) |
| Maximum Output Current | $2 \times 10\text{ A}$ (Total $20\text{ A}$ capability) |
| Switching Frequency | $3.0\text{ MHz}$ (Nominal) |
| Static Accuracy | $\pm 1\%$ |
| Dynamic Accuracy | $\pm 3\%$ |
| Communication Interface | I2C and SPI compatible |
| Operating Temperature | $-40\text{°C}$ to $+85\text{°C}$ (Standard) / up to $+105\text{°C}$ (Automotive) |
| Package Type | 66-ball WLCSP ($0.4\text{ mm}$ pitch) or VFBGA ($0.5\text{ mm}$ pitch) |
| Height | $< 1.0\text{ mm}$ (Low profile) |
| Protection Features | Over-temperature, Over-current, Under-voltage lockout |
Key Features and Functional Breakdown
1. High-Efficiency Power Delivery
The DA9214 uses a multiphase topology which allows it to deliver extremely high currents (up to $20\text{ A}$) while maintaining a very small physical footprint. This is essential for modern mobile processors (like the ARM Cortex-A15/A57/A72 series) that require massive bursts of power for gaming, 4K video recording, and AI processing. DA9214 ORIGINAL Mobile Phone IC
2. Dynamic Voltage Control (DVC)
The IC supports Dynamic Voltage Control, allowing the smartphone’s software to adjust the CPU or GPU voltage on the fly. By lowering the voltage when the processor is idle and raising it during heavy tasks, the DA9214 significantly extends battery life and reduces heat generation. DA9214 ORIGINAL Mobile Phone IC
3. Automatic Phase Shedding
To optimize efficiency across all load conditions, the IC features Automatic Phase Shedding. When the phone is in a low-power state (e.g., standby), the IC shuts down unused phases to minimize energy waste. As demand increases, it instantly reactivates phases to maintain stability. DA9214 ORIGINAL Mobile Phone IC
4. Low Profile Design
Space is at a premium in modern smartphones. The DA9214 is designed to work with ultra-low-profile inductors ($1\text{ mm}$ height or less). Its high switching frequency ($3\text{ MHz}$) allows for smaller external capacitors and inductors, saving valuable PCB space.
Common Applications
-
Flagship Smartphones: Powering the primary SoC (System on Chip) and Graphics units.
-
High-End Tablets: Managing power for large displays and powerful mobile chips.
-
Automotive Infotainment: The automotive-grade variant (DA9214-A) is used in navigation and dashboard systems.
-
Ultrabooks: Providing regulated rails for low-power mobile computing.
Repair and Maintenance Note
In the mobile repair industry, the DA9214 is often identified as a “Power IC.” If a device fails to turn on, experiences sudden “gray screens,” or has a shorted VCore rail, this IC is frequently the culprit. Because it uses a BGA (Ball Grid Array) package, replacement requires professional microsoldering equipment (hot air station) and “reballing” expertise.
